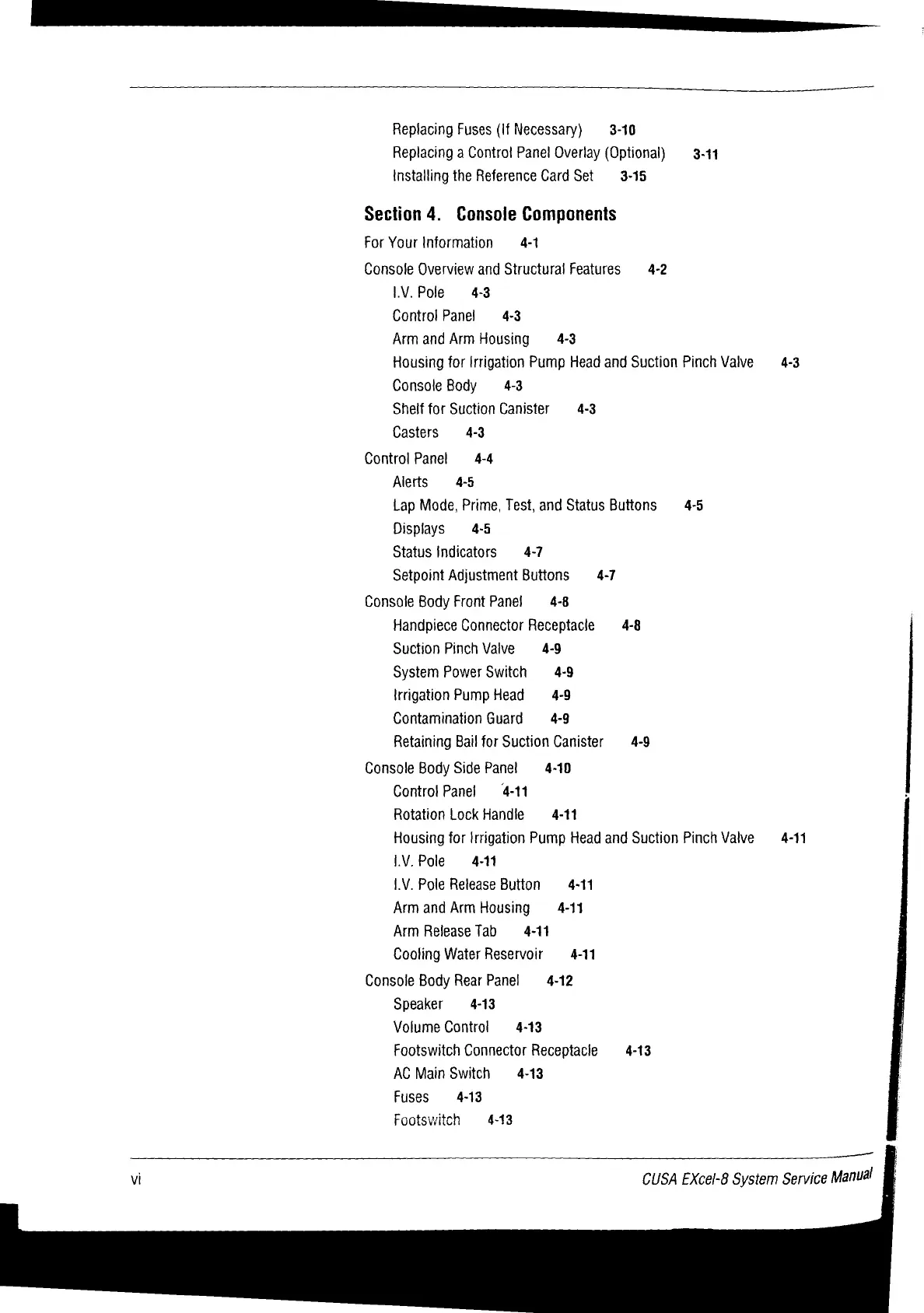

Valleylab CUSA EXcel-8 - Page 6

K
Replacing Fuses (lf Necessary) 3-10
Replacing a Control Panel Overlay (Optional) 3-11
installing the Reference Card Set 3-15
Section 4. Console Components
For Your Information 4-1
Console Overview and Structural Features 4-2
LV,
Pole 4-3
Control Panel 4-3
Arm and Arm Housing 4-3
Housing for Irrigation Pump Head and Suction Pinch Valve 4-3
Console Body 4-3
Shelf for Suction Canister 4-3
Casters 4-3
Control Panel 4-4
Alerts 4-5
Lap Mode, Prime, Test, and Status Buttons 4-5
Displays 4-5
Status Indicators 4-7
Setpoint Adjustment Buttons 4-7
Console Body Front Panel 4-8
Handpiece Connector Receptacle 4-8
Suction Pinch Valve 4-9
System Power Switch 4-9
Irrigation Pump Head 4-9
Contamination Guard 4-9
Retaining Bail for Suction Canister 4-9
Console Body Side Panel 4-10
Control Panel 4-11
Rotation Lock Handle 4-11
Housing for Irrigation Pump Head and Suction Pinch Valve = 4-11
LV. Pole 4-11
1.V. Pole Release Button 4-11
Arm and Arm Housing 4-11
Arm Release Tab 4-11
Cooling Water Reservoir 4-11
Console Body Rear Panel 4-12
Speaker 4-13
Volume Control 4-13
Footswitch Connector Receptacle 4-13
AC Main Switch 4-13
Fuses 4-13
Footswitch 4-13
