Vertical Express ICON 32 - Page 22

Selector Tape Installation Section
©Vertical Express 1-18 Printed in USA April 2020
Formed Rail Selector Tape

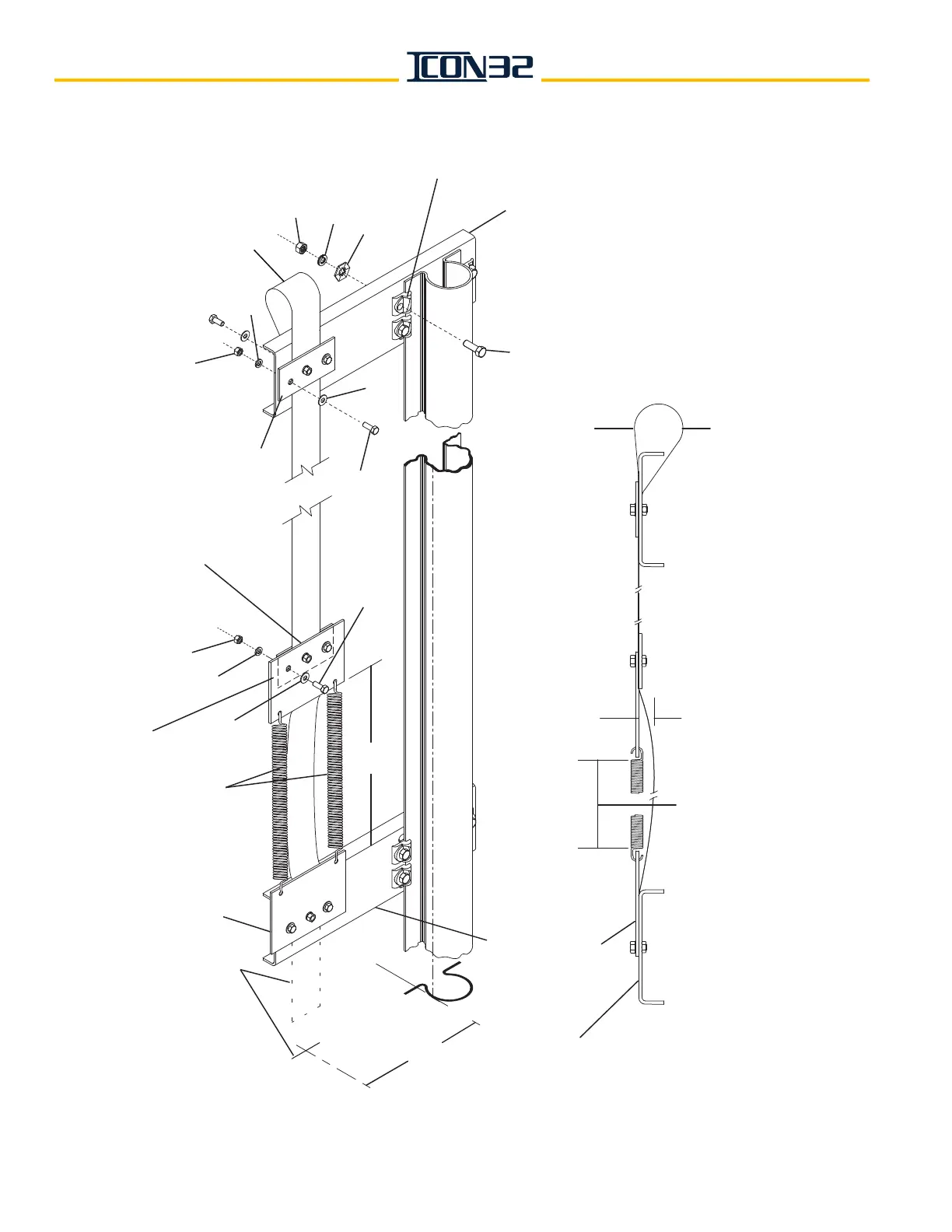

Figure 13 - Formed Rail Selector Tape Installation
Selector Tape
Selector Tape Springs
*springs MUST extend
to 1½ times original size.
Spring Plate
Tape Plate
Spring Plate
18½"
Loop the Tape
Extend to 1½ times
original size, appx. 15¼"
6" Minimum
Cut the Selector Tape flush
with the Spring Plate.
Bow Dimension, 1" – 2"
Selector Tape
Support Bracket
Tape Plate
8½"
д" × 1"
Selector Tape
Support Bracket
д" × 1"
дΗ
дΗ
дΗ
дΗ
дΗ
дΗ
½" × 1½"
½"
½"
½"
Forged Rail Clip, 8#
