INSTALLATION
Vertical Express Product Manual 1-19 88600 v.1.0
Installation Section Selector Tape
T-Rail Selector Tape

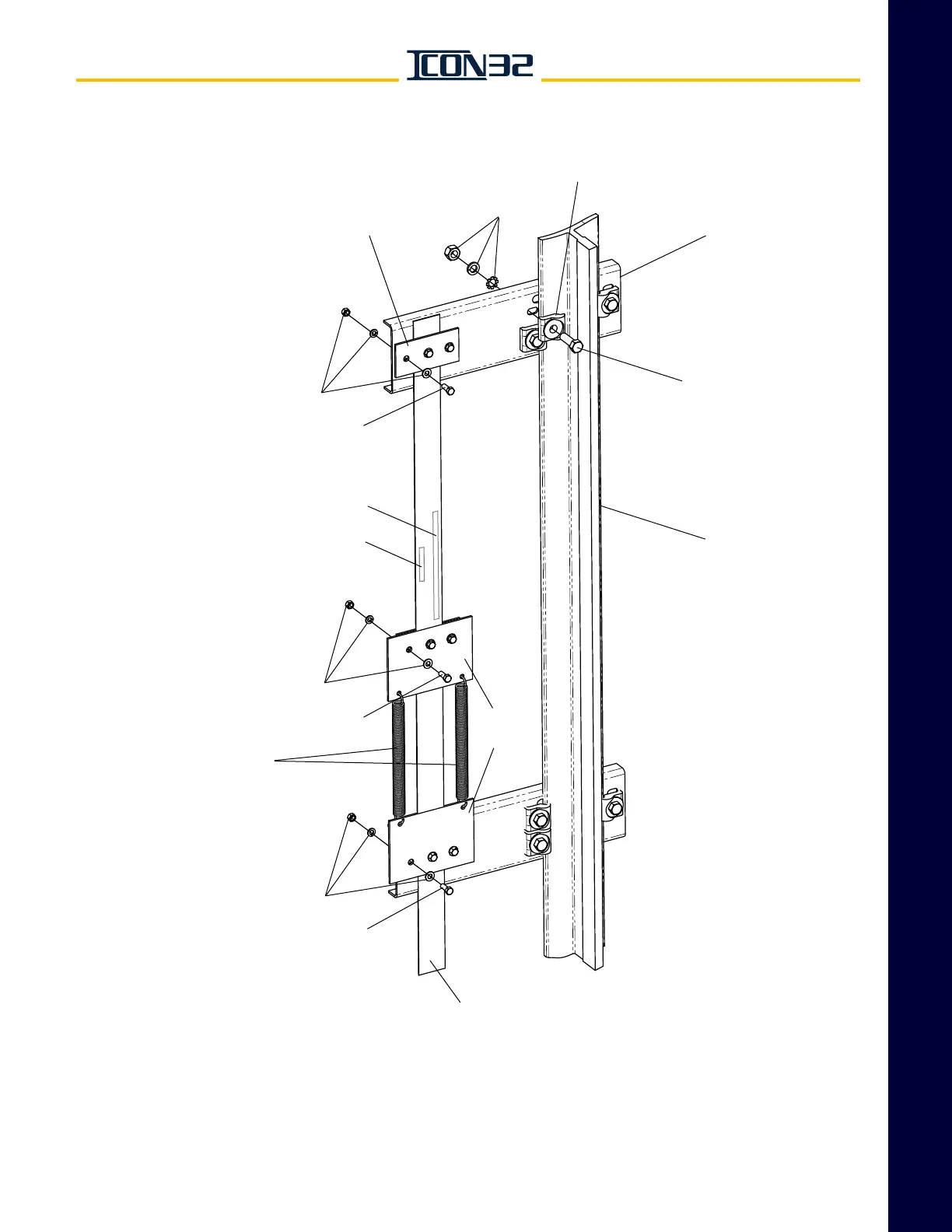

Figure 14 - T-Rail Selector Tape Installation
T-Rail
2½" Magnetic Strip
8" Magnetic Strip
6¼" × 2"
6¼"
Selector Tape
Selector Tape Springs
*springs MUST extend
to 1½ times original size
(appx. 15¼").
Spring
Plate
Selector Tape
Support Bracket
Tape Plate
Forged Rail Clip, 15#
