When installing multiple
magnets end to end, make
sure there is no gap
between the magnets.
Gaps may cause controller
and operational problems.
Requirement: The selector cannot be moved past the Terminal Slowdown or the Directional
Limit at the extreme limits of car travel.
1. Add additional magnets to the ends of Terminal Slowdown & Directional Limit Magnets.
2. Evenly divide additional magnets (from the chart) between each track of magnets.

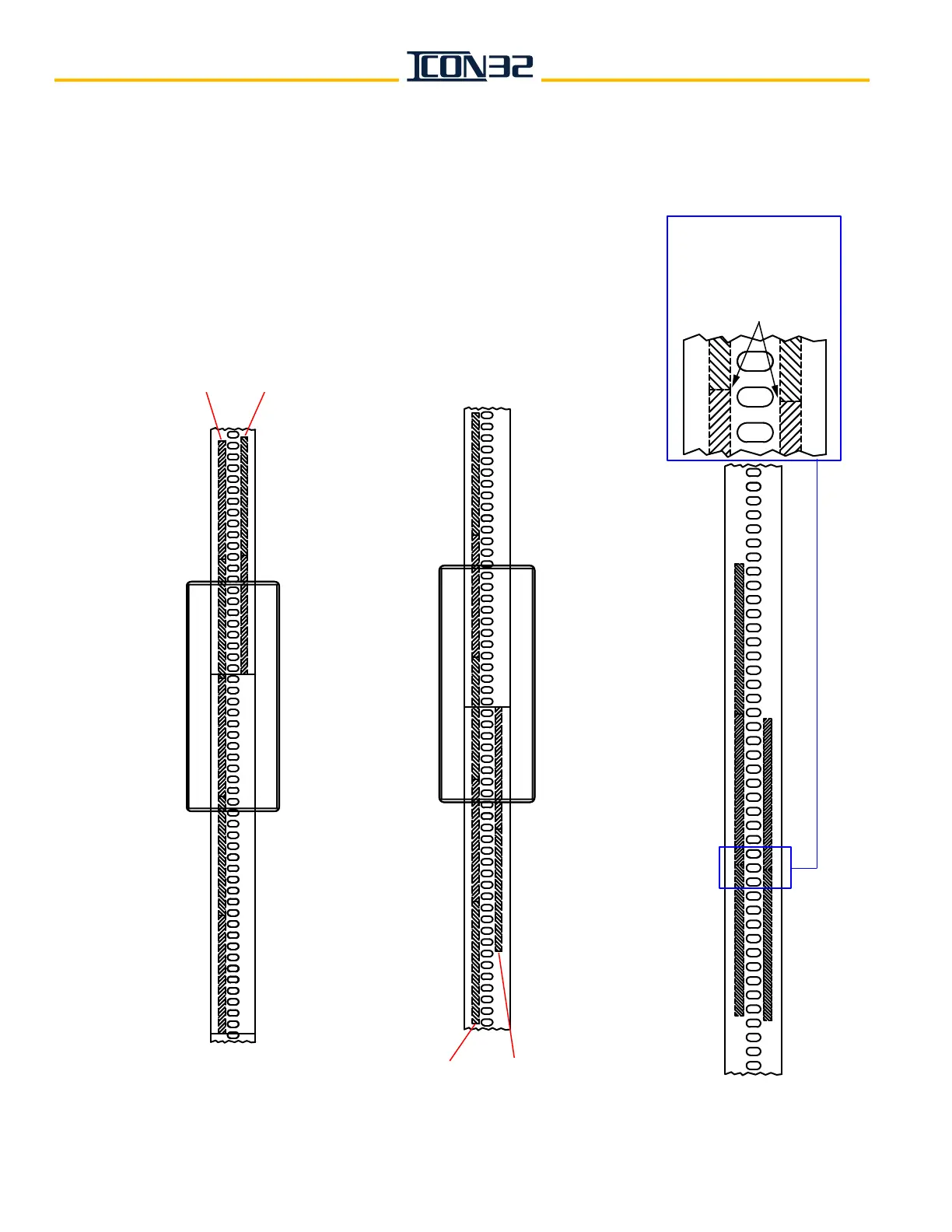

3. Stack the magnets end to end. See End To End Stacking Gap (right).
Add Magnets Here
Add Magnets Here
Top Terminal Slowdown
and Directional Magnets
Bottom Terminal Slowdown
and Directional Magnets
Top Selector Sensors
Bottom Selector Sensors
End to End Stacking Gap
Note: The magnets on
this sheet are placed
on the back side of the
tape, the side opposite
the car side.
