ADJUSTMENT
Vertical Express Product Manual 2-23 88500 v.1.0
Adjustment Section Selector Tape Magnet Installation
Magnet Placement
(continued)

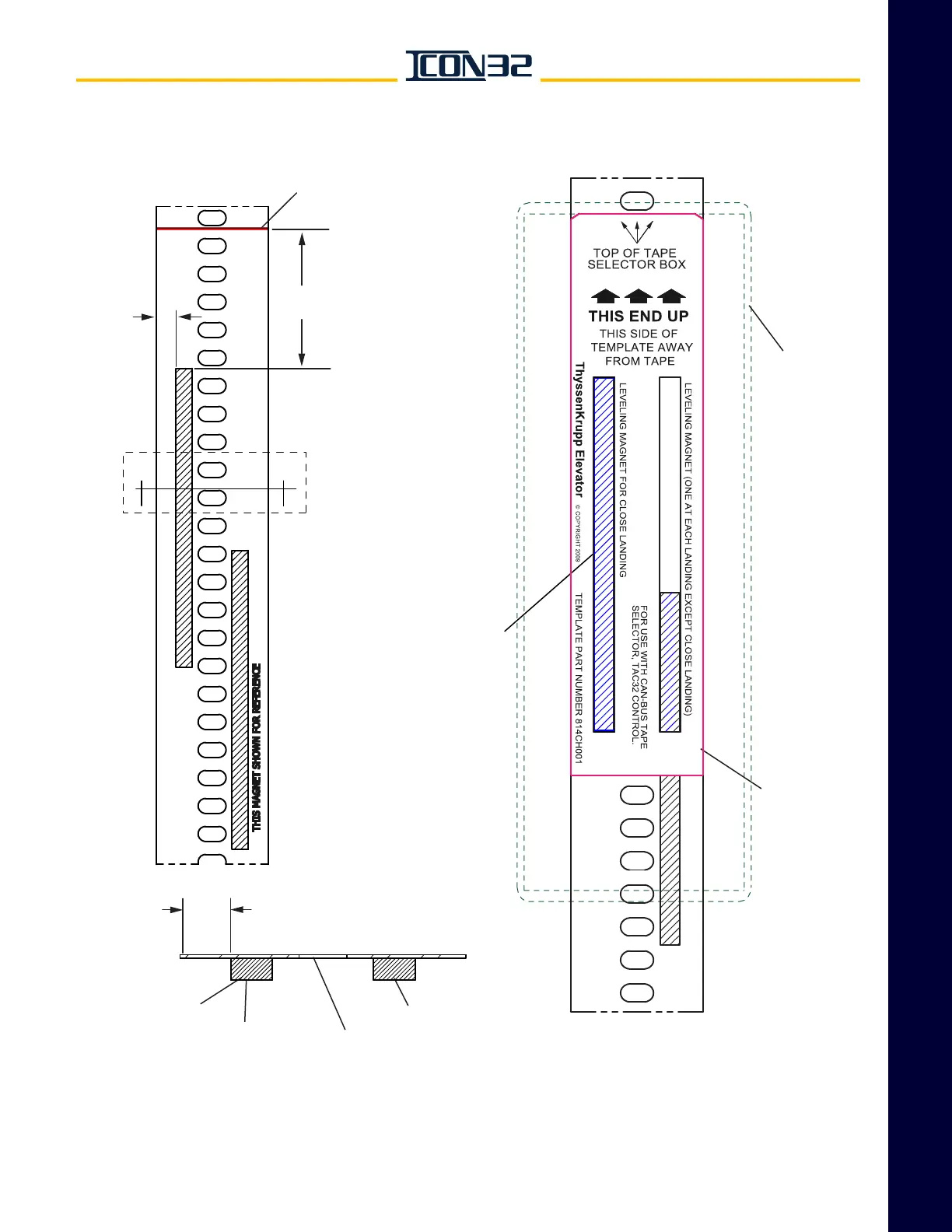

Figure 7 - Close Floor Leveling Magnet Installation
Mark the tape at the top of the selector box.
3¾"
DD
Position the
template on
the tape.
Place 8" magnet
here with yellow
stripe facing out.
Selector Box
½"
Yellow Stripe
(South Pole)
Car Side of Selector Tape
Section D-D
Close Floor
Leveling Magnet
Typical Leveling Magnet
½"
