Selector Tape Magnet Installation Adjustment Section
©Vertical Express 2-22 Printed in USA April 2020
Magnet Placement
(continued)

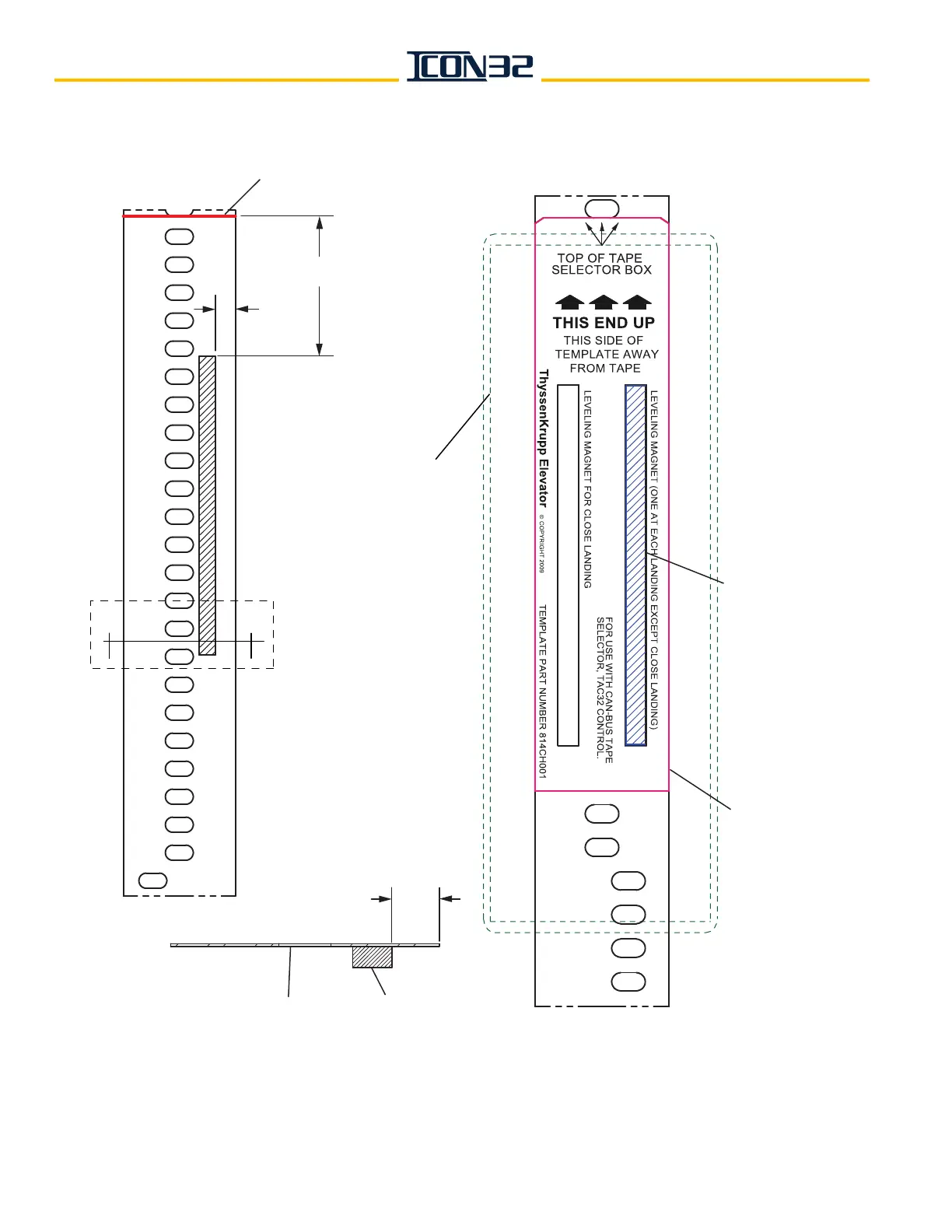

Figure 6 - Floor Landing Leveling Magnet Installation
Mark the tape at the top of the selector box.
3¾"
Yellow Stripe
(South Pole)
Car Side of Selector Tape
Section C-C
CC
Position the
template on
the tape.
Place 8" magnet
here with yellow
stripe facing out.
Selector Box


½"
½"
