Vertiv Liebert AC8 - RS232 Connector; Phone Line Connector

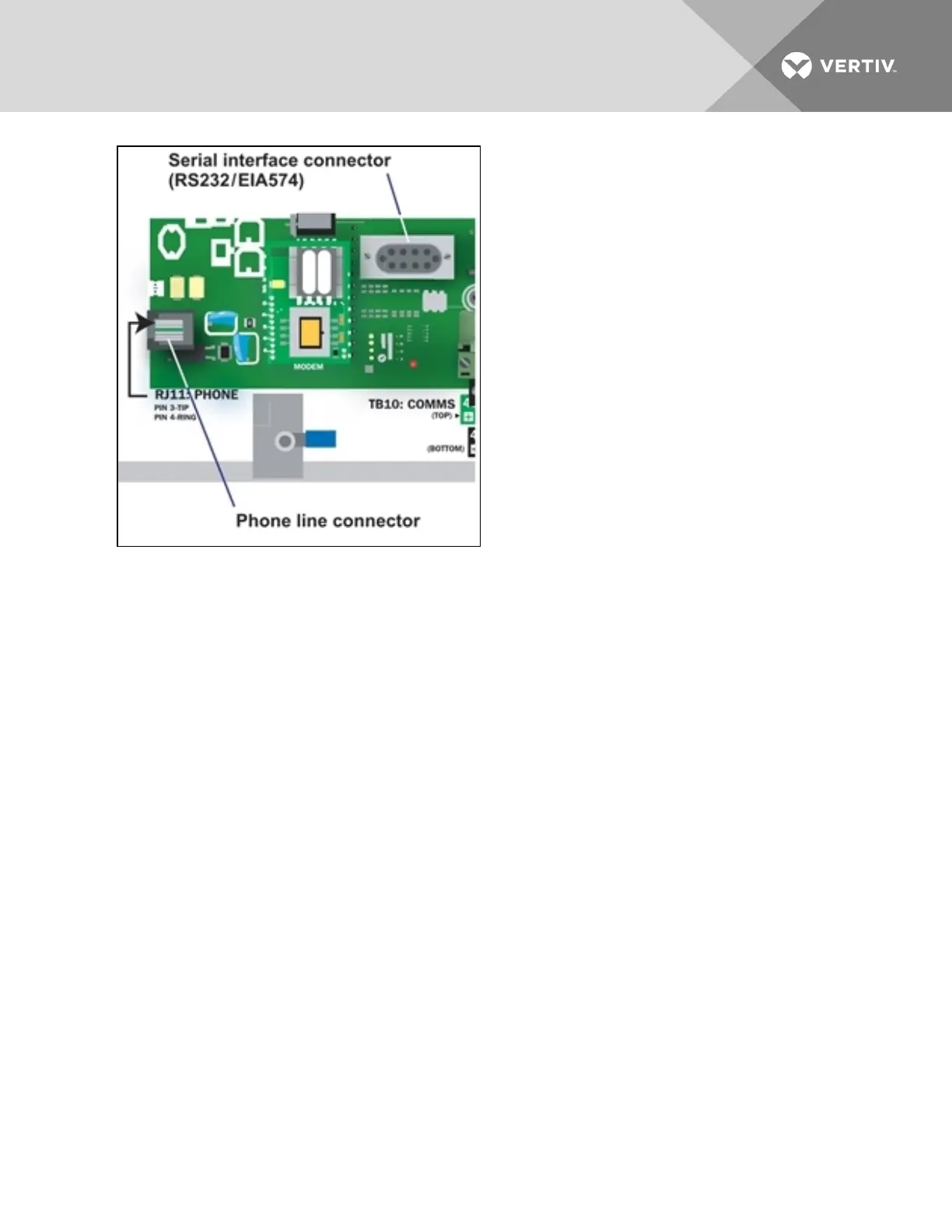

3.6.1 RS232 Connector
The RS232 port requires a null modem cable.
• Connect one end of the cable to the Liebert AC8’s RS232 port, as shown at right.
• Connect the other end to the COM1 port of a laptop computer or video terminal.
3.6.2 Phone Line Connector
The Phone Line Connector requires an RJ11 connector.
• Connect one end of the connector to the Liebert AC8’s phone line connector, shown at right.
• Connect the other end to a telephone wall jack.
Vertiv | Liebert® AC8 User Manual | 28
