Vertiv Liebert AC8 - Setup System - Setup Outputs

Zone Default number of outputs
Zone1 4 (Outputs 1-4)
Zone2 0
Zone3 0
Zone4 0
Table 7.5
Default zones
7.7 Setup System - Setup Outputs
The Liebert AC8 has eight outputs that may be configured individually. These outputs correspond to the
eight numbered inputs. For example, Device_1 is the unit connected to Input 1 and to Output 1.
The output name is the same as the input name, as described in Change Label (Name of Input) on
page57.
To configure an output:
Log In and Choose Setup System
• From the Main Menu, use the arrows to choose System and
Control, then press Enter (see Login on page53 for help).
• Enter your password at the Login screen.
• From the System and Control Menu, use the arrows to choose
Setup System, then press Enter.
Select an Output to Configure

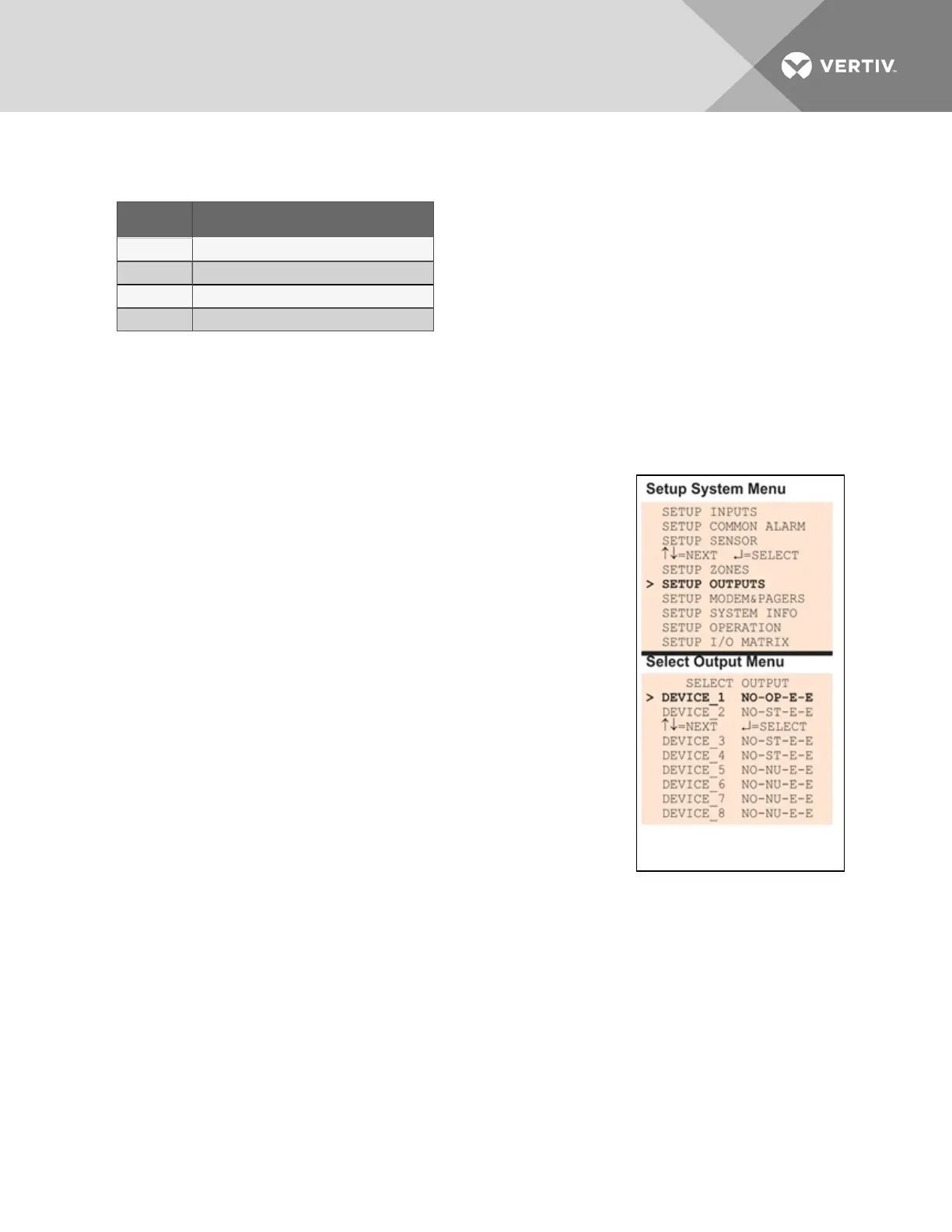

• From the Setup System Menu, shown at right, use the arrows to
choose Setup Outputs and press Enter.
• From the Select Output Menu, choose an output—for example,
Device_1—and press Enter.
Table 7.6 on the facing page shows digital output features and their
default settings: you may define an output as Normally Open or Normally
Closed, set the device’s mode—operating, standby or not used—and
specify whether to disable the device during emergency power operation.
Use the steps following Table 7.6 on the facing page to change the default settings for any digital output.
Vertiv | Liebert® AC8 User Manual | 70
