Vertiv Liebert AC8 - Connecting Control Relay Outputs

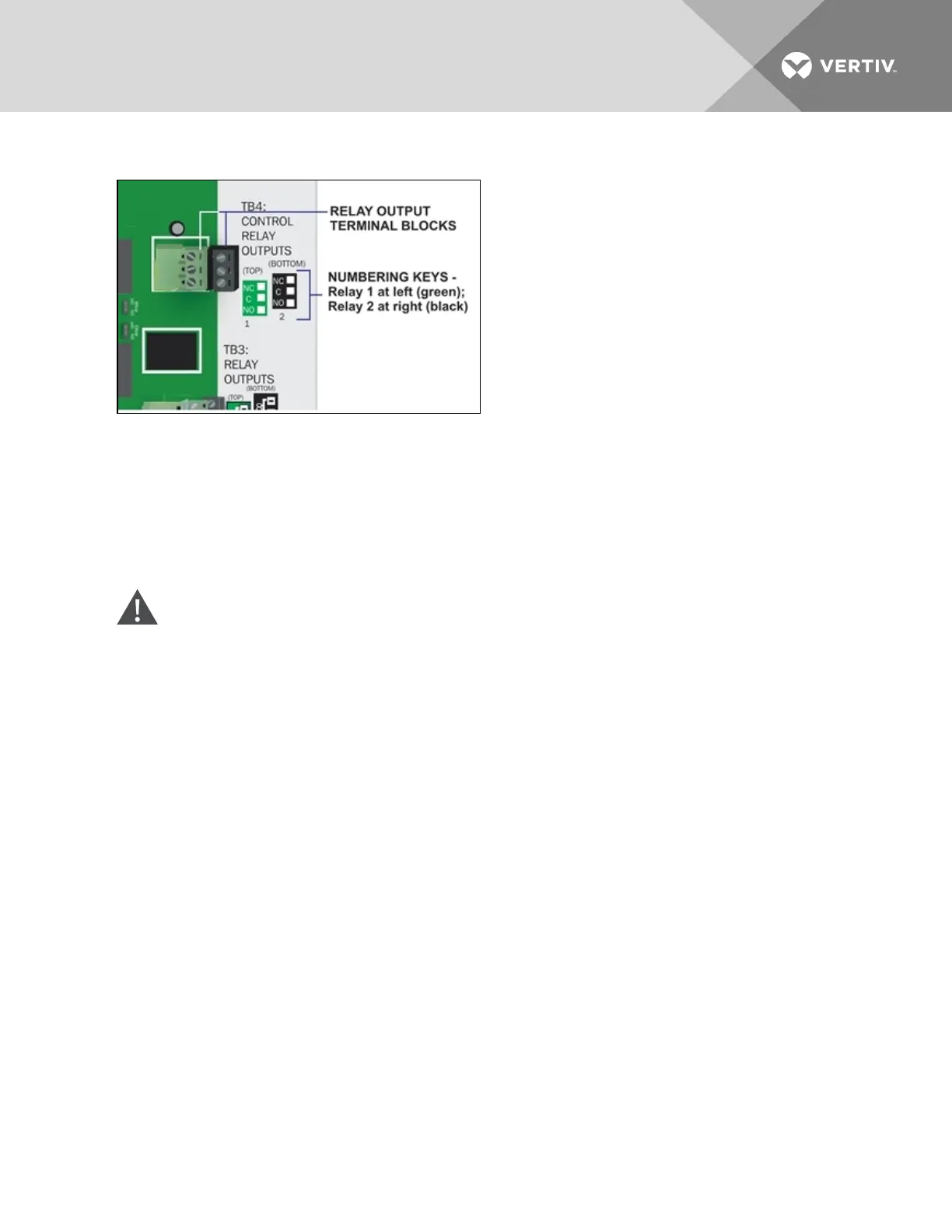

3.2.4 Connecting Control Relay Outputs
To connect a control relay output:
1. Turn OFF electrical power to the Liebert AC8.
2. If necessary, remove a conduit knockout to permit wire entry into the Liebert AC8 enclosure.
3. Bring the wire(s) into the Liebert AC8 enclosure through a conduit knockout or access slot.
4. Loosen the appropriate screw and slip the stripped end of the wire into the terminal block.
5. Tighten the screw until it holds the wire snugly.
CAUTION: To reduce the risk of fire or electric shock, do not interconnect the outputs of
different Class2 circuits.
Vertiv | Liebert® AC8 User Manual | 23
