Industrial 1.6L Engine Mechanical 1-49

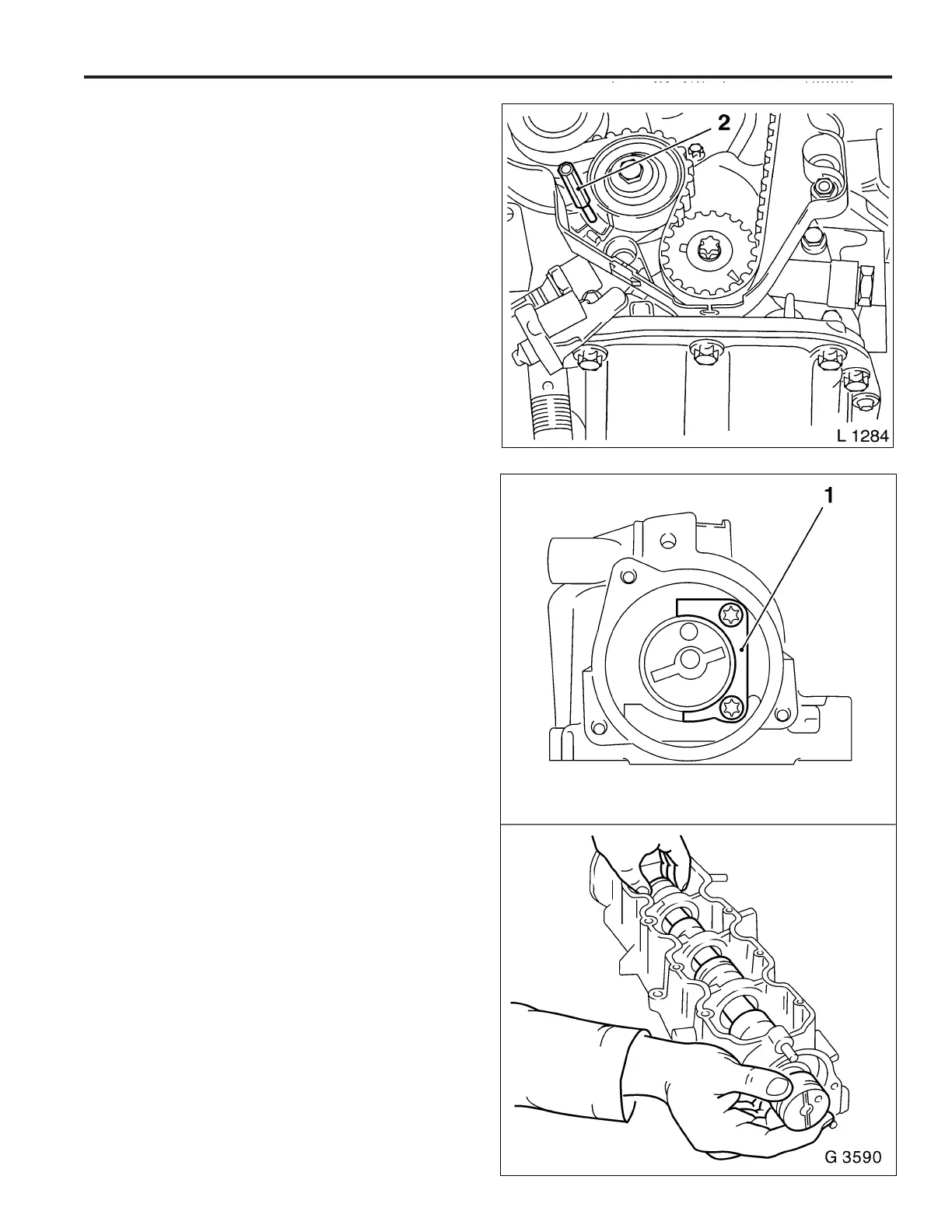

Removal Procedure
1. Move toothed belt tension roller upwards against spring
force until bore holes align.
2. Fix toothed belt tension roller in place with suitable drift
(2).
3. Mark running direction of the toothed belt for identifica-
tion and remove toothed belt.
4. Remove toothed belt tension roller (4) from oil pump.
5. Remove toothed belt drive gear (3) from crankshaft.
6. Remove camshaft housing cover from camshaft housing.
7. Remove camshaft sprocket (1) – counterhold with open–
ended spanner on hex of camshaft.
