WAGO 750 Series User Manual

Step-by-Step Guide to your own Linux Application • 107
Transferring the User Space Application to the Linux Coupler
WAGO-I/O-SYSTEM 750
Linux Fieldbus Coupler
5.7 Transferring the User Space Application to the Linux
Coupler
The user space application is copied into the /targetfs directory by the make
file. The /targetfs directory can be accessed via NFS (see chapter 5.11). The
/targetfs directory needs to be embedded into the Linux fieldbus coupler using
the mount command. It can now be directly executed on the coupler.
The user space application can also be copied into the Linux fieldbus coupler
via FTP and then be executed locally. To do so, enter the following on the host
PC.
> cd ~/uclinux-dist/user/newProg
> ftp 192.168.1.8
root (Benutzer)
wago (Passwort)
> cd /bin
> put newProg
> quit

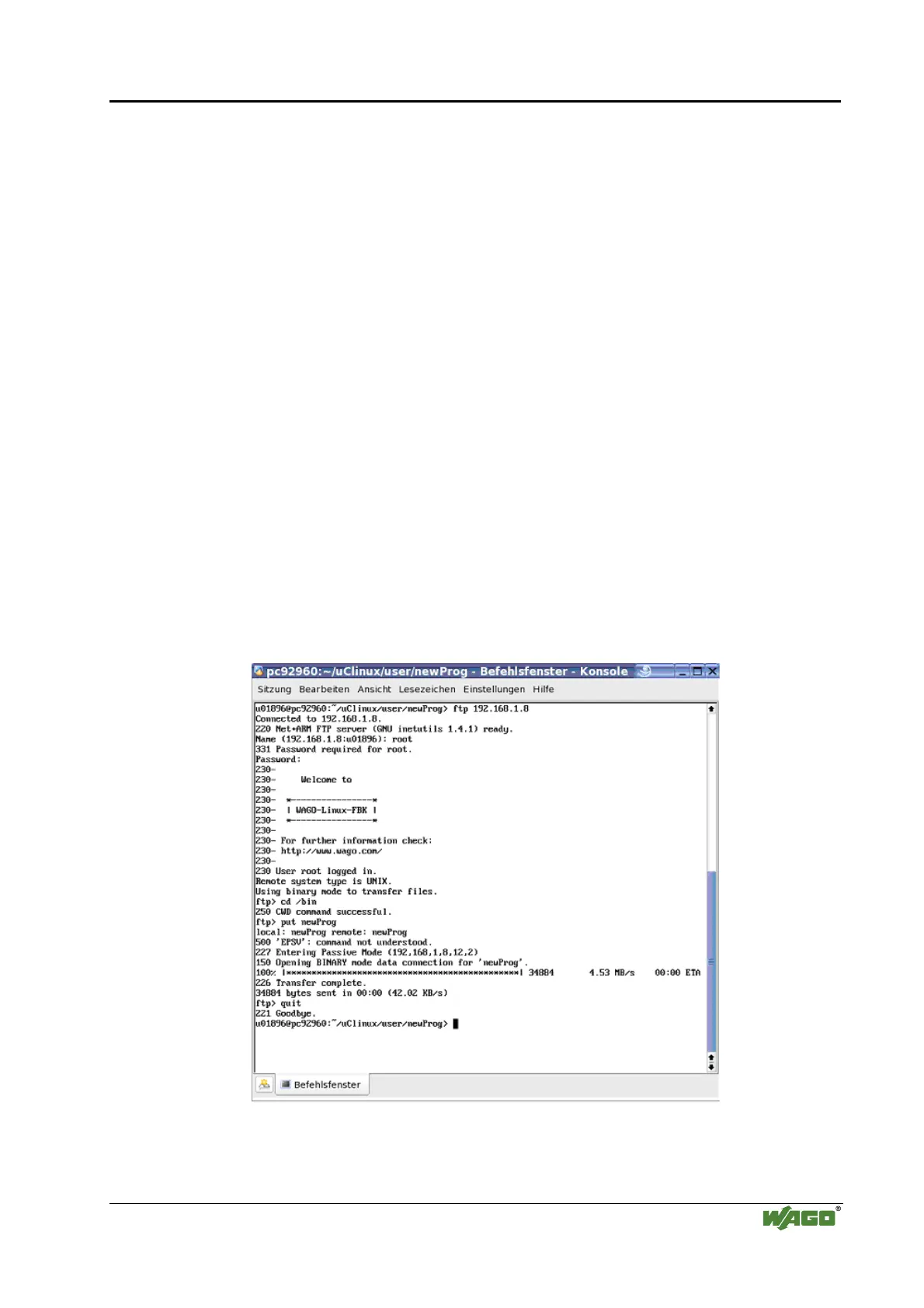

Screenshot:
Fig. 5-4: Linux screen view after program download p0860012

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
