WAGO 750 Series User Manual

The WAGO-I/O-SYSTEM 750 • 21
Mechanical Setup
WAGO-I/O-SYSTEM 750
Linux Fieldbus Coupler

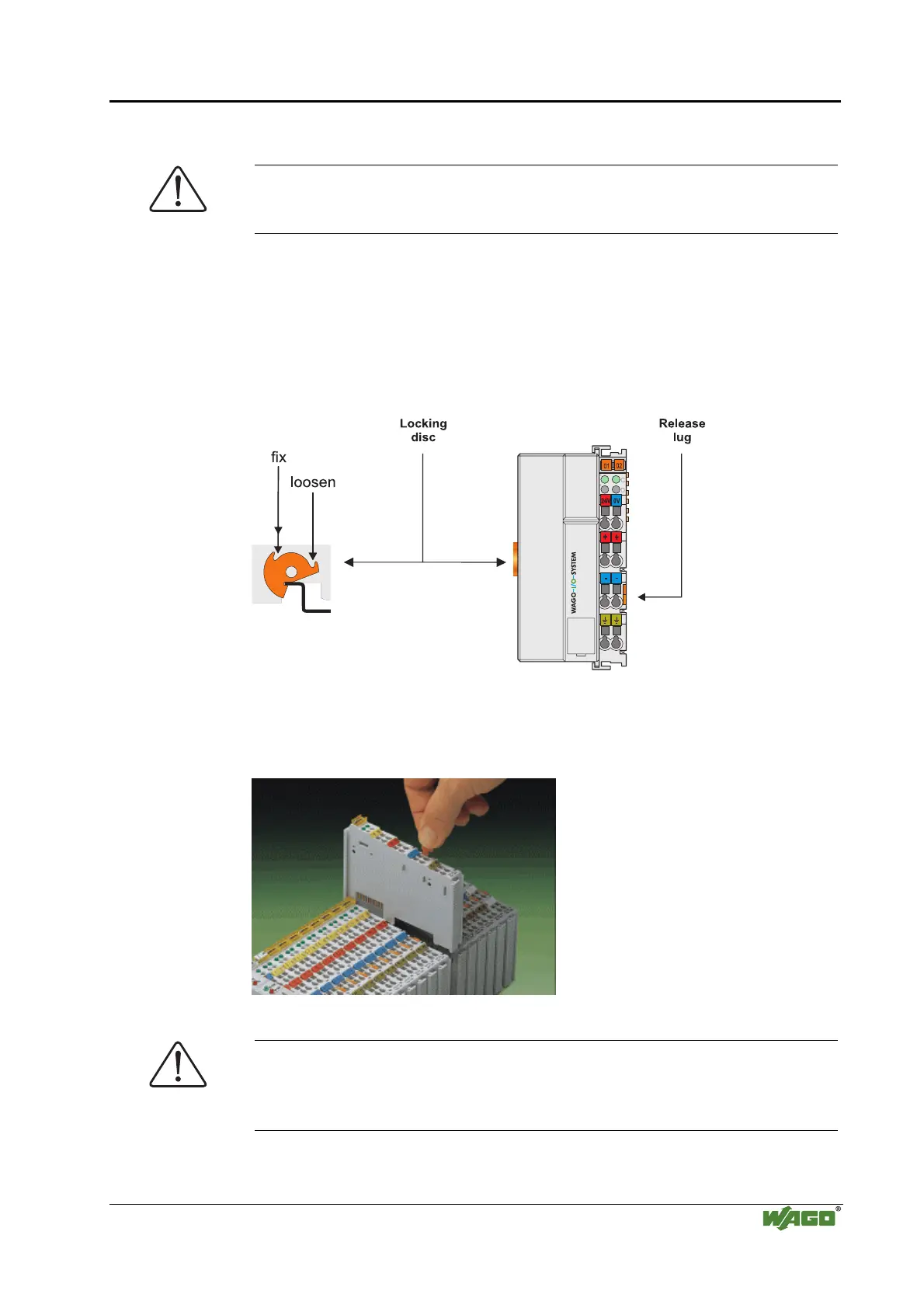

2.6.5 Plugging and Removal of the Components
Warning
Before work is done on the components, the voltage supply must be turned
off.
In order to safeguard the coupler/controller from jamming, it should be fixed
onto the carrier rail with the locking disc To do so, push on the upper groove
of the locking disc using a screwdriver.
To pull out the field bus coupler/controller, release the locking disc by
pressing on the bottom groove with a screwdriver and then pulling the orange
colored unlocking lug .
Fig. 2-5: Coupler/Controller and unlocking lug g01xx12e
It is also possible to release an individual I/O module from the unit by pulling
an unlocking lug.
Fig. 2-6: removing bus terminal p0xxx01x
Danger
Ensure that an interruption of the PE will not result in a condition which
could endanger a person or equipment!
For planning the ring feeding of the ground wire, please see chapter 2.6.3.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
