44 • Linux Fieldbus Coupler 750-860
Power Supply
WAGO-I/O-SYSTEM 750
Linux Fieldbus Coupler
3.2 Power Supply
The power is supplied through terminals with CAGE CLAMP
®
connection.
The power supply provides power to both the system and the field side.
1
2
3
4
5
6
7
8
DC
DC
24 V
10 nF
24 V
10 nF
0V
24V/0V
24 V
0V
0V
750-841
FiELDBUS INTERFACE
ELECTRONIC
ELECTRONIC
FiELDBUS
INTERFACE
I/O
MODULES

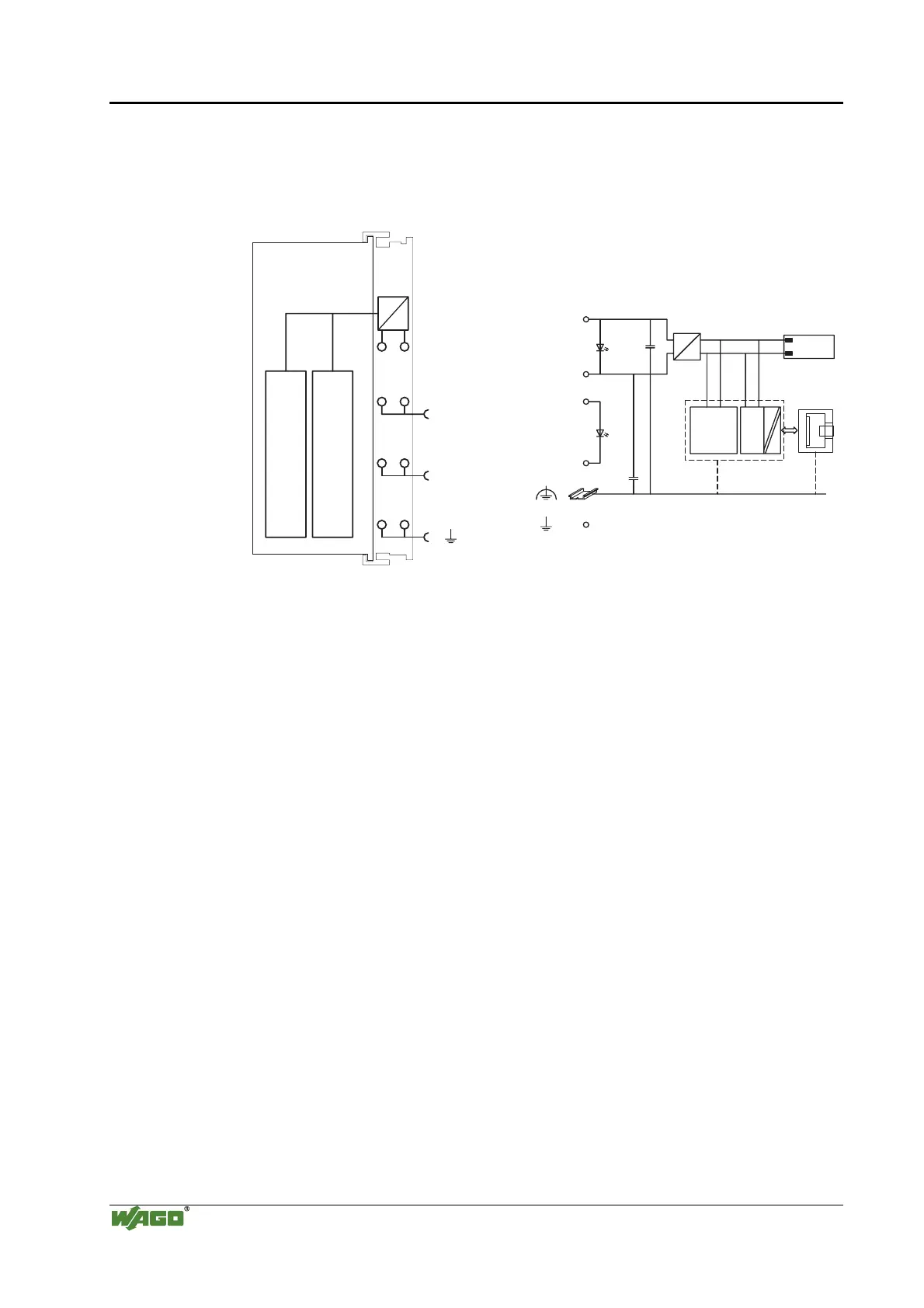

Fig. 3-2: Power supply, identical to 750-841 g086001d
The integrated power supply provides the required power to the electronics
and to the I/O modules.
An electrically isolated power supply is provided to the fieldbus interface.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
