Manufacturing Number
WAGO-I/O-SYSTEM 750
Linux Fieldbus Coupler
2.3 Manufacturing Number
The manufacturing number indicates the delivery status directly after
production.
This number is part of the lateral marking on the component.
In addition, starting from calendar week 43/2000 the manufacturing number is
also printed on the cover of the configuration and programming interface of
the field bus coupler or controller.
Hansastr. 27
D-32423 Minden
ITEM-NO.:750-333
PROFIBUS DP 12 MBd /DPV1
0V
Power Supply
Electronic
PATENTS PENDING
II3GD
DEMKO 02 ATEX132273 X
EEx nA II T4
24V DC
AWG 28-14
55°C max ambient
LISTED 22ZA AND 22XM
72072
0103000203-B000000
Hansastr. 27
D-32423 Minden
ITEM-NO.:750-333
PROFIBUS DP 12 MBd /DPV1
0V
Power Supply
Electronic
PATENTS PENDING
II3GD
DEMKO 02 ATEX132273 X
EEx nA II T4
24V DC
AWG 28-14
55°C max ambient
LISTED 22ZA AND 22XM
72072
0103000203-B060606
1
0
3
0
0
0
2
0
0
3
DS
NO
SW
HW
GL
FWL
Power Supply
Field
24 V
+
-
-B060606
PROFIBUS
WAGO - I/O - SYSTEM
750-333
01030002
03-B
060606
72072
Manufacturing Number
Calendar
week
Year Software
version
Hardware
version
Firmware Loader
version
Internal
Number

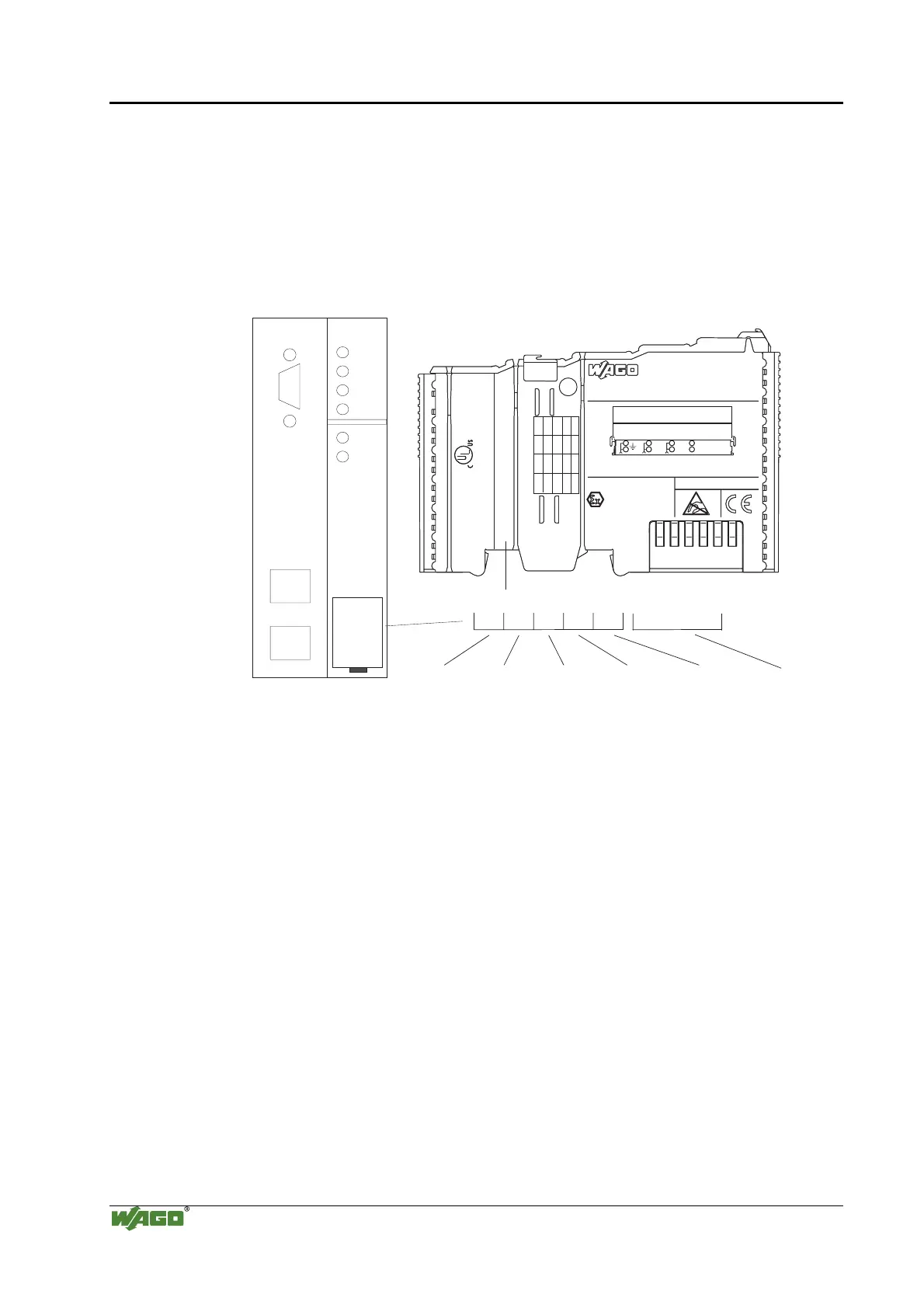

Fig. 2-3: Example: Manufacturing Number of a PROFIBUS field bus coupler 750-333
g01xx15e
The manufacturing number consists of the production week and year, the
software version (if available), the hardware version of the component, the
firmware loader (if available) and further internal information for
WAGO Kontakttechnik GmbH & Co. KG.
