Technical Data
WAGO-I/O-SYSTEM 750
Linux Fieldbus Coupler
Dimensions
51
24V 0V
+
+
-
-
01
02
C
D
B
A
C
D
B
A
C
D
B
A
C
D
B
A
C
D
B
A
100
12
24
64
35
65
Side view
Dimensions in mm

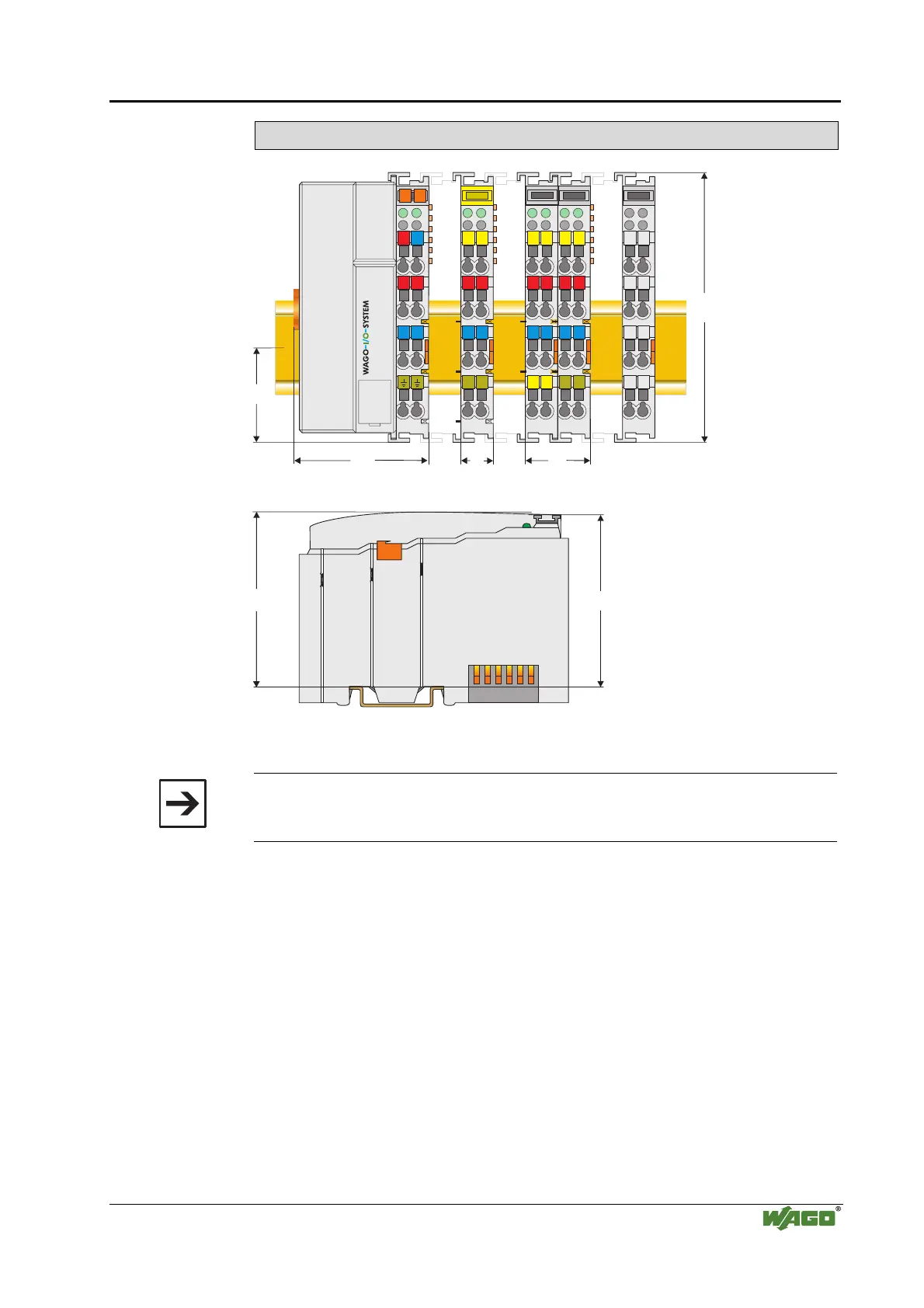

Fig. 2-2: Dimensions g01xx05e
Note:
The illustration shows a standard coupler. For detailed dimensions, please
refer to the technical data of the respective coupler/controller.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
