WAGO 750 Series User Manual

Linux Fieldbus Coupler 750-860 • 43
View
WAGO-I/O-SYSTEM 750
Linux Fieldbus Coupler
3.1 View
24V 0V
++
--
01 02
LINK
STATUS
SERVICE
I/O
LINUX
C
D
B
A
TXD/RXD
750-860
0V
fieldbus
connection
RJ 45
configuration
interface
status
voltage supply
-
-
system
power jumper contacts
data contacts
supply
24V
0V
supply via
power jumper contacts
24V
power jumper contacts
flap
open
USR

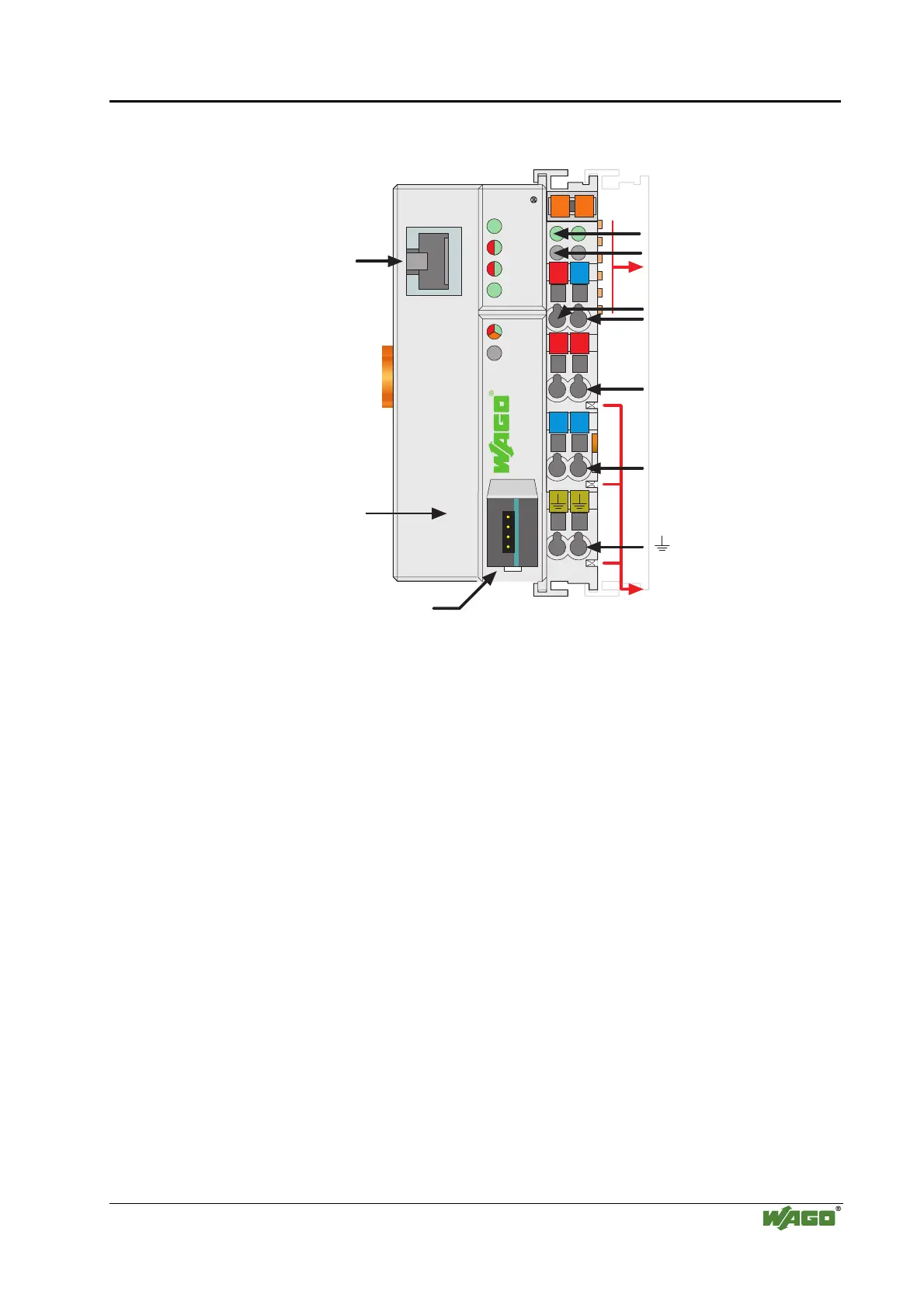

Fig. 3-1: The Linux fieldbus coupler g086000d
The Linux fieldbus coupler comprises
• Power supply for the system supply as well as power jumper contacts for
the field side supply via I/O modules
• Fieldbus interface with fieldbus connection
• LEDs for status indication, i.e. operational status, fieldbus communication,
operating voltages, error message and diagnostics
• Configuration Interface
• Selector switch
• Electronics for communication with the I/O modules (internal bus) and the
fieldbus interface

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
