Step-by-Step Guide to your own Linux Application • 103
Setup of the Development Environment
WAGO-I/O-SYSTEM 750
Linux Fieldbus Coupler
5.4.2 PC Terminal Program Configuration (Ethernet)
In order to communicate with the Linux fieldbus coupler console via Ethernet,
a terminal program is required. Under Linux you can simply start the telnet
program via the console.
Under DOS or the MS-DOS prompt you can also start a Telnet client using the
call telnet.
Under Windows, the Hyperterminal program can also communicate with the
Linux fieldbus coupler via telnet. Hyperterminal then requires the following
settings:

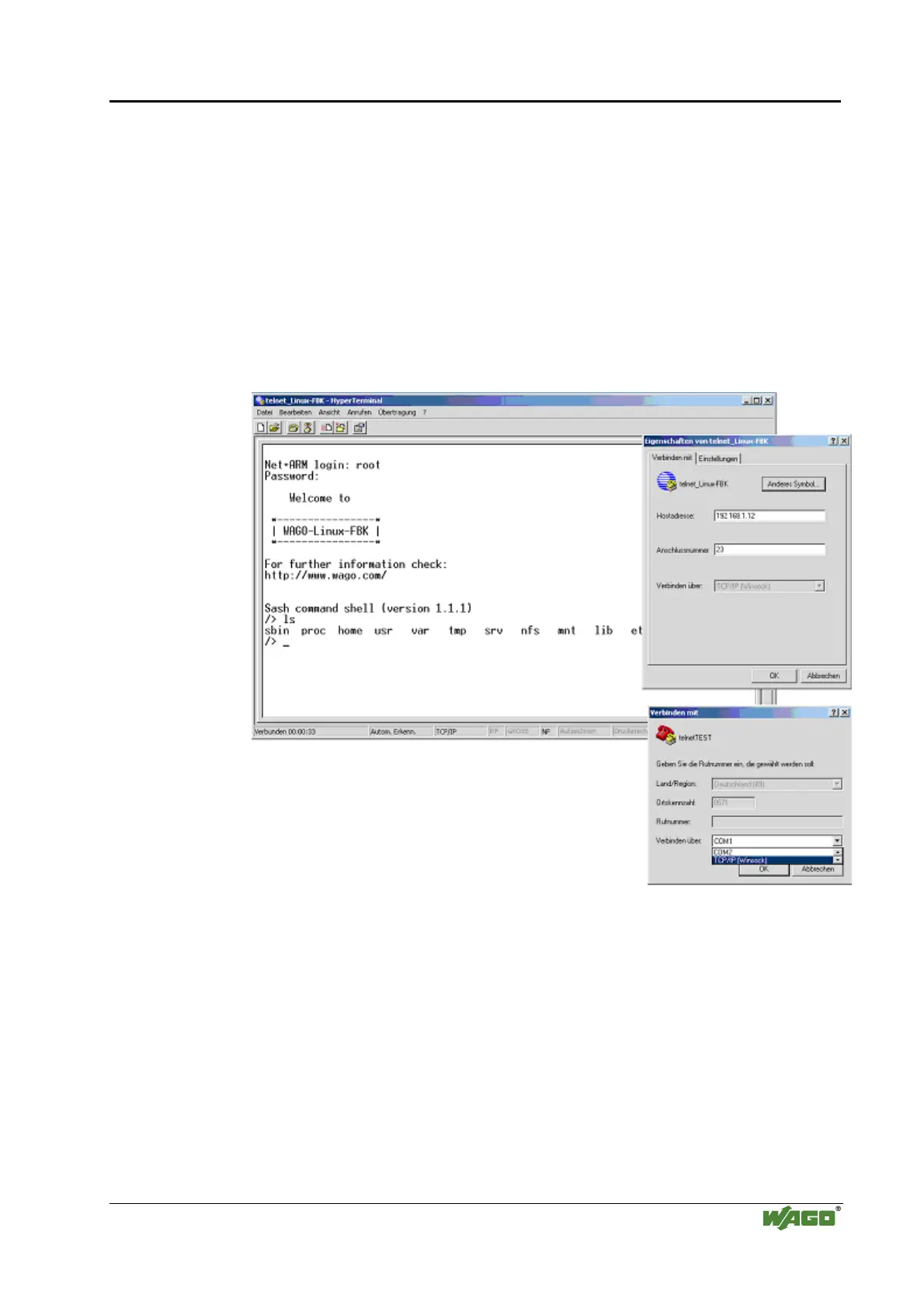

Fig. 5-3: Hyperterminal: Telnet settings g086008d
In the "Connect to" dialog, select TCP/IP in the " Connect via" selection field.
In the next window, enter the IP address (see also chapter 4.6) or the host
name of the Linux fieldbus coupler and the port number 23 for Telnet.
