Fieldbus Communication • 195
ETHERNET
WAGO-I/O-SYSTEM 750
Linux Fieldbus Coupler
Attention
The cable length between the node and the hub cannot be longer than 100 m
(328 ft.) without adding signal conditioning systems (i.e., repeaters). Various
possibilities are described in the ETHERNET standard for networks covering
larger distances.
10.1.2.2 Network Topologies
In the case of 10Base-T, or 100BaseTX several stations (nodes) are connected
using a star topology according to the 10Base-T ETHERNET Standard.
Therefore, this manual only deals with the star topology, and the tree topology
for larger networks in more detail.
Star Topology
A star topology consists of a network in which all nodes are connected to a
central point via individual cables.

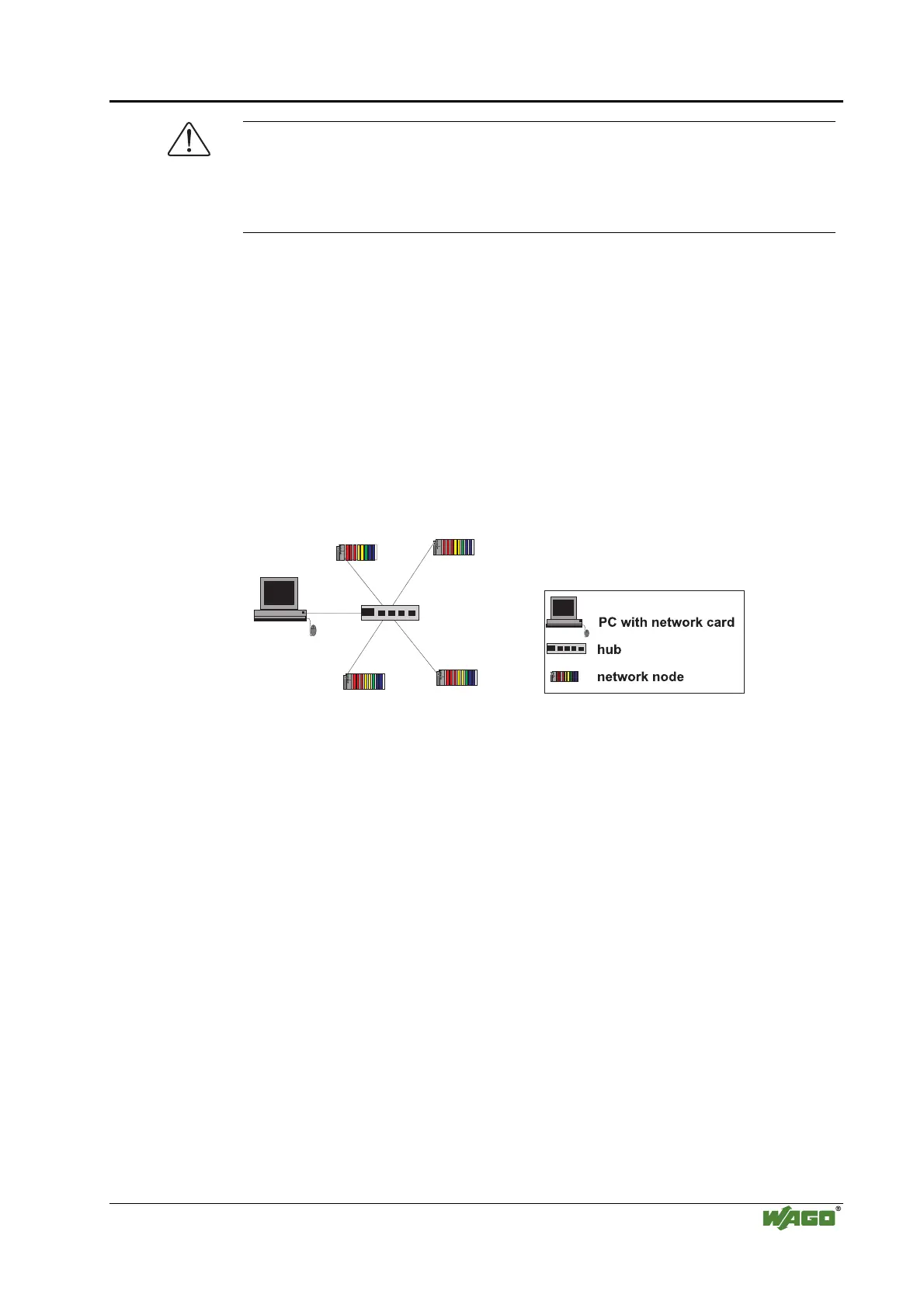

Fig. 10-4: Star Topology G012903e
A star topology offers the advantage of allowing the extension of an existing
network. Stations can be added or removed without network interruption.
Moreover, in the event of a defective cable, only the network segment and the
node connected to this segment is impaired. This considerably increases the
fail-safe of the entire network.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
