2.6.8 Power Contacts
Self-cleaning power contacts , are situated on the side of the components
which further conduct the supply voltage for the field side. These contacts
come as touchproof spring contacts on the right side of the coupler/controller
and the bus module. As fitting counterparts the module has male contacts on
the left side.
Danger
The power contacts are sharp-edged. Handle the module carefully to prevent
injury.
Attention
Please take into consideration that some bus modules have no or only a few
power jumper contacts. The design of some modules does not allow them to
be physically assembled in rows, as the grooves for the male contacts are
closed at the top.

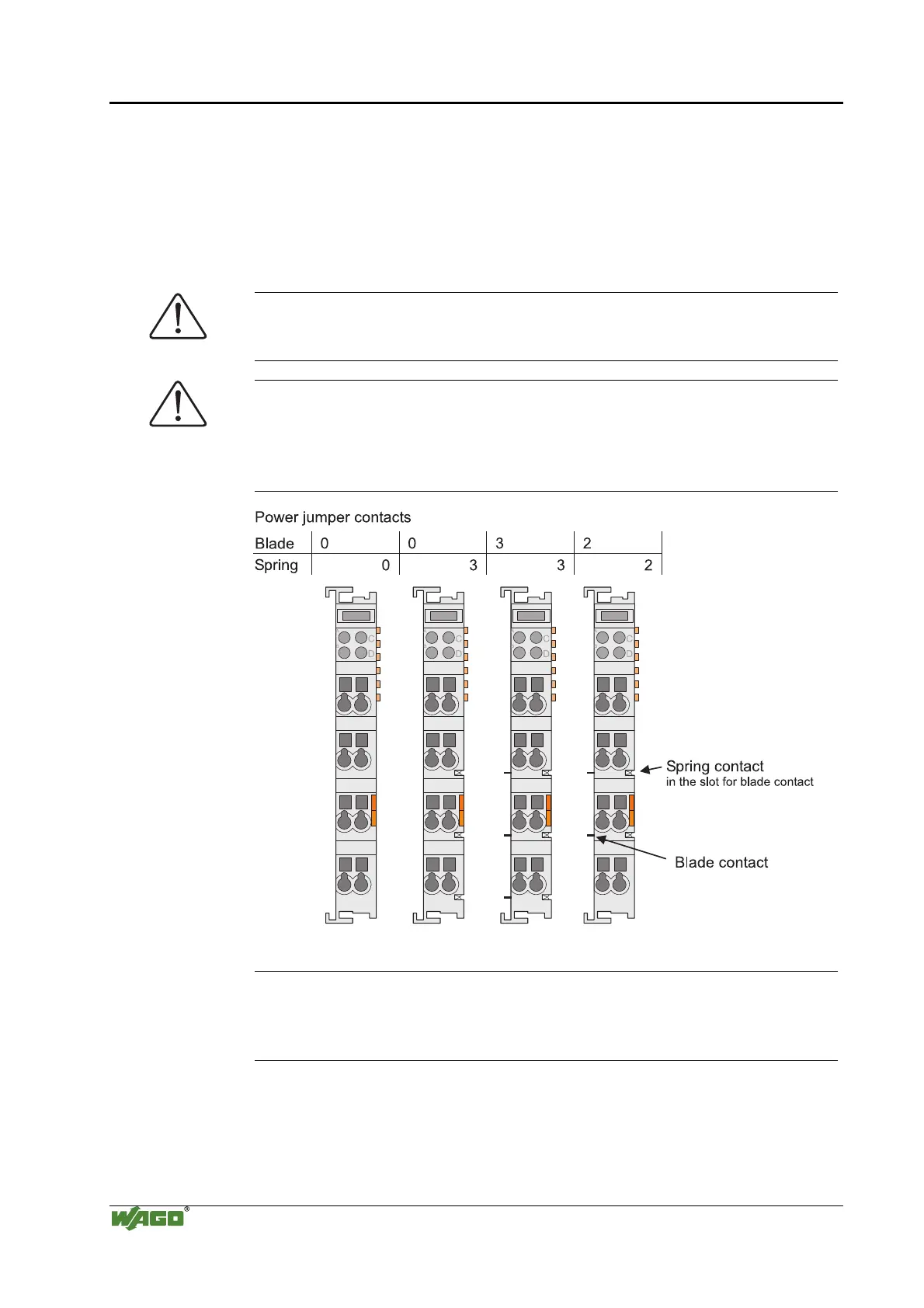

Fig. 2-8: Example for the arrangement of power contacts g0xxx05e
Recommendation
With the WAGO ProServe® Software smartDESIGNER, the structure of a
field bus node can be configured. The configuration can be tested via the
integrated accuracy check.

WAGO 750 Series Specifications

General

Protection Class	IP20
Bus Couplers	PROFIBUS, CANopen, Ethernet
Modules	Digital Input, Digital Output, Analog Input, Analog Output
Mounting	DIN rail mounting
Voltage Supply	24 V DC (typical)
Communication Protocol	Depends on the bus coupler (e.g., PROFIBUS, CANopen, DeviceNet, Ethernet)
Digital Input Channels	Varies by module (e.g., 8, 16 channels)
Digital Output Channels	Varies by module (e.g., 8, 16 channels)
Analog Input Channels	Varies by module (e.g., 2, 4, 8 channels)
Analog Output Channels	1, 2, 4 channels (depending on module)
Width	12 mm, 24 mm (typical module widths)
Number of Channels	Varies by module type
Current Consumption per Channel	Varies by module type
