62 • Board Support Package (BSP)
The Console of the Linux Fieldbus Coupler
WAGO-I/O-SYSTEM 750
Linux Fieldbus Coupler
• gdbserver
Server program for debugging in user space (see chapter 5.12)
• netflash
Program for copying a complete area (block) of the flash memory via
TFTP (see chapter 4.5.6)
All the other files in the /bin directory are links that refer to the busybox or
tinylogin program.
4.3 The Console of the Linux Fieldbus Coupler
The console of the Linux fieldbus coupler provides the basic functions for
administration, such as starting a program or executing scripts, for example.
You can access the console via both the serial interface and the Ethernet
interface.
Before you can use the console, you need to enter a user name and a password:

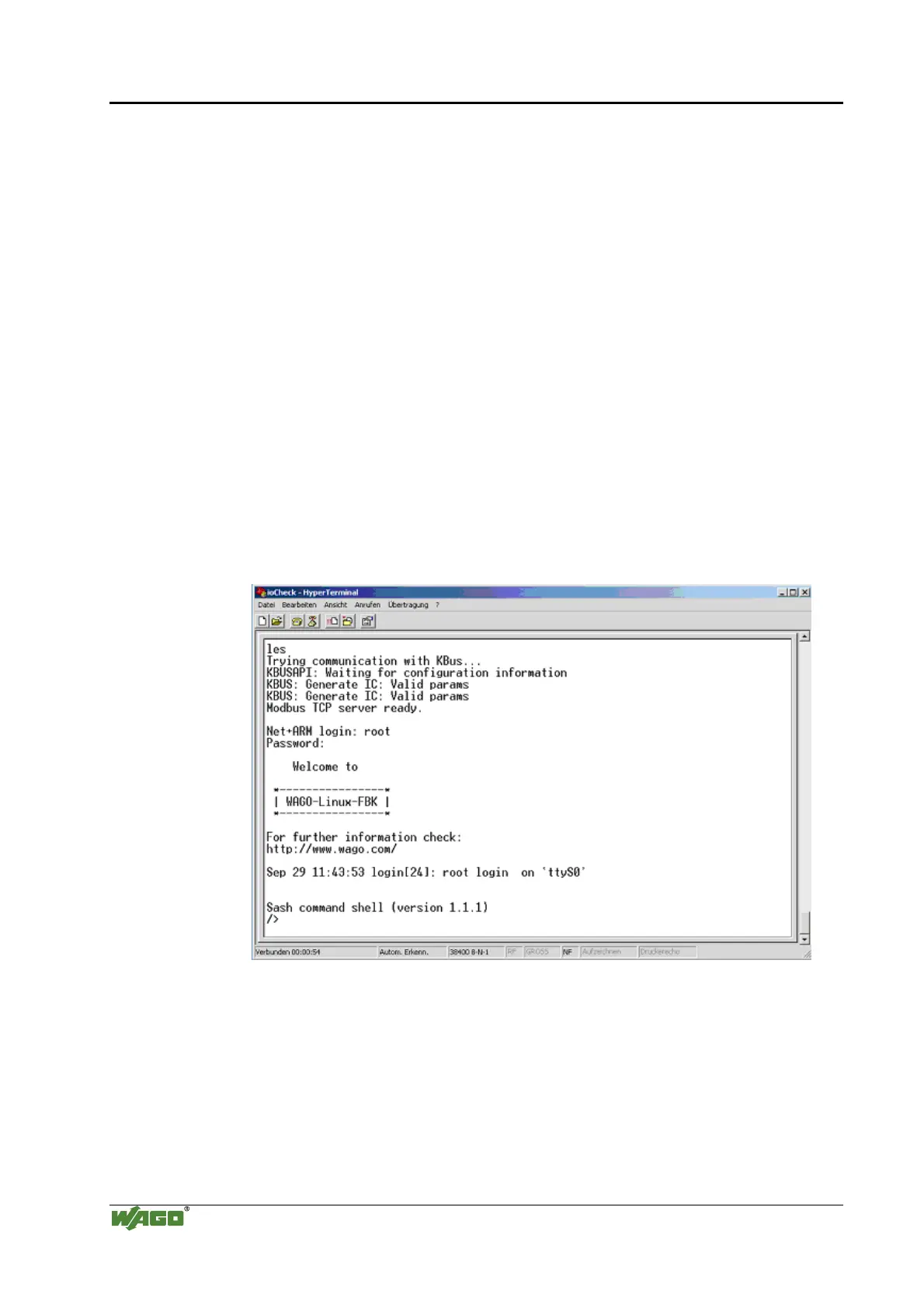

Fig. 4-1: Login of the console p086009d
