EtherNet/IP gateway
Wieland Electric GmbH | BA000970 | 11/2016 (Rev. F)
102
The data type of supported assemblies is BYTE which means strings of 8 bits each. The na-
ming in Logix Designer is SINT, which has the same size of 8 bits each.
If PLC requires a configuration assembly, any value or blank can be used for
assembly in-
stance
.
Size
of the configuration assembly shall be zero.
Please use assembly instances from Table
Overview of Assembly data bytes in SP-COP2-ENI
[ch. 8.5.1, p. 101]
for
Input
and
Output
. These settings can be used in generic EtherNet modu-
le configuration in Logix Designer which can be seen in the illustration below.

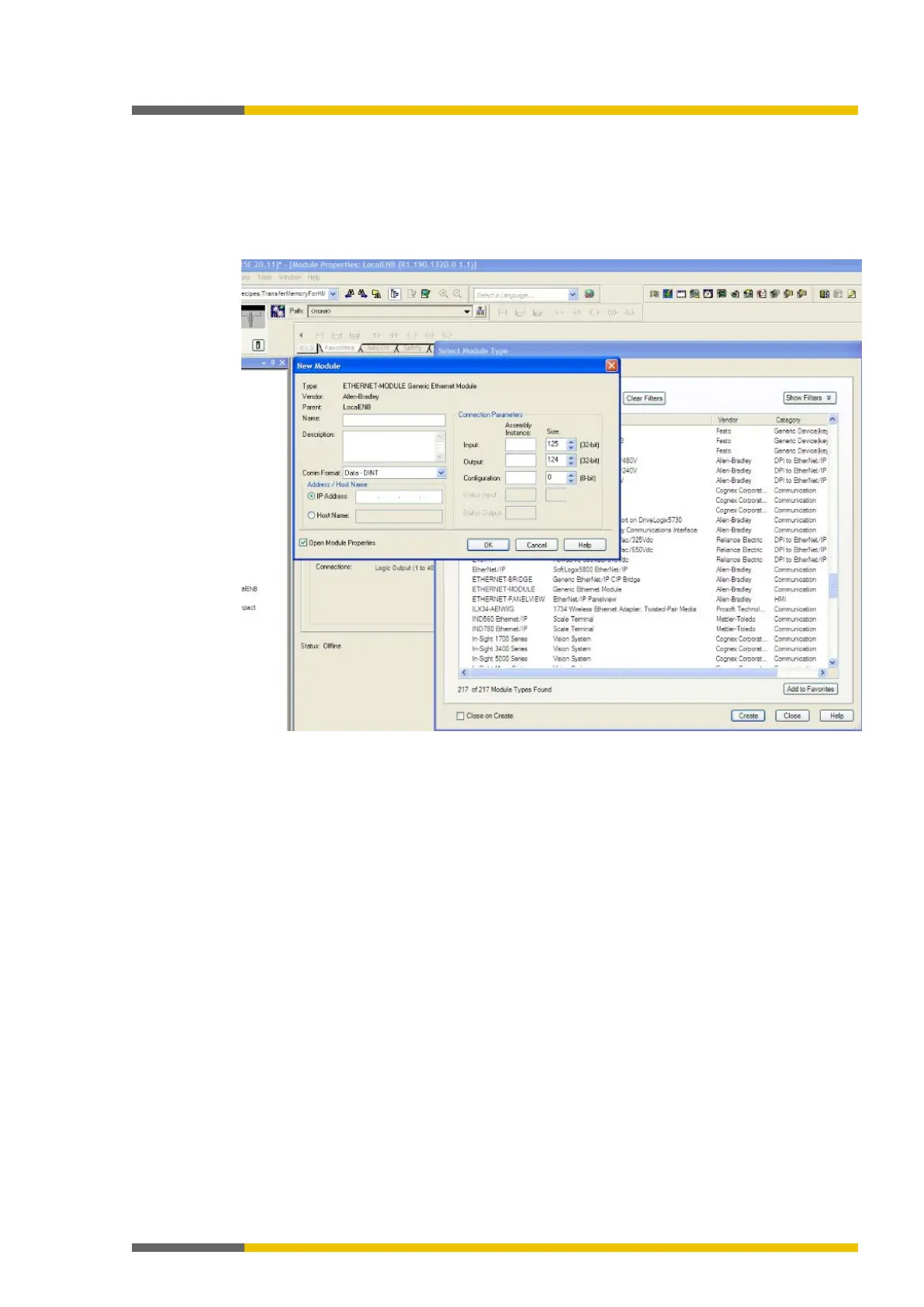

Illustration 29: Generic Ethernet module configuration
