Assembly Instances for Logic Input Bytes
1135839499
1127389323
Assembly Instance 57 = 0x39
Assembly instance 57 belongs to the device profile
discrete universal I/O device.
It contains
output data (T→O) with a scope of up to 67 bytes.
The first 50 bytes of assembly instance 57 correspond to the
output data set 1
of the logic da-
ta of the SP-COP2-ENI module. The following table explains the meaning of bytes 50 to 66. Da-
ta of the class 1 connection “Logic output (1 to 400) and logic/physical input” [ch. 8.3.1, p. 79]

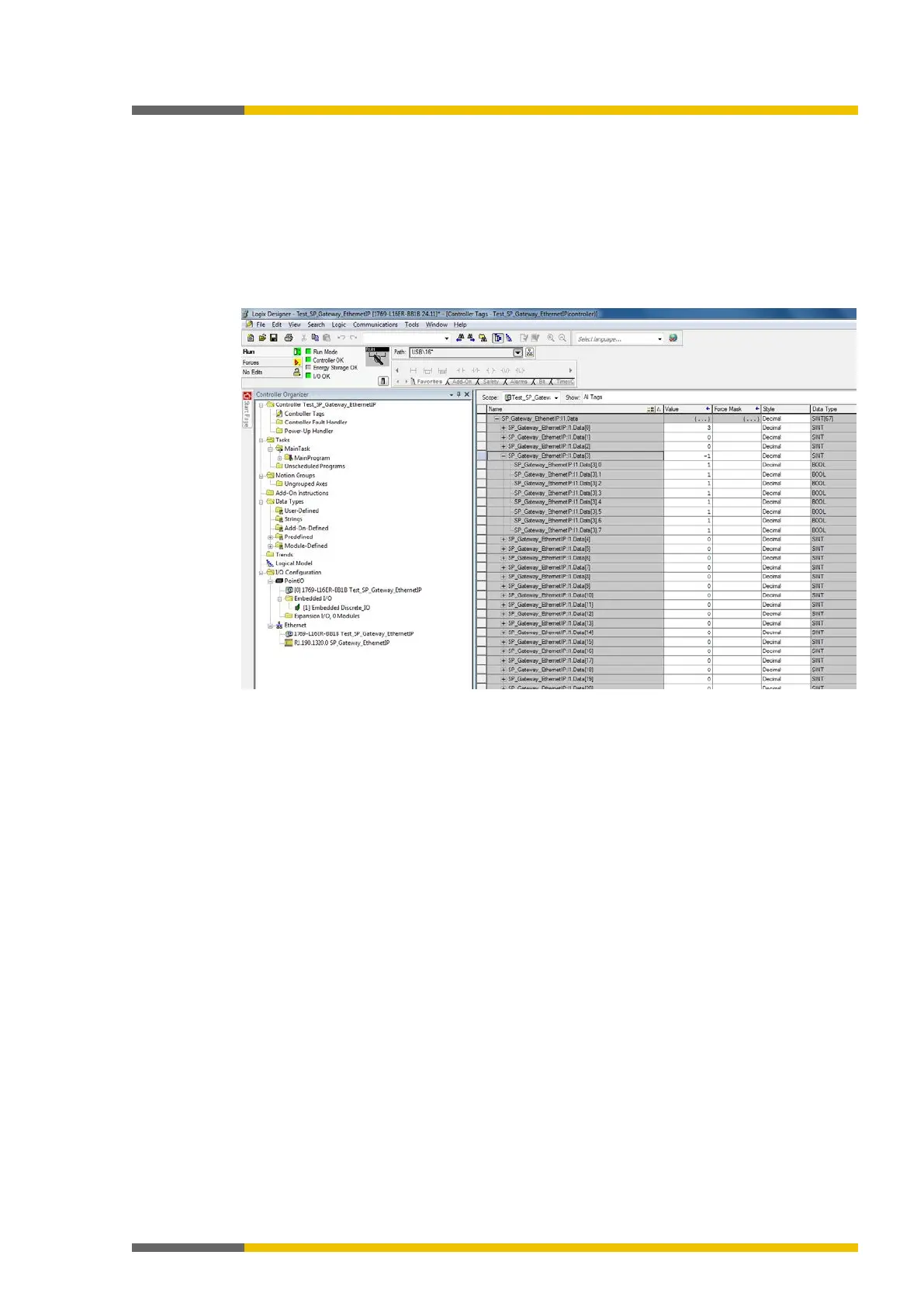

Illustration 30: Example of the display of assembly instance 57 in the Logix Designer
1127393931
Assembly Instances 167 = 0xa7
Assembly instance 167 possesses a different data structure to instance 57. Instance 167
makes the data available in the samosPRO system in more detail.
Assembly instance 167 in the samosPRO system comprises data (T→O) with a scope of up to
112 bytes.
1127395467
Byte 0 to 49
Assembly instance 167 corresponds to
output data block 1 to 5
of the logic data of the SP-
COP2-ENI module with a total scope of 50 bytes.
Here, attributes 1 to 50 are represented as with instance 57.
1127397003
Byte 50
Bit 7 of byte 50 of assembly instance 167 has the same value as the class 29 instance 1 attri-
bute 5, which represents the group status of all physical inputs.
Bit 6 of byte 50 of assembly instance 167 has the same value as the class 30 instance 1 attri-
bute 5, which represents the group status of all physical outputs.
Bit 5 of byte 50 of assembly instance 167, if set, indicates that an error code in class 120 in-
stance 6 attribute 1 is non-zero.
Bits 0 to 4 of byte 50 of assembly instance 167 byte are reserved for future use.
