Wieland samos PRO COMPACT - Configuring the Usage of Data from PLC

EtherNet/IP gateway
Wieland Electric GmbH | BA000970 | 11/2016 (Rev. F)
83
Configuring the usage of data from PLC
1127342731
Data transmitted by the PLC and thus by the sender to the target device (Originator to Target,
O→T) can be named in the "SP-EN-IP
[0] → samosPRO COMPACT" tab for the gateway configu-
ration in samosPLAN5+. By default, the logic values
Direct On 0
to
Direct On 3
are assigned
to the four first bytes. The names
Data bit 0
to
Data bit 7
are assigned to each bit as standard.
Each bit can be used in the logic editor of samosPLAN5+ as an unsafe input element, such as
as a
Restart button
or as a signal lamp.
Additional input elements for gateway data can be added as necessary through the configura-
tion of additional tag names.

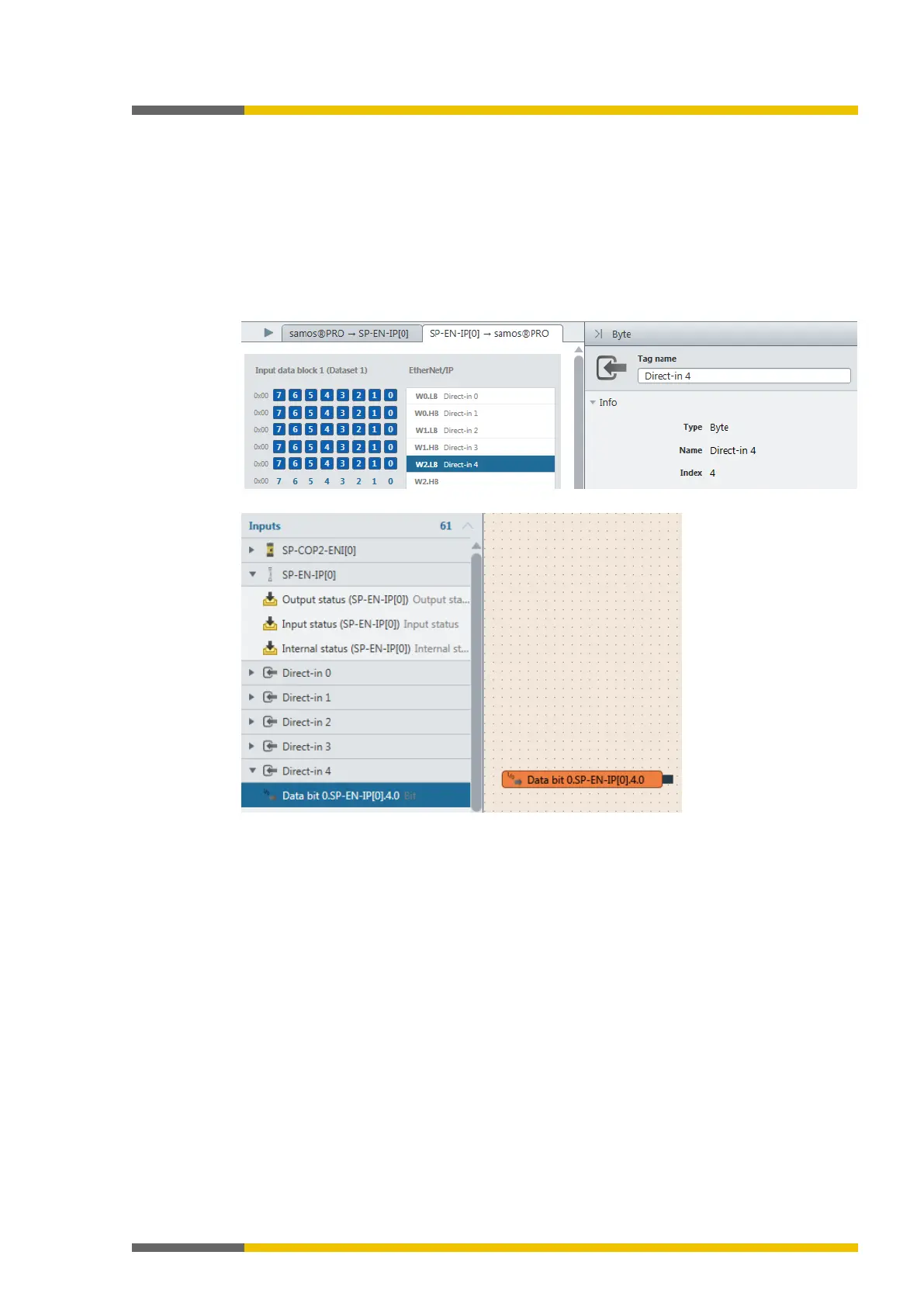

Illustration 26: Adding of a new data byte (T → O) for use in the logic editor by configuring the tag name.
Illustration 27: Adding gateway data elements to the logic editor in samosPLAN5+ via drag-and-drop
8.3.4
