EtherNet/IP gateway
Wieland Electric GmbH | BA000970 | 11/2016 (Rev. F)

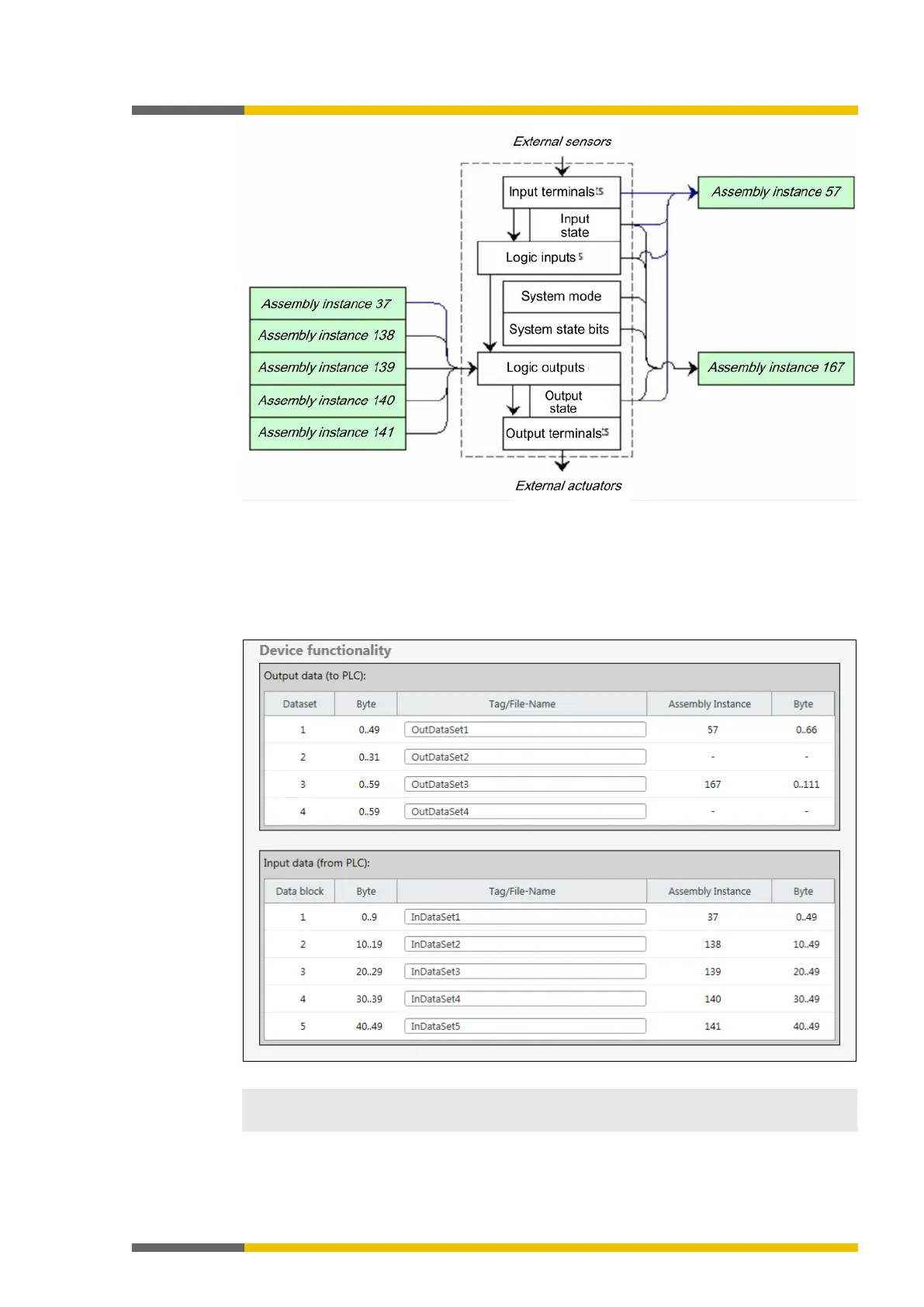

Illustration 31: Data flow when using assembly instances of the SP-COP2-ENI module
Symbolic Addressing
1127407371
In addition to the addressing of assembly instances, symbolic addressing by name is also pos-
sible by selecting connections.
In samosPLAN5+, tag names can be changed in the
tab.
Illustration 32: Configuration of symbolic names for assemblies in samosPLAN5+
The functions of the UCMM Message Client (unconnected), which can also be configured in
samosPLAN5+, are not available in the module version D-01.01.
