Configuration of gateways
Wieland Electric GmbH | BA000970 | 11/2016 (Rev. F)
46

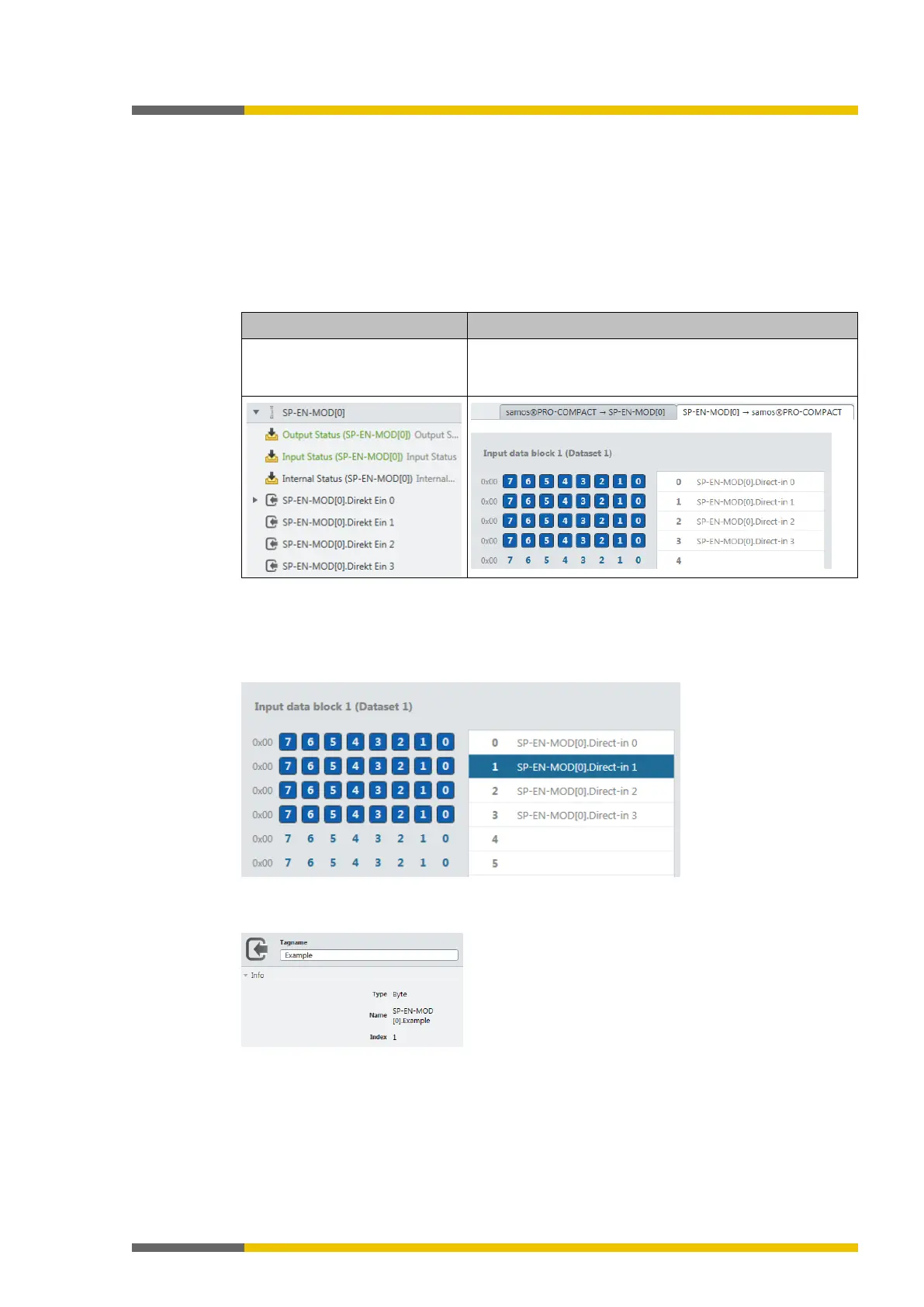

Editing the gateway input values (tab 2)
910867339
You can use the following settings for the output values of a gateway in tab 2:
Basic setting
Depending on the gateway function selected, you will find four or eight bytes in tab 2, which
are reserved as direct gateway input values. You can also see these bytes in the
Logic
view.
Example: SP-CANopen module with four predefined inputs for gateways:
"Logic" view
"Gateways" view
In the
Logic
view, you will see
these four bytes in the left side
bar under Library | Inputs:
In the
Gateways
view, these four inputs appear in the
work area of the tab 2:
Change tag names of a predefined input value
Tag names have already been pre-assigned to the predefined input values (bytes). You can
change these tag names:
 In the work area, click on the byte for which you want to change the tag names.
 If you wish to change the tag name of the byte:
Overwrite the pre-allocated tag name of the byte with the desired new value in the confi-
guration dialog.
