Configuration of gateways
Wieland Electric GmbH | BA000970 | 11/2016 (Rev. F)
45

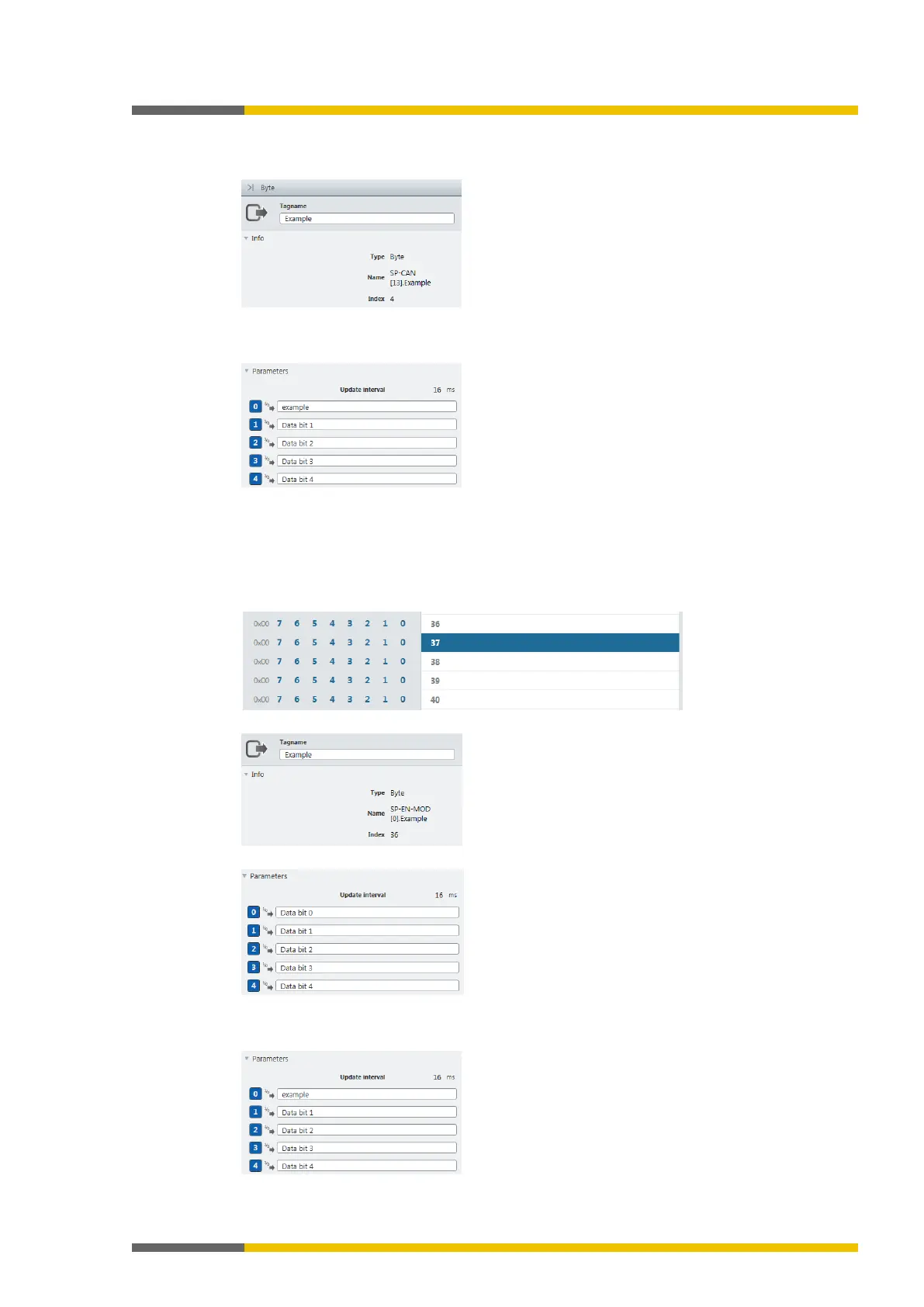

 If you wish to change the tag name of the byte:
Overwrite the pre-allocated tag name of the byte with the desired new value in the confi-
guration dialog.
 If you also want to change the tag names of individual bits:
Overwrite the pre-allocated values with the desired new value under
Parameters
in the
configuration dialog.
In the
Logic
view, these bits will appear with the corresponding tag names.
Configuring additional direct gateway output values
You can add new output values (bytes) in addition to the pre-allocated output values in the
work area.
 Click on an empty byte in the work area.
 Allocate a tag name to the byte in the right side bar.
⇨ Tag names for all bits are automatically pre-allocated under
Parameters
.
 If you also want to change the tag names of individual bits:
Overwrite the pre-allocated values with the desired new value under
Parameters
in the
configuration dialog.
In the
Logic
view, these bits will appear with the corresponding tag names.
