PROFINET configuration of the gateway - how the data are
transferred
1031279627
The following steps are required to configure the communication between the PLC and the ga-
teway.
This documentation does not address the installation of the PROFINET IO network or the
other components of the automation system project in the network configuration tool. It is
assumed that the PROFINET project in the configuration program, e.g. the SIEMENS TIA
Portal, has already been set up. The examples presented are based on configurations created
with the help of the SIEMENS TIA Portal.
Step 1: Install the device master file (GDSML file)
Before the SP-COP2-ENI module can be used for the first time as part of the network configu-
ration tool, e.g. the SIEMENS TIA Portal, the device master file (GSDML file) of the gateway
must first be installed in the hardware catalog of the tool.
Download the GSDML file and the equipment symbol from the product site of the SP-
COP2-ENI module (https://eshop.wieland-electric.com/).
Follow the instructions for the installation of GSD files in the online help section or in the
user manual for the PROFINET network configuration tool.

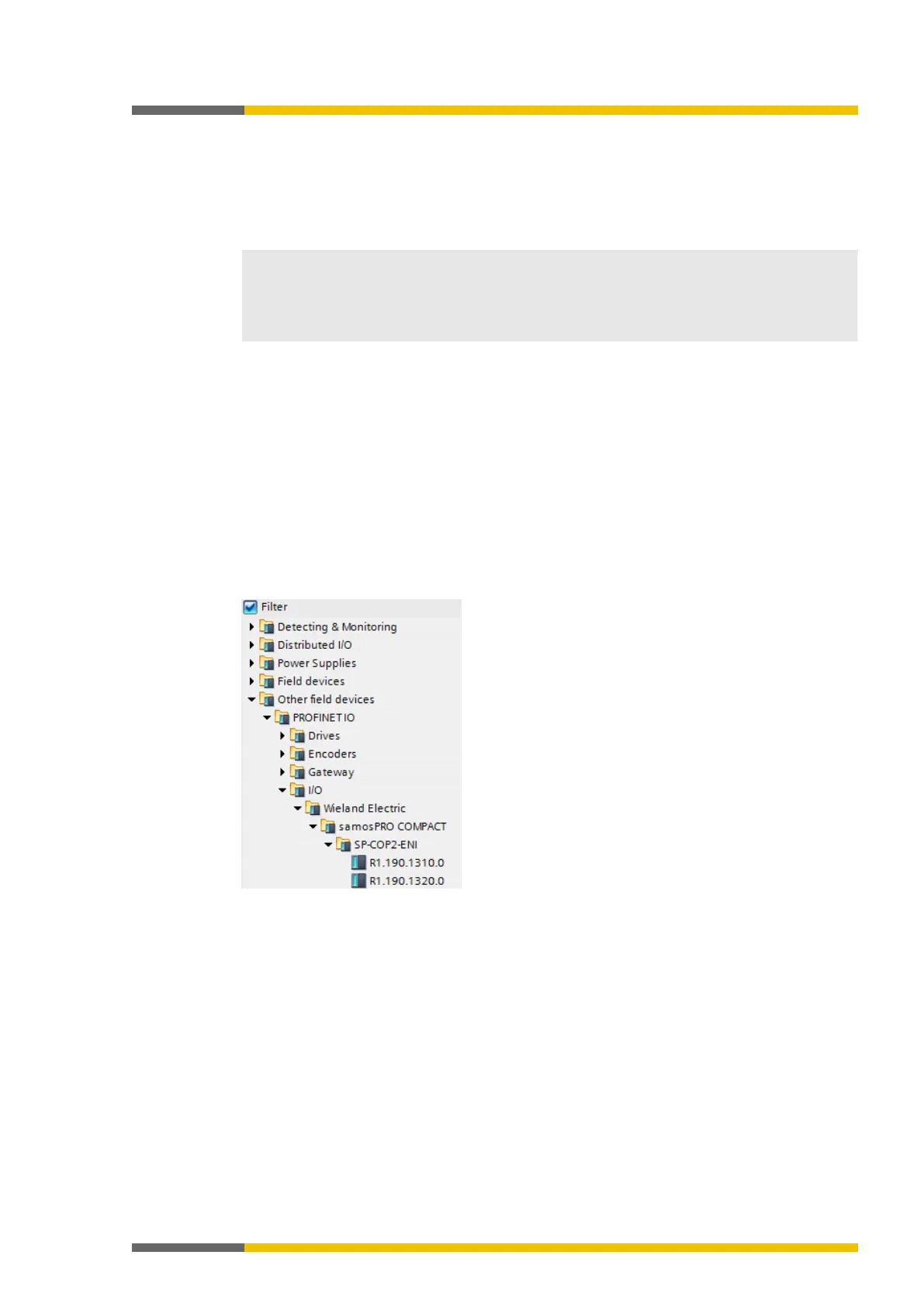

If you are using SIEMENS TIA Portal, then the SP-COP2-ENI module appears in the following
location in the hardware catalog:
Additional field devices > PROFINET IO > I/O > Wieland Electric > samosPRO COMPACT
> Head module > SP-COP2-ENI
