Wieland samos PRO COMPACT - Interfaces and Operation

EtherCAT Gateway
Wieland Electric GmbH | BA000970 | 11/2016 (Rev. F)
167
Interfaces and operation
1039105291
Operation and display elements

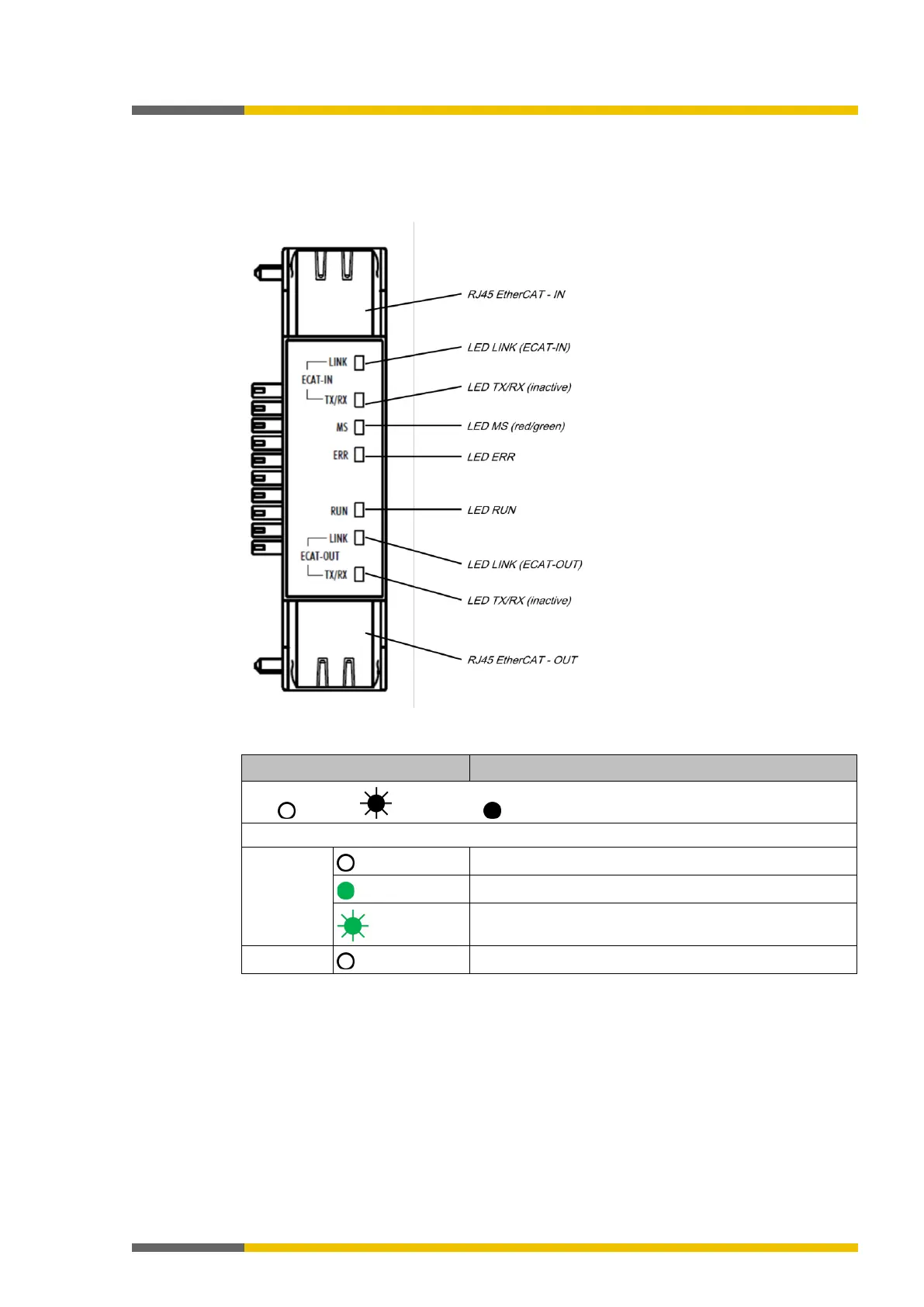

Illustration 57: Operating and display elements of the SP-EN-ETC module
Table 114: Meaning of the state LEDs on the SP-EN-ETC module
LED
Meaning
Key: LED off / LED flashes / LED lights up
ECAT-IN
LINK
Off
No EtherCAT device connected, no connection.
Green
EtherCAT device connected.
Green
Communication with connected EtherCAT device
TX/RX
Off
Not used
11.1
