Wieland samos PRO COMPACT - Basic Configuration of the Controller Module

EtherNet/IP gateway
Wieland Electric GmbH | BA000970 | 11/2016 (Rev. F)
81
Basic configuration of the controller module
1127330699
The integrated gateway SP-EN-IP (EtherNet/IP gateway) is a component part of the SP-COP2-
ENI module and can be activated in the samosPLAN5+ software (
Hardware
view):

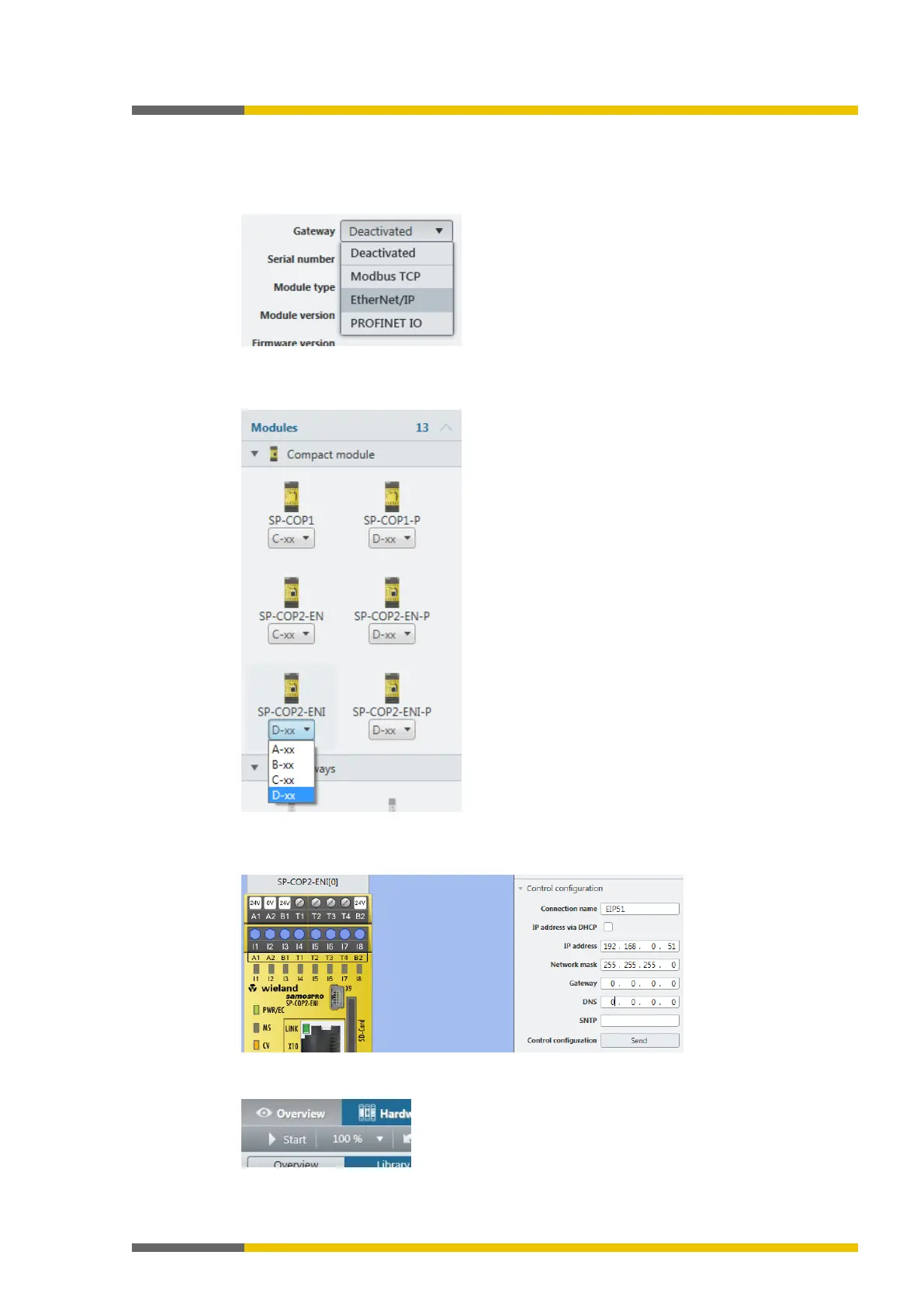

Illustration 20: Activation of EtherNet/IP in samosPLAN5+
Selection of the SP-EN-IP gateway is possible for modules of type SP-COP2-ENI from version
D-01.01.
Illustration 21: Selection of the module type for EtherNet/IP in samosPLAN5+
The IPv4 data of the SP-COP2-ENI module can be adapted to the PLC settings in samos-
PLAN5+. During transmission of the IPv4 data, the device may not be in
Run
mode.
Illustration 22: Setting of the IPv4 device data in samosPLAN5+
If necessary, stop the device using the
Start/Stop
button:
Illustration 23: If the “Start” button is displayed, the device is not in “Run” mode.
