Configuration of gateways
Wieland Electric GmbH | BA000970 | 11/2016 (Rev. F)
47
 If you also want to change the tag names of individual bits:
Overwrite the pre-allocated values with the desired new value under
Parameters
in the
configuration dialog.
In the
Logic
view, these bits will appear with the corresponding tag names.

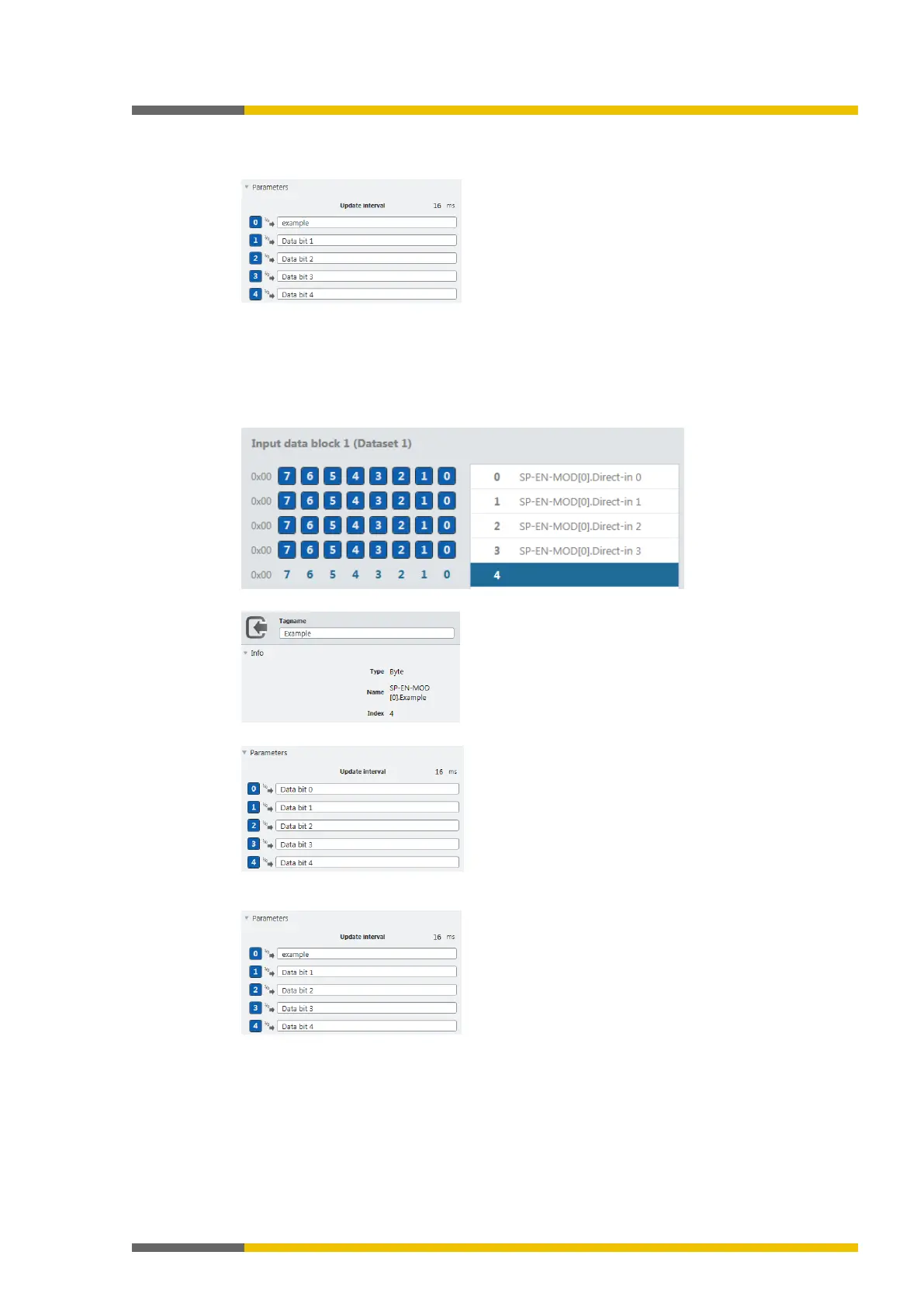

Configuring additional gateway input values
You can add new input values (bytes) in addition to the pre-allocated input values in the work
area.
 Click on an empty byte in the work area.
 Allocate a tag name to the byte in the right side bar.
⇨ Tag names for all bits are automatically pre-allocated under Parameters.
 If you also want to change the tag names of individual bits:
Overwrite the pre-allocated values with the desired new value under
Parameters
.
In the
Logic
view, these bits will appear with the corresponding tag names.
