EtherCAT Gateway
Wieland Electric GmbH | BA000970 | 11/2016 (Rev. F)
After you have connected the controller – i.e. the EtherCAT master to the EtherCAT slaves –
you can scan the connected slaves.

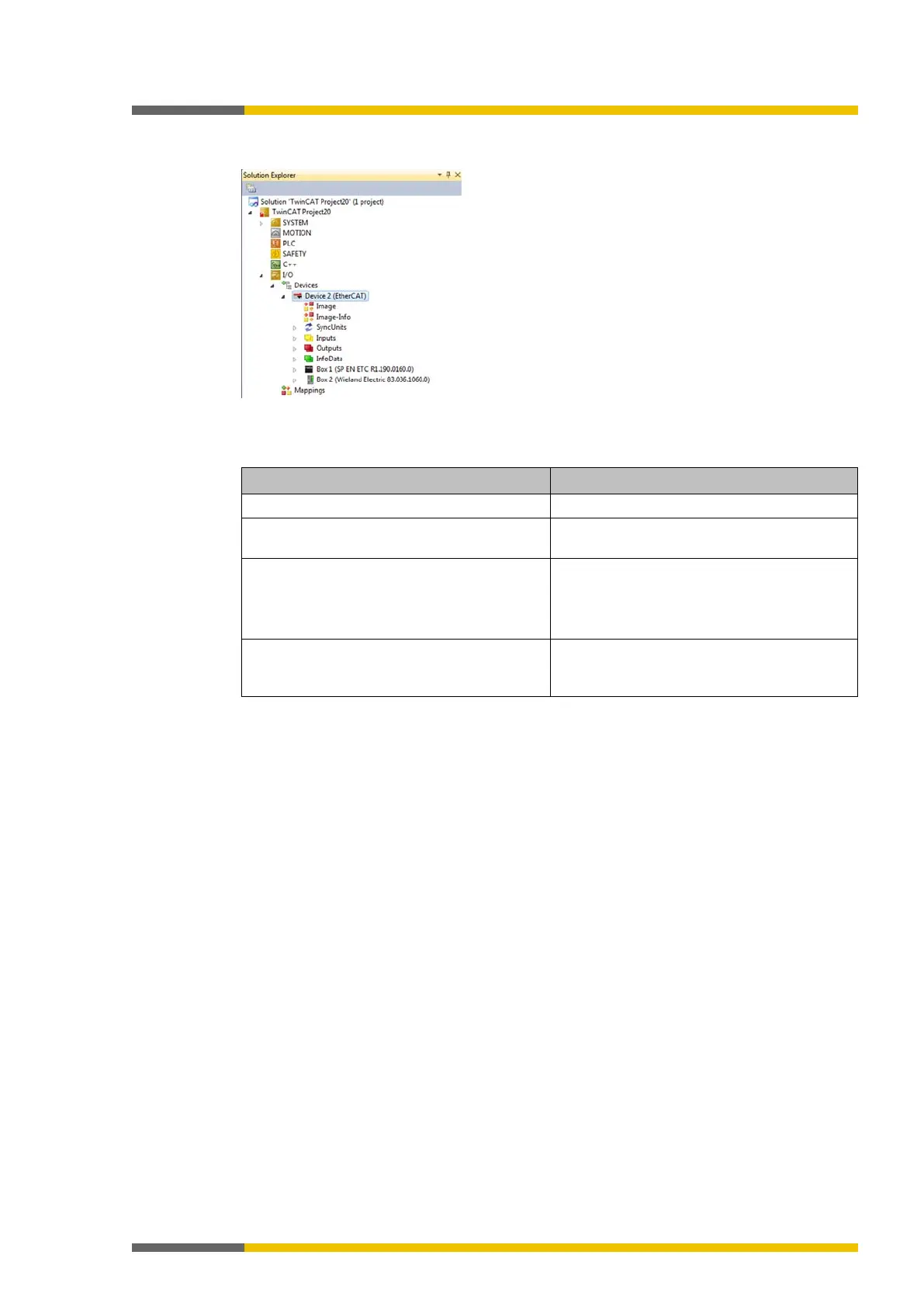

TwinCAT shows the found slaves in the Solution Explorer as a box with the corresponding de-
vice names.
Table 126: Error
Box is displayed with no device names.
No EtherCAT slave (box) is displayed. Modules are not connected to the EtherCAT
master or are not powered.
The input data (inputs) are not up to date or
all have the value 0.
The controller module is at stop or no data
was mapped to output data set 1.
Data sets 2 and 3 are displayed once the
controller module is in the RUN state.
The output data (outputs) is transmitted to the
gateway but not displayed in the input data
No tags have been created in the input data
set.
