Operation
4002−2/A1
Winterthur Gas & Diesel Ltd.
3/ 37
5
EMERG.
STOP
AST. AHD.
RPM
1
2
4
3
POWER
STATUS
PUSH SELECT
E25
1
FREE END
WCH02226

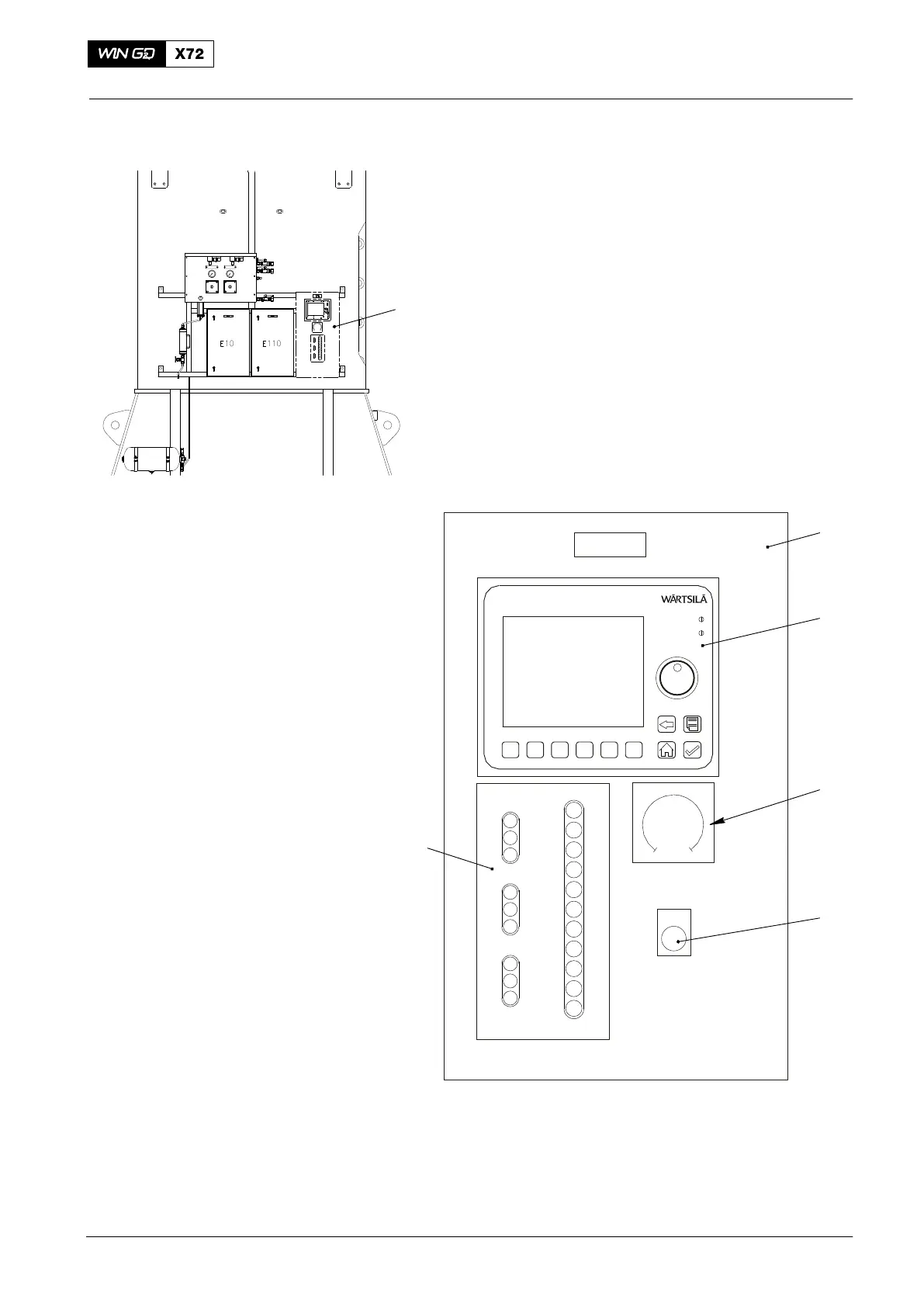

Fig. 1: Local Control Panel − Location
1 Local control panel 4 Emergency stop button
2 LDU−20 5 Telegraph receiver
3 ME tachometer
Local Control Panel / Local Display Unit (LDU−20)
