Operation
4002−2/A1
Winterthur Gas & Diesel Ltd.
29/ 37
3.15 Log Messages
You can use the Filters field (7, Fig. 15) to filter the list of log messages to only show
specified types of messages.
2 3 41
5
8
6
7

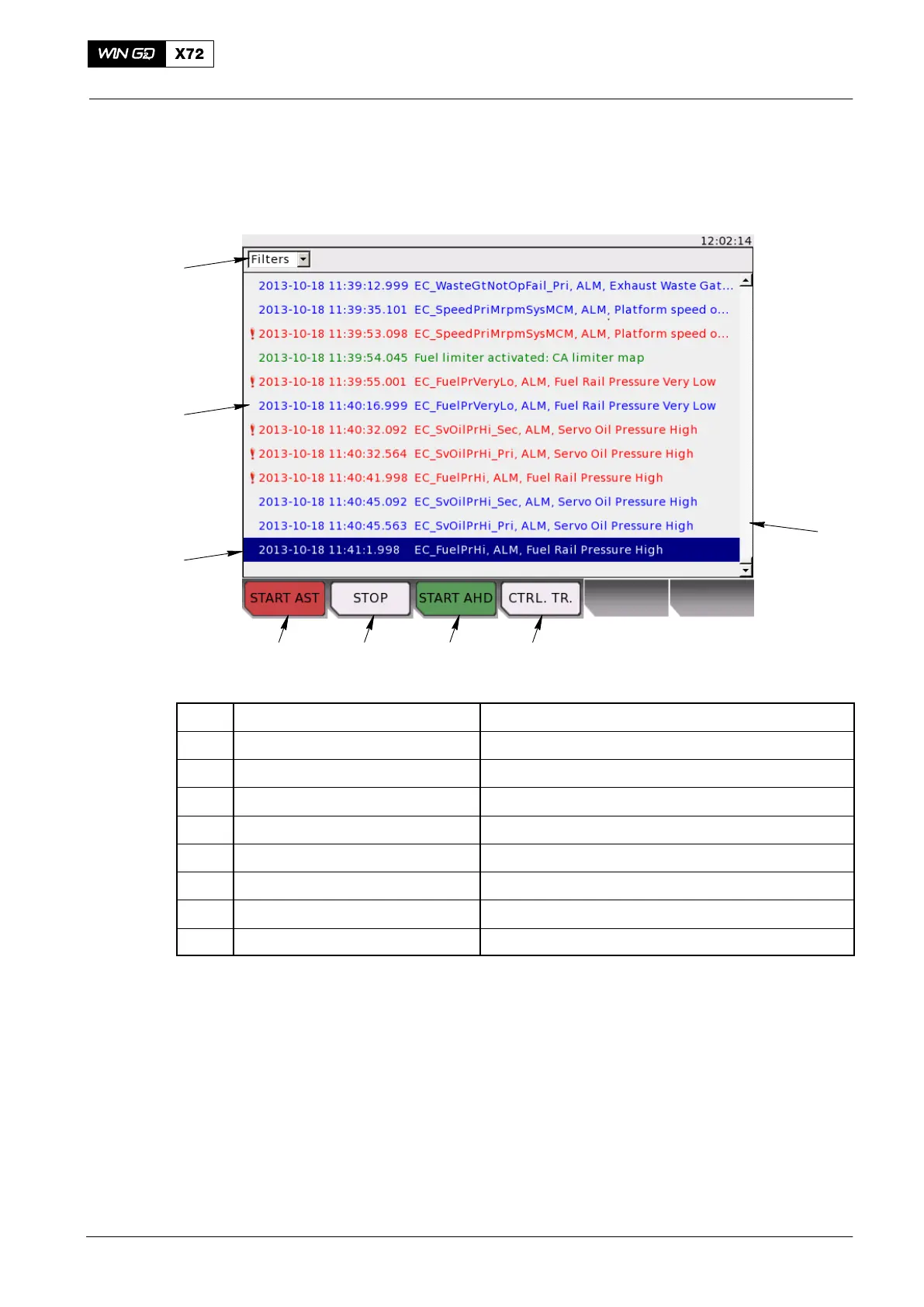

Fig. 17: Log Messages
Item Function Effect / Procedure
1 START AST button Start the engine in astern direction
2 STOP button Stop the engine
3 START AHD button Start the engine in ahead direction
4 CTRL. TR. button Request a control transfer to this LDU
5 List of log messages Latest message on the bottom of the list
6 Selected log message Highlighted with blue background
7 Filter setting Use the BACK button
8 Scroll bar Scroll through the log messages
To change the filter settings, do step 1) to 6).
1) Push the BACK button to put the cursor on the Filters field, then push the rotary
button to display the list of available filters e.g. All/Safety/Event/Info/Error.
2) Use the rotary button to move the cursor up or down in the list of available filters.
3) Push the rotary button to select or deselect the filters.
4) Push the BACK button two times to move the cursor back to the list of log
messages.
5) Use the rotary button to scroll the list up or down.
6) When the cursor (a blue highlight in the list) is on a selected log message, you
push the rotary button. This shows a different screen, which has more data about
this log entry (see Fig. 16).
Local Control Panel / Local Display Unit (LDU−20)
2015-03
