Operation
4002−2/A1
Winterthur Gas & Diesel Ltd.
25/ 37
3.12 Temperatures − Cylinder Liner Wall and Exhaust Gas
2 3 41
11
12
10
WCH03172
8
9
7
5
6

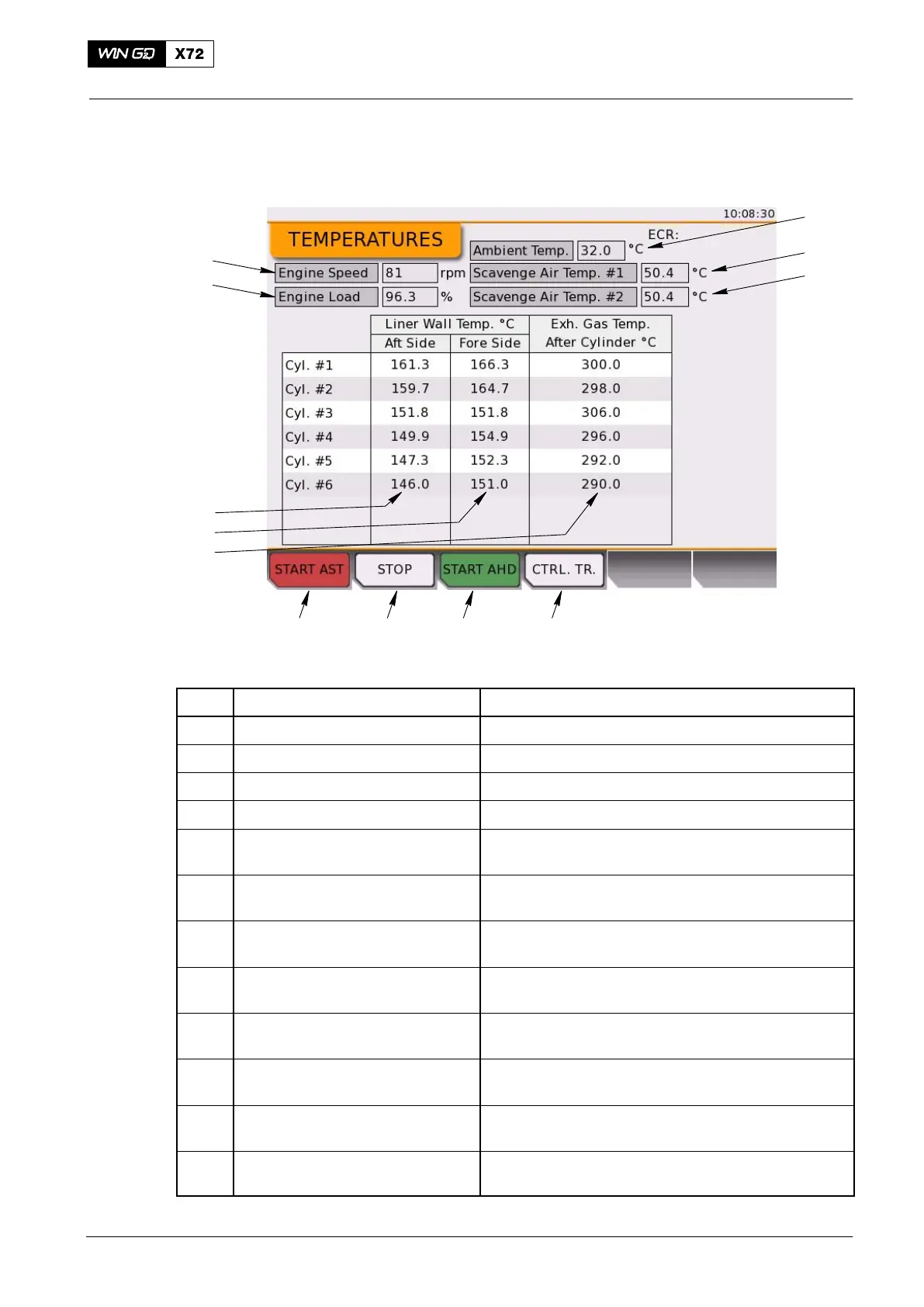

Fig. 14: Temperature − Cylinder Liner Wall and Exhaust Gas
Item Function Effect / Procedure
1 START AST button Start the engine in astern direction
2 STOP button Stop the engine
3 START AHD button Start the engine in ahead direction
4 CTRL. TR. button Request a control transfer to this LDU
5 Scavenge air temperature #2 Shows the scavenge air temperature #2 in the
scavenge air receiver in degree Celsius (_C)
6 Scavenge air temperature #1 Shows the scavenge air temperature #1 in the
scavenge air receiver in degree Celsius (_C)
7 Ambient temperature Shows the suction air temperature in degree
Celsius (_C)
8 Engine speed Shows the engine speed in revolutions per
minute (rpm)
9 Engine load Shows the engine load or estimated engine power in
percent (%)
10 Liner wall temperature AFT side
at cylinder #n
Shows the cylinder liner wall temperature at aft side
of the engine for each cylinder.
11 Liner wall temperature FORE side
at cylinder #n
Shows the cylinder liner wall temperature at fore
side of the engine for each cylinder.
12 Exhaust gas temperature after
cylinder #n
Shows the exhaust gas temperature after each
cylinder.
Local Control Panel / Local Display Unit (LDU−20)
2015-12
