Operation
4002−2/A1
Winterthur Gas & Diesel Ltd.
23/ 37
3.11 Performance Data
2 3 41
17
18
19
20
21
22
WCH03170
16
23
15
13
14
12
10
11
9
7
8
6
5

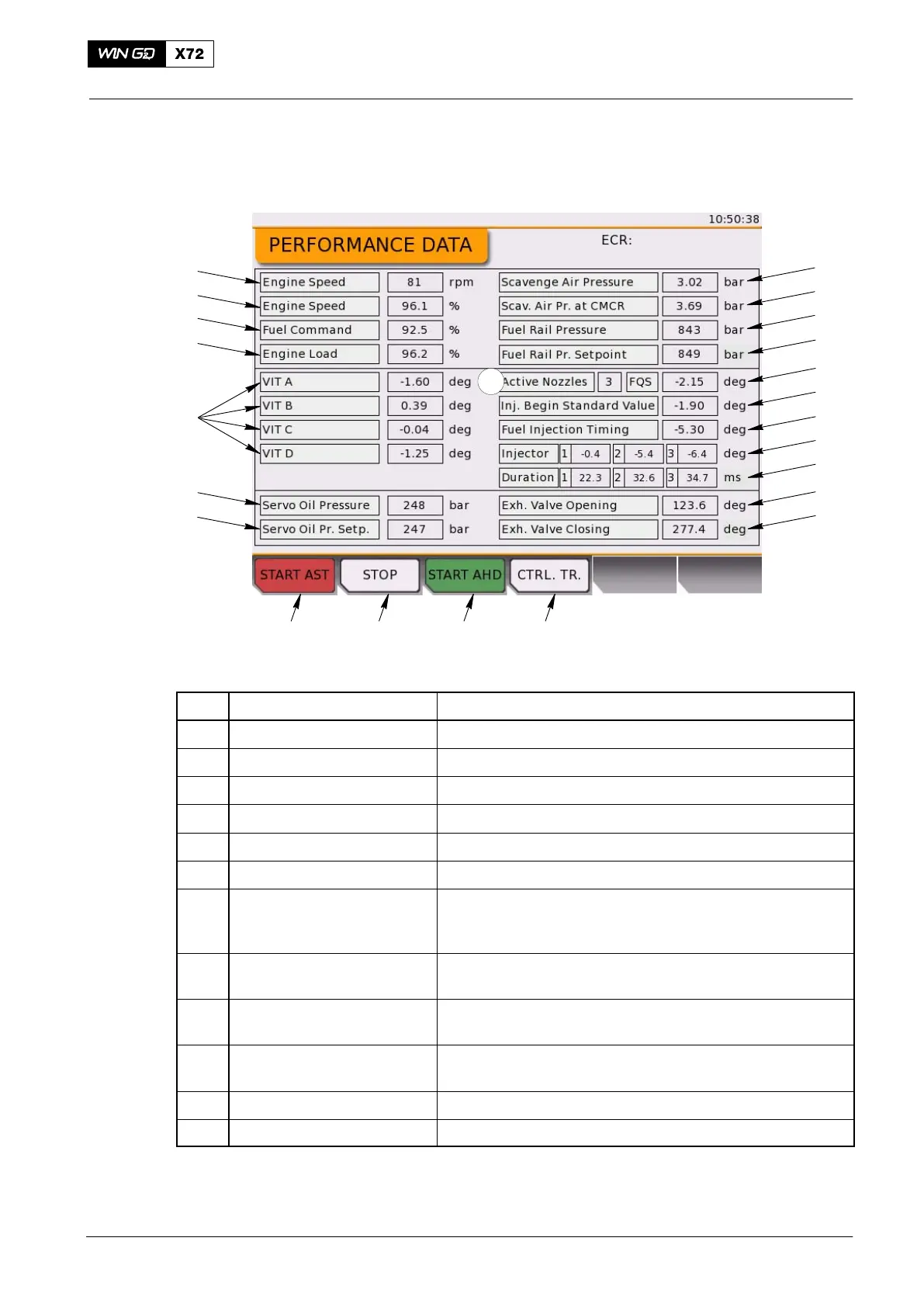

Fig. 13: Performance Data Page
Item Function Effect / Procedure
1 START AST button Start the engine in astern direction
2 STOP tab Stop the engine
3 START AHD button Start the engine in ahead direction
4 CTRL. TR. button Request a control transfer to this LDU
5 Exhaust valve closing Shows the exhaust valve closing angle in degree (deg)
6 Exhaust valve opening Shows the exhaust valve opening angle in degree (deg)
7 Duration Shows the duration of the fuel injection for main fuel
injector#1, main fuel injector #2 and main fuel injector#3 in
milliseconds (ms)
8 Injector timing Shows the injection timing for main fuel injector #1, main
fuel injector#2 and main fuel injector#3 in degree (deg)
9 Fuel injection timing Shows the fuel injection timing (injection begin) in
degree (deg)
10 Injection begin standard
value
Shows the injection begin standard value in degree (deg)
11 Fuel quality setting (FQS) Shows the used fuel quality setting (FQS)
12 Fuel rail pressure setpoint Shows the fuel rail pressure setpoint in bar
Local Control Panel / Local Display Unit (LDU−20)
2015-12
