Operation4002−2/A1
Winterthur Gas & Diesel Ltd.
36/ 37
3.19 Ethernet
1
9
8 7
2
3
4
5
6
1
2
3
4
5
6

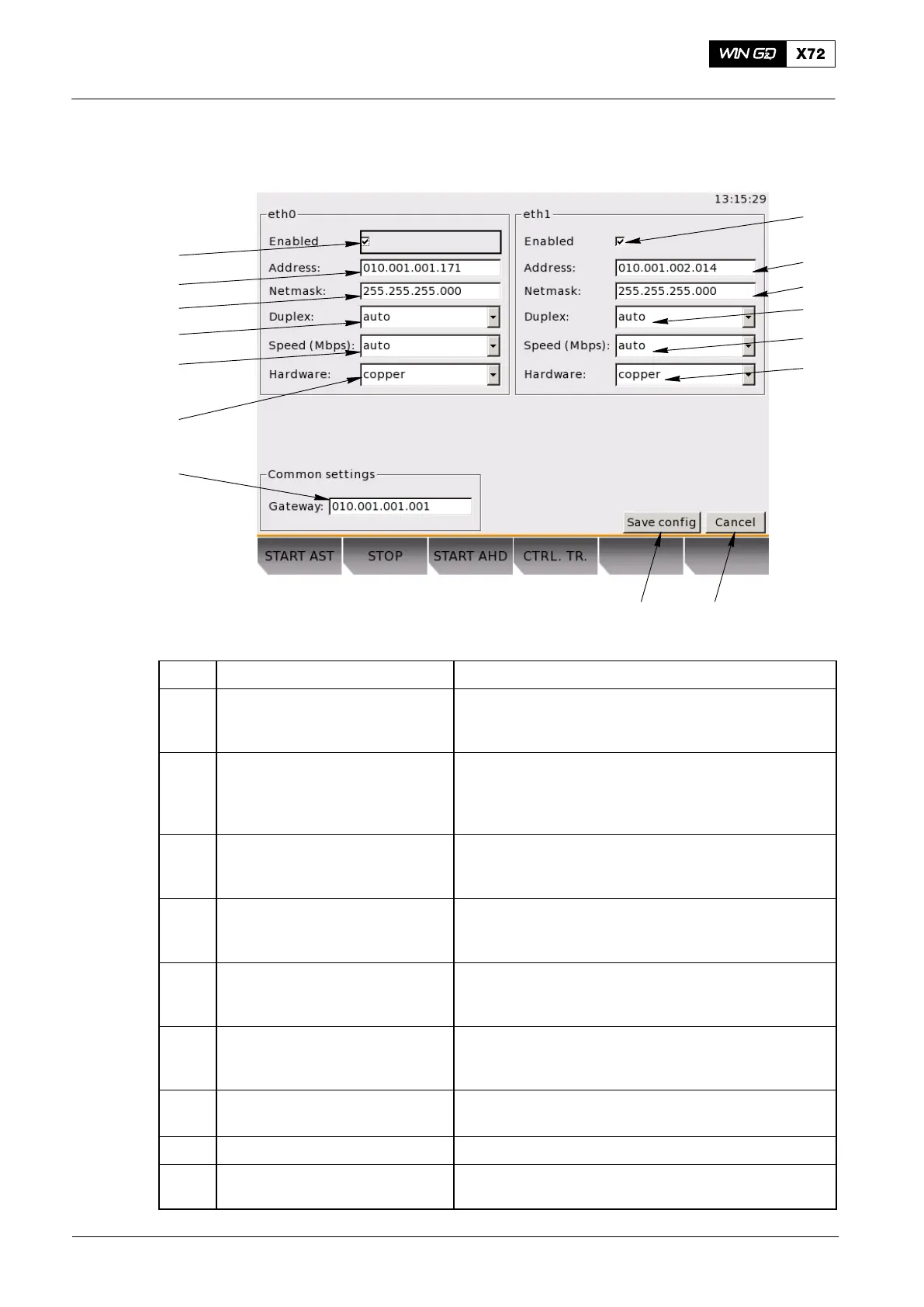

Fig. 23: Ethernet Page
Item Function Effect / Procedure
1 Enable/Disable ethernet ports eth0 = plug X31
eth1 = plug X32
The two ports must be enabled by default
2 Address field Configure TCP/IP address for each ethernet port
Default settings:
LDU−20 Local: eth0 = 10.1.1.171 eth1 = 10.1.2.14
LDU−20 ECR: eth0 = 10.1.1.173 eth1 = 10.1.2.14
3 Netmask field Configure TCP/IP netmask
Default 255.255.255.000 for the two ports on each
LDU−20
4 Duplex field Configure ethernet duplex mode
Can be: half, full or auto
Default is: auto
5 Speed (Mbps) field Configure ethernet speed
Can be: 10, 100 or auto
Default is: auto
6 Hardware field Choose ethernet hardware interface
Can be: copper or fiber
Default is: copper
7 Cancel button Reject the changes and go back to the last saved
settings
8 Save config button Save the configuration settings
9 Gateway field Configure TCP/IP gateway address
Default is 10.1.1.1
Local Control Panel / Local Display Unit (LDU−20)
2015-03
