5.1 Global Buttons and Status Indications

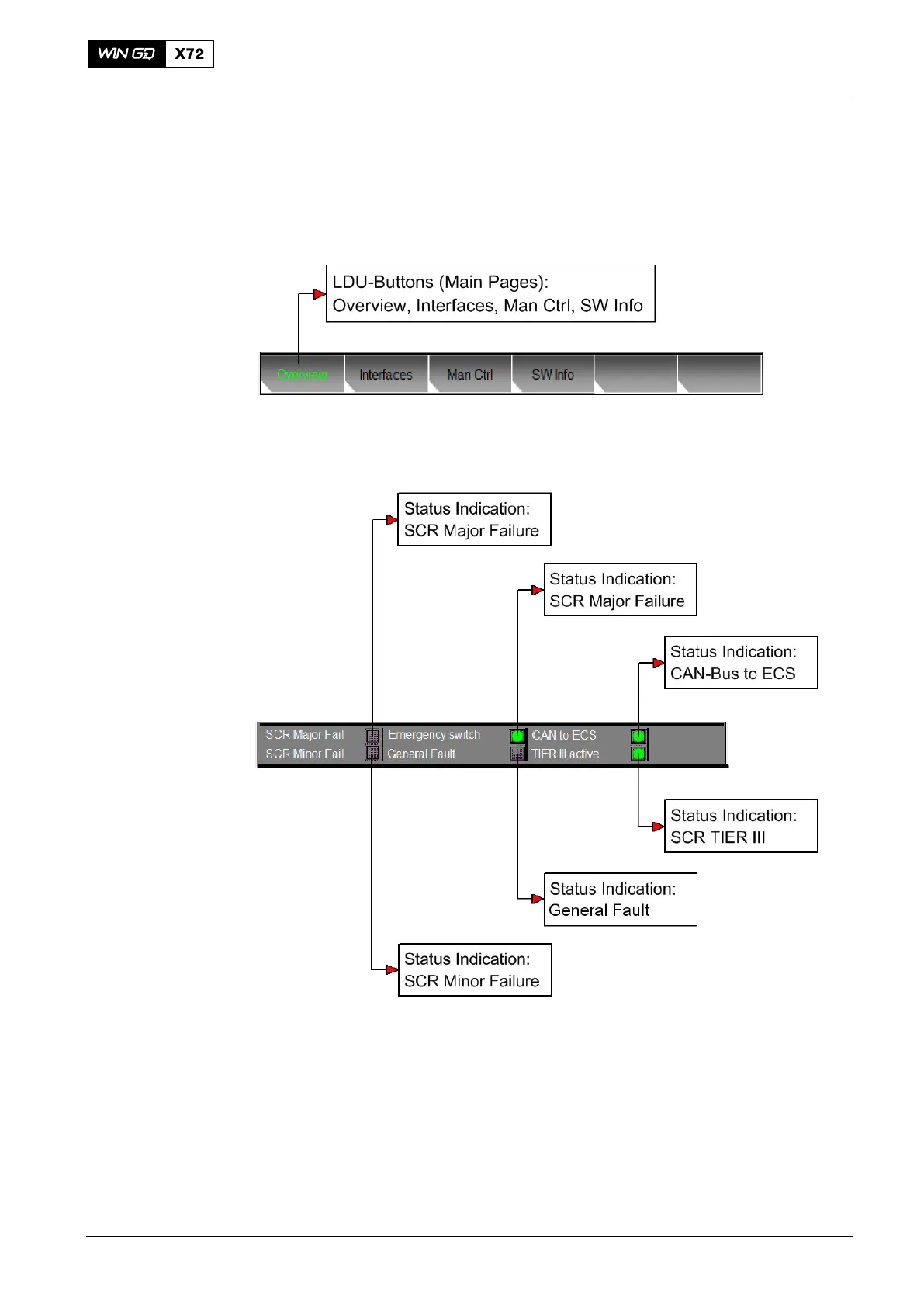

Fig. 14 and Fig. 15 show the global buttons and status indications that are available at
the bottom of each LDU page.
WCH03730
Fig. 14: LDU Global Buttons
WCH03731
Fig. 15: LDU Status Indications
