2.3 SCR Usual Operation (Tier III)
While the SCR operates in the usual load range, the full exhaust mass flow goes
through the SCR reactor. Valves V1 and V2 are fully open. Valve V3 is fully closed,
see Fig. 5.
The System operates valves V4 to decrease sudden changes in scavenge air
pressure.
The remaining valves stay closed.
Engine
V1
V2
V3
V7
V4
Turbocharger
SCR Reactor
Air pipes − flow
Exhaust pipes − no flow
Exhaust pipes − flow
WCH03723

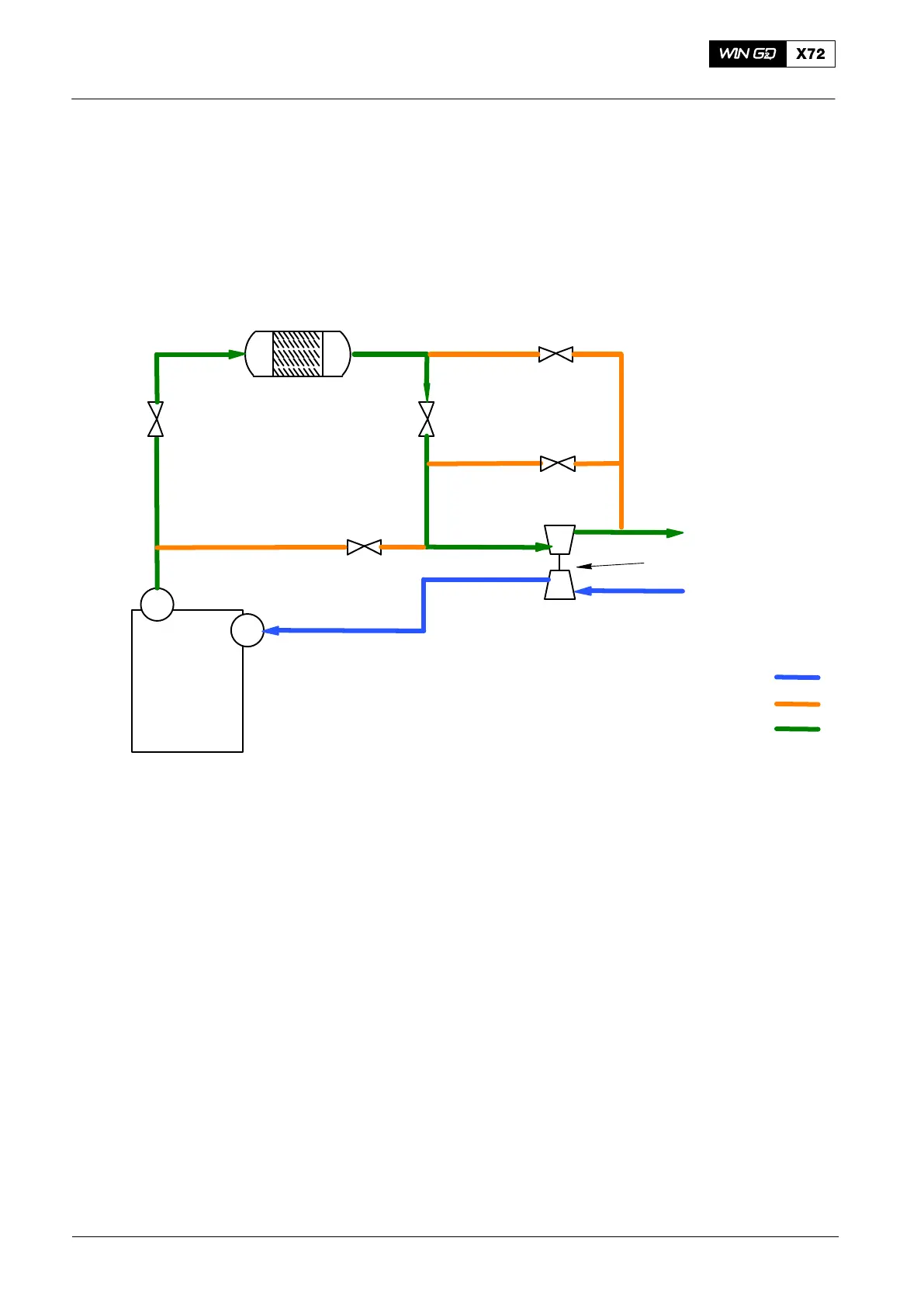

Fig. 5: SCR Operation in Usual Load Range
