Operation
4003−1/A1
Winterthur Gas & Diesel Ltd.
3/ 11
3.5 Control Transfer
There are different steps necessary to successfully transfer the signal from one
control panel to another. Not all four different transfer modes are always applicable.
For more details, refer to the schematic diagram shown in Fig. 1.
The list that follows shows the four possible transfer modes (with the related steps):
1) Target request
► Origin agreement ► Target acceptance
2) Origin proposal
► Target acceptance
3) Target acquisition
► Origin acknowledgment
4) Target acquisition
Bridge
ECR Auto ECR Manual
Local
3
1,2
3
4
4
3
3,4
1,2,4
1,2
2,3
The numbers shown in
the diagram refer to the
list given above.

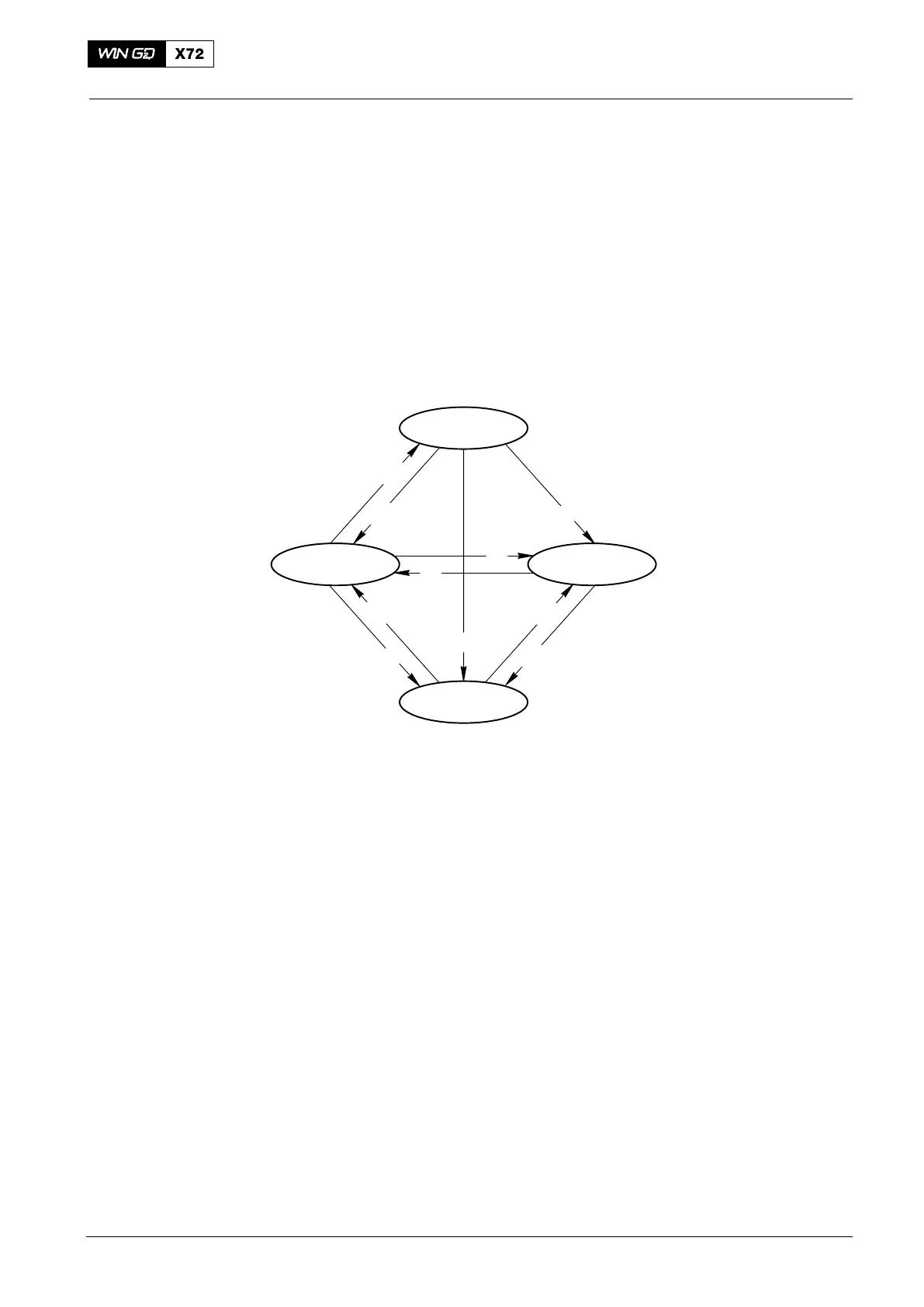

Fig. 1: Control Transfer − Schematic Diagram
2015-12
Engine Control
