3.6 Cylinder Balancing
The cylinder balancing page shows data about the combustion process for each
cylinder and related sensor indications (see Fig. 7). For more data about the cylinder
balancing, see 9308−1 Intelligent Combustion Control.
2 3 41
WCH03166
8
6
15
18
16
17
9
11
12
7
5
10
13
14

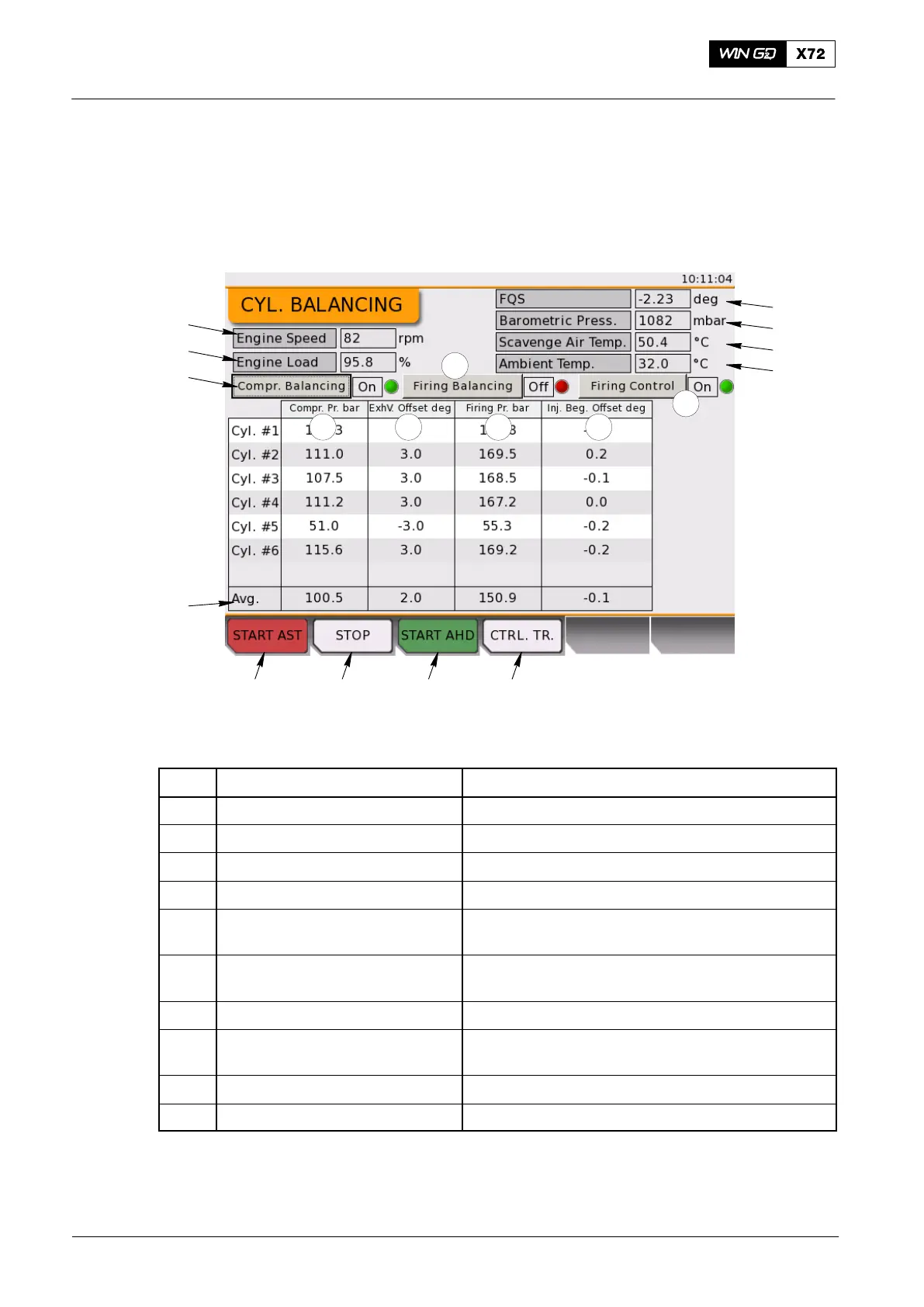

Fig. 8: Cylinder Balancing Page
Item Function Effect / Procedure
1 START AST button Start the engine in astern direction
2 STOP tab Stop the engine
3 START AHD button Start the engine in ahead direction
4 CTRL. TR. button Request a control transfer to this LDU-20
5 Ambient temperature Shows the suction air temperature in degree
Celsius (_C)
6 Scavenge air temperature Shows the scavenge air temperature in degree
Celsius (_C)
7 Barometric pressure Shows the barometric pressure in millibar (mbar)
8 Fuel quality setting (FQS) Shows the used fuel quality setting (FQS). See also
paragraph 3.10 User Parameters.
9 Firing control status Shows either OFF or ON
10 Firing balancing status Shows either OFF or ON
