WinGD X72 - Cylinder Lubrication

Operation4002−2/A1
Winterthur Gas & Diesel Ltd.
18/ 37
3.9 Cylinder Lubrication
Manual lubrication can be used to inject a specified number of lubricating oil pulses to
the cylinders before engine start (see Fig. 10).
2 3 41
WCH03169
13
14
15
10
5 6 7 8 9
11
12

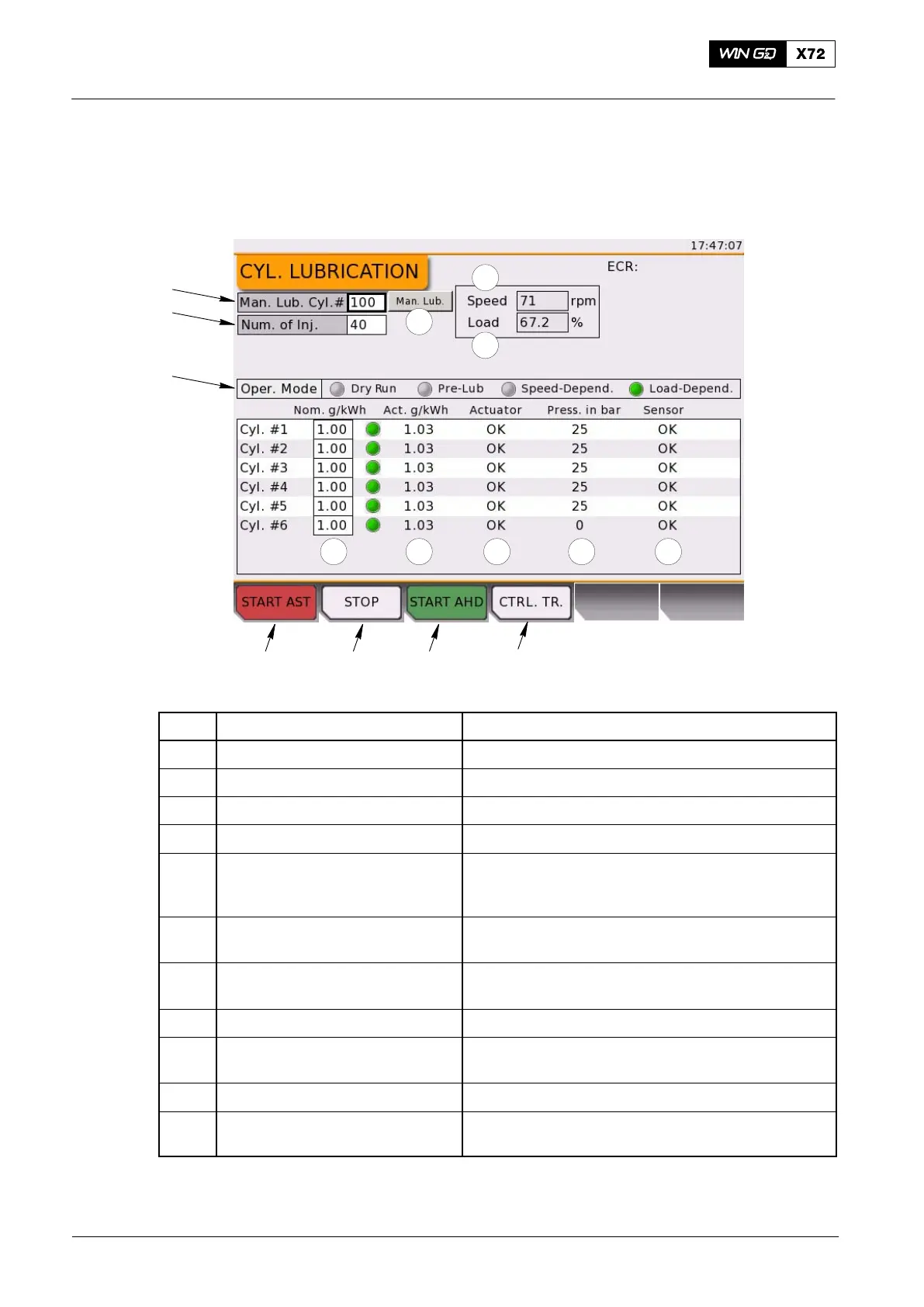

Fig. 11: Cylinder Lubrication
Item Function Effect / Procedure
1 START AST button Start the engine in astern direction
2 STOP button Stop the engine
3 START AHD button Start the engine in ahead direction
4 CTRL. TR. button Request a control transfer to this LDU
5 Nominal feed rate of cylinder at
CMCR
Sets the nominal lubrication feed rate in g/kWh. The
value shown does not relate to the manual lube
adjustment.
6 Actual feed rate per cylinder Shows the actual feed rate in g/kWh. The value is
calculated in relation to the engine load.
7 Actuator status Shows the status of the actuator. Shows either OK
or ERROR
8 Pressure Shows the lubricating oil pressure in bar.
9 Sensor status Shows the status of the sensor. Shows either OK or
ERROR
10 Engine load Shows the engine load in percent (%)
11 Engine speed Shows the engine speed in revolutions per
minute (rpm)
Local Control Panel / Local Display Unit (LDU−20)
2015-12
