WinGD X72 User Manual

Operation
7218−1/A1
Winterthur Gas & Diesel Ltd.
9/ 12
7. Lubricating Quill
Lubricating oil is injected on to the cylinder liner (3, Fig. 5) wall through the eight
lubricating quills (2) installed on the circumference of the supporting ring (see also
paragraph 8.2).
For the function of the lubricating quill (2), see 2138-1 Lubricating Quills on Cylinder
Liner.
WCH02268
2
5
3
4
FREE END
2
3
4
5
WCH02268
FUEL SIDE
1
1

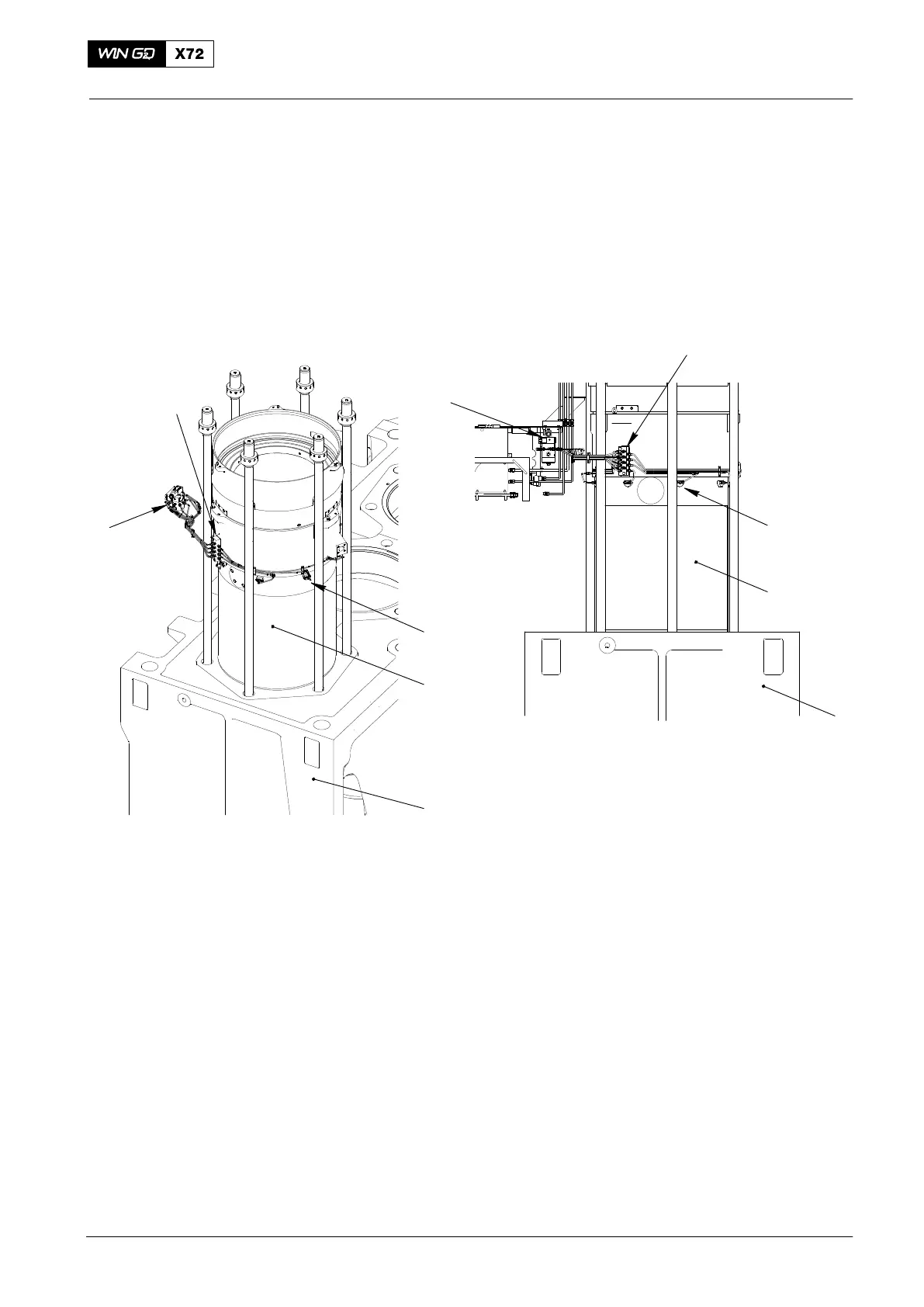

Fig. 5: Lubricating Quills
1 Connector block 4 Cylinder block
2 Lubricating quill 25-2138_CX_Y 5 Cylinder lubricating pump 25_7230_C#_1
3 Cylinder liner
2015-03
Cylinder Lubrication
