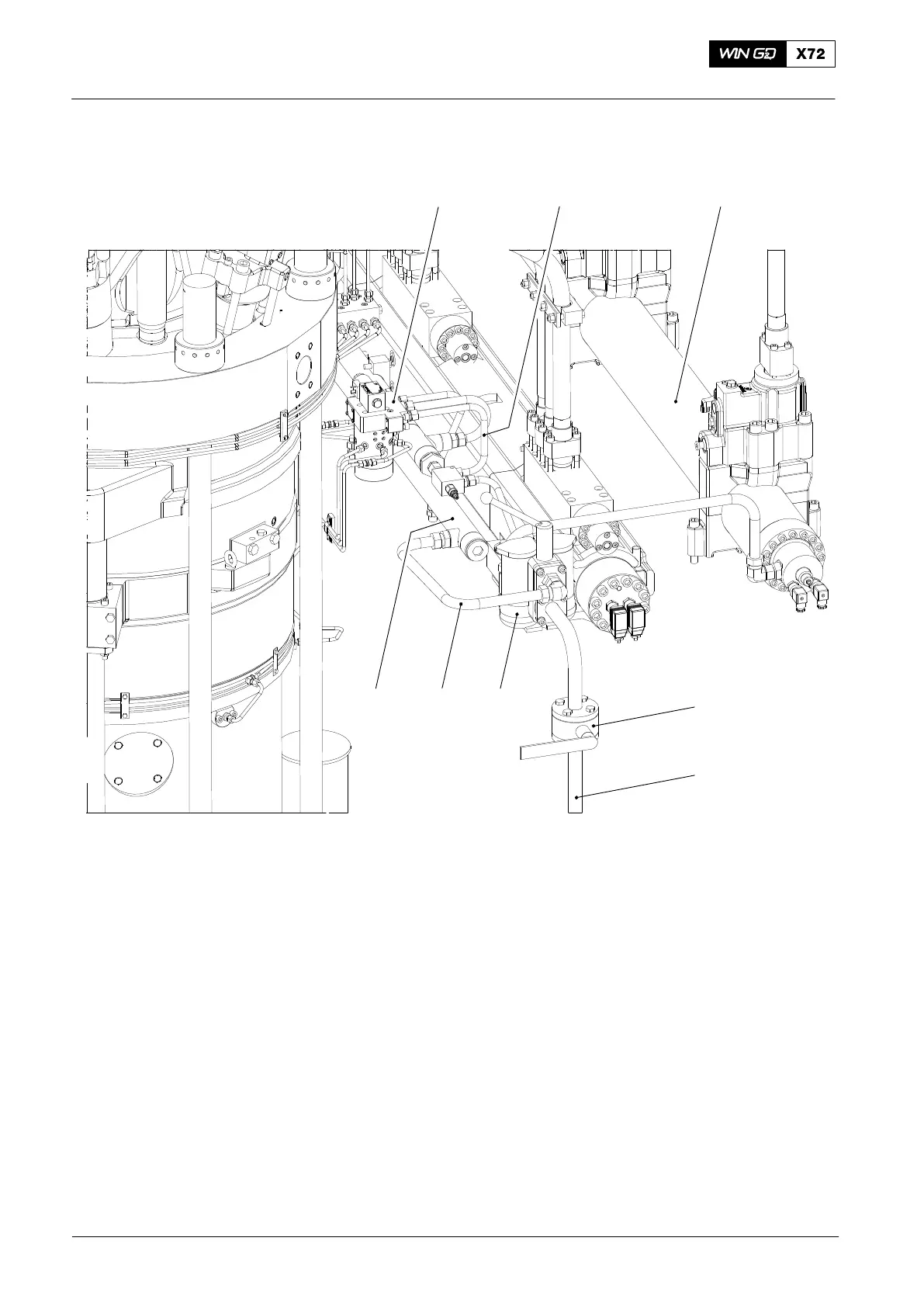

Fig. 2: Cylinder Lubricating Oil Supply
1 Cylinder lubricating pump 5 Lubricating oil inlet pipe
2 Lubricating oil inlet 6 Duplex filter
3 Servo oil rail 7 Lubricating oil inlet pipe
4 Ball valve 8 Lubricating oil supply pipe
