Operation
8019−1/A1
Winterthur Gas & Diesel Ltd.
5/ 9
4
FUEL SIDE
WCH02550
8
9
10
4
1
1
2
3
5
6
2
3
7

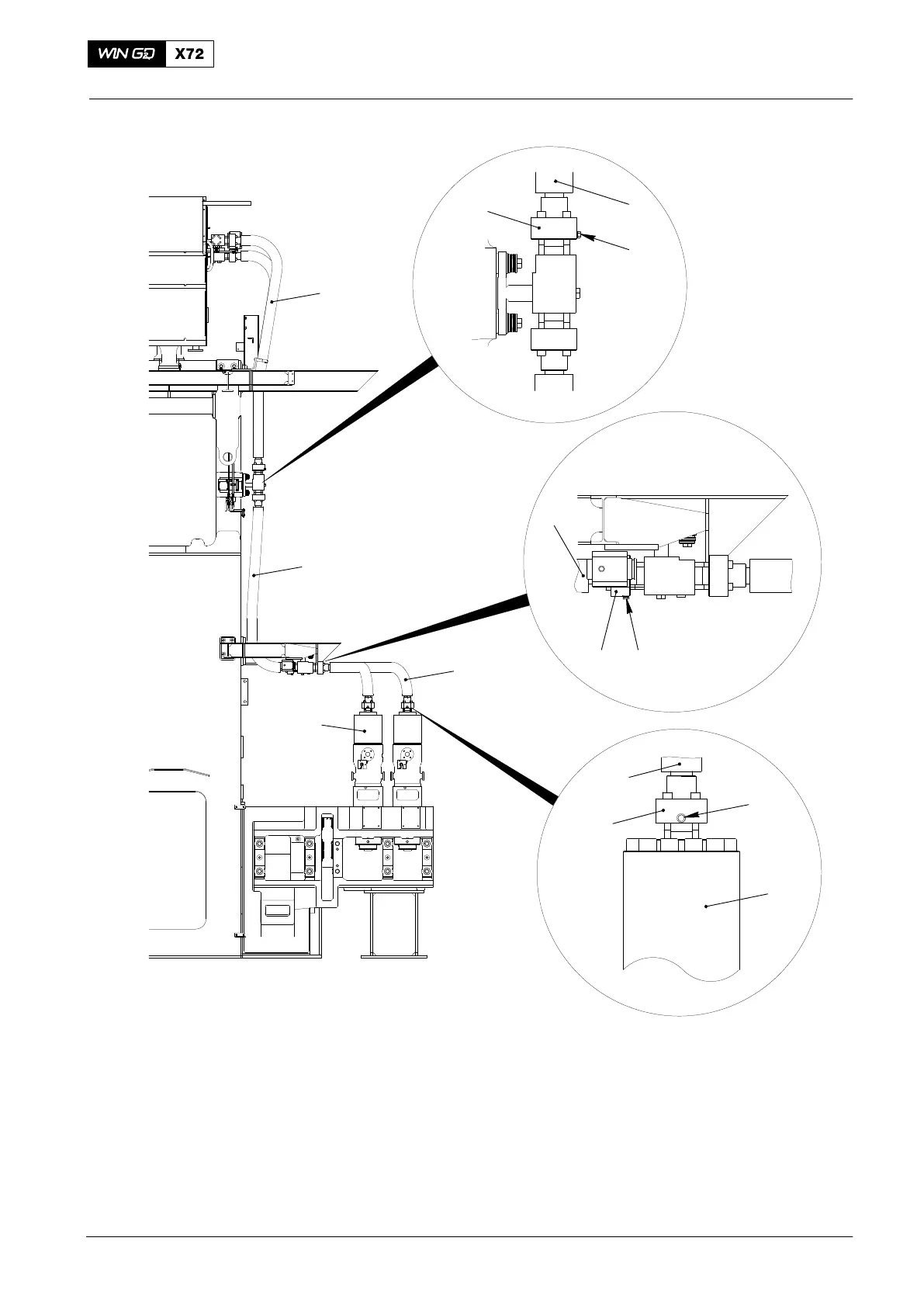

Fig. 2: Leakage Inspection Points
1 HP fuel pipes (top section) 6 Flange
2 HP fuel pipes (middle section) 7 Flange
3 HP fuel pipes (bottom section) 8 Screw plug
4 Fuel pumps 9 Screw plug
5 Flange 10 Screw plug
2014
Fuel System
