Maintenance
1224−1/A1
Winterthur Gas & Diesel Ltd.
3/ 7
8) Attach the link (94321) to the chain blocks (H1, H2, Fig. 3).
9) Connect the manual ratchet (H3) to the link (94321).

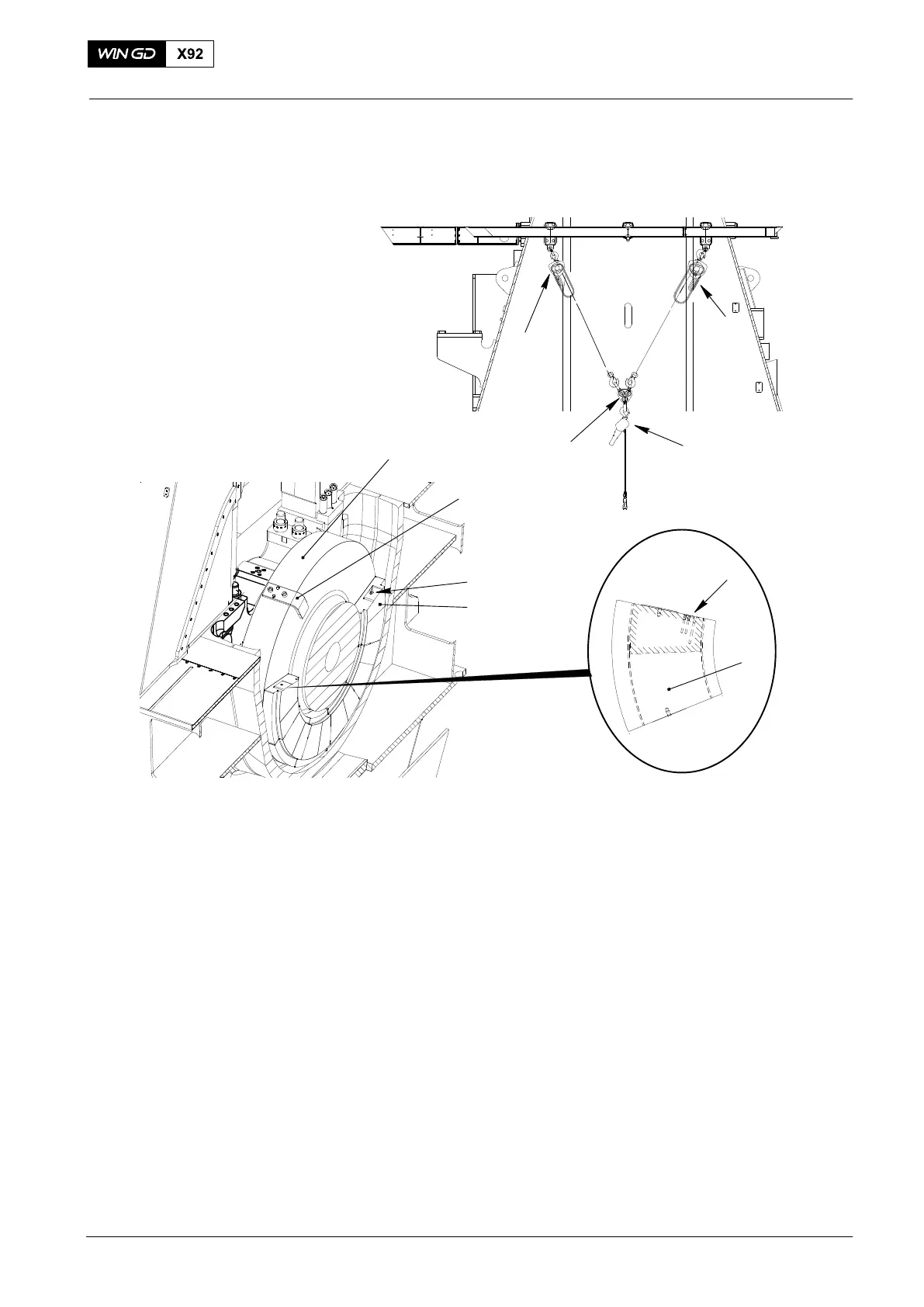

Fig. 3
H1
H3
H2
94321
WCH02906
94155A
1
2
94045−M12
2
3
WCH02906
10) Remove the temperature sensors (1) from the thrust pad (2).
11) Install the carrier (94155A) on the gear wheel (3) as shown.
12) Attach the eye bolt (94045-M12) to the thrust pad (2).
2015
Thrust Bearing Pads − Removal and Installation
