WinGD X92 - Page 260

Maintenance3303−2/A2
Winterthur Gas & Diesel Ltd.
4/ 12
9) Attach the shackle (94019G, Fig. 3) to
the support (94116D).
10) Attach the manual ratchet (H3) to the
shackle (94019G) and the shackle
(94019L).
11) Operate the manual ratchets (H2, H3)
to move the bearing cover to the
position shown.
12) Attach the shackle (94019G, Fig. 4) to
the support (94116D).
13) Attach the manual ratchet (H6) to the
shackle (94019G).
14) Operate carefully the manual ratchets
(H2, H3 and H6) to move the bearing
cover to the fuel side until the bearing
cover is below the support (94116D).
2017
Bottom End Bearing − Removal, Inspection and Installation

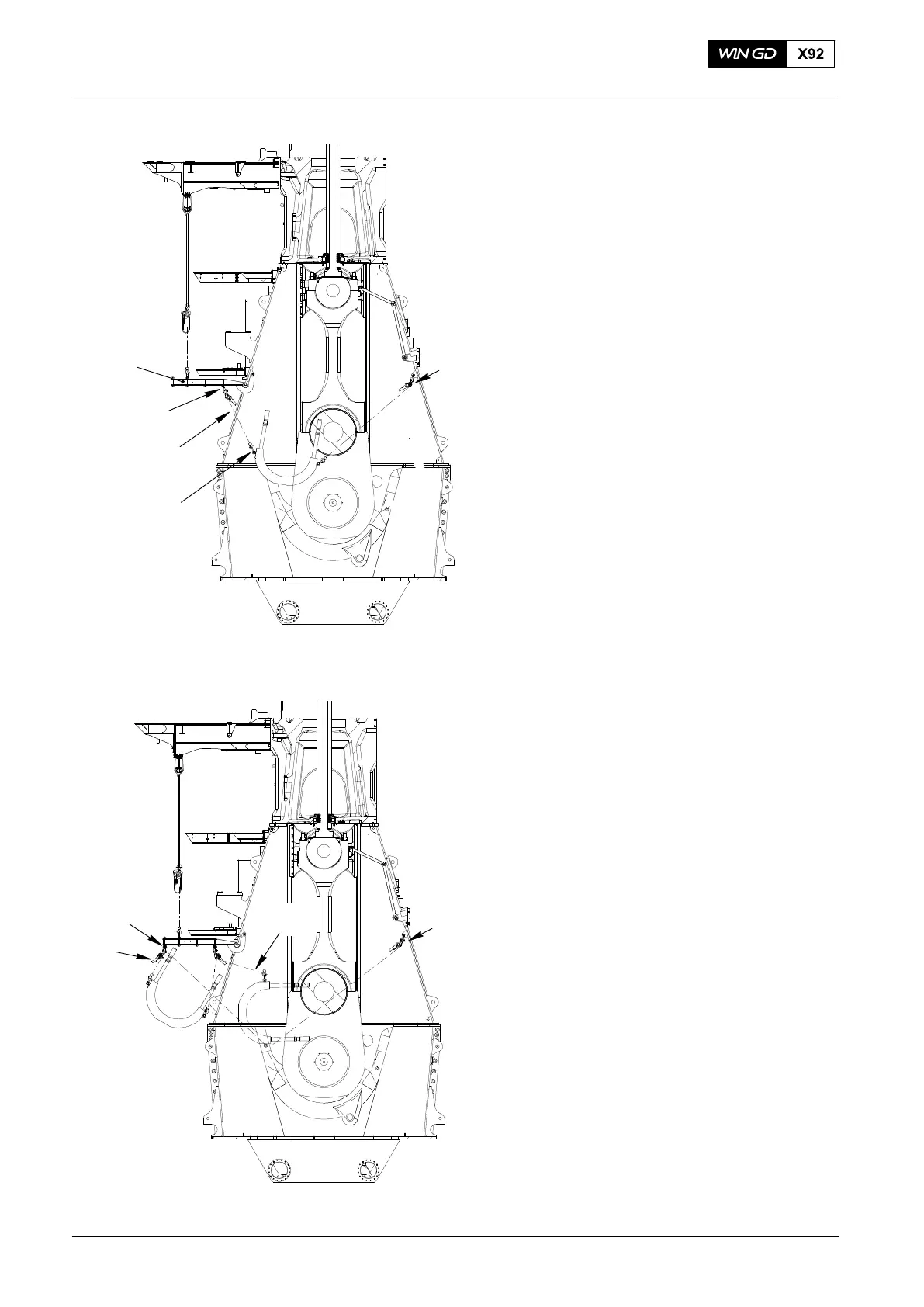

Fig. 3
H2
H3
94016D
94019G
94019L
94019G
H6
H3
H2
Fig. 4
WCH03783
WCH03783
