15) Remove the manual ratchets (H2, H3).
16) Operate the manual ratchet (H6) to
lower the bearing cover on to an
applicable wooden support.
17) Remove the support (94116D, Fig. 2)
as follows:
a) Attach the sling (94039−002) to
the support (94116D).
b) Attach the chain block (H4) to the
shackle (94019K) and the sling
(94039−002).
c) Make sure that the chain blocks
(H1, H4) hold the weight of the
support (94116D).
d) Remove the pin (2).
e) Operate the chain blocks (H1, H4)
to lower the support (94116D) on
to an applicable surface.
f) Remove the support from the sling
(94039−002) and the chain
block (H1).
g) Remove the chain block (H4) from
the shackle (94019K).
3. Bearing Shell −
Removal
1) Remove the two screws (1, Fig. 6).
2) Install the four eye bolts (94045-M10).
3) Attach chain (94327) to the four eye
bolts (94045-M8).
4) Attach a manual ratchet to the chain.
5) Lift the bearing shell (3) from the
bearing cover (2).
6) Lower the bearing shell (3) on to an
applicable wooden support.
2017
Bottom End Bearing − Removal, Inspection and Installation
94019G
H6
H2

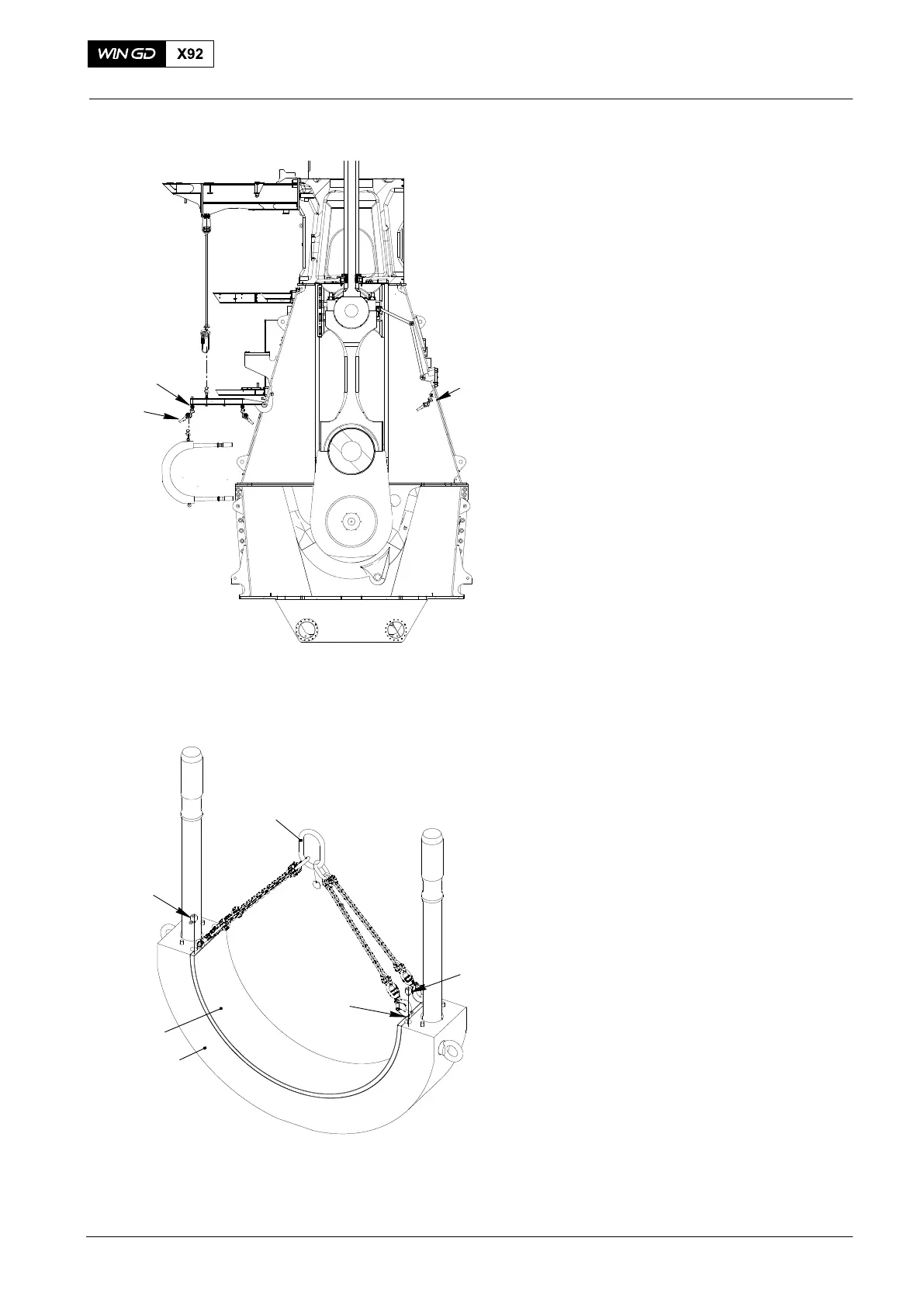

Fig. 5
