Maintenance3326−2/A1
Winterthur Gas & Diesel Ltd.
8/ 13
64) Attach the deviation pipe (94319,
Fig. 17) to the support on the gallery.
65) Attach the sling (94039-057) around
the beam in the gallery.
66) Attach the chain block (H4) to the
round sling (94039-057).
67) Turn the crosshead pin (1) 90_.
Note: When you do the steps below,
keep the tension on the chain
block (H5).
68) Operate carefully the chain blocks (H5
and H4) to move the crosshead pin (1)
from the engine to the fuel side.
69) Lower the crosshead on to an
applicable wooden underlay.
70) Remove the chain block (H5) from the
lifting device (94324) on the crosshead
pin (1).
Note: As an alternative, you can use the
trolley (94015-008, Fig. 17) to move
the crosshead pin (1).
2016−10
Crosshead Pin − Removal / Installation / Clearance Checks

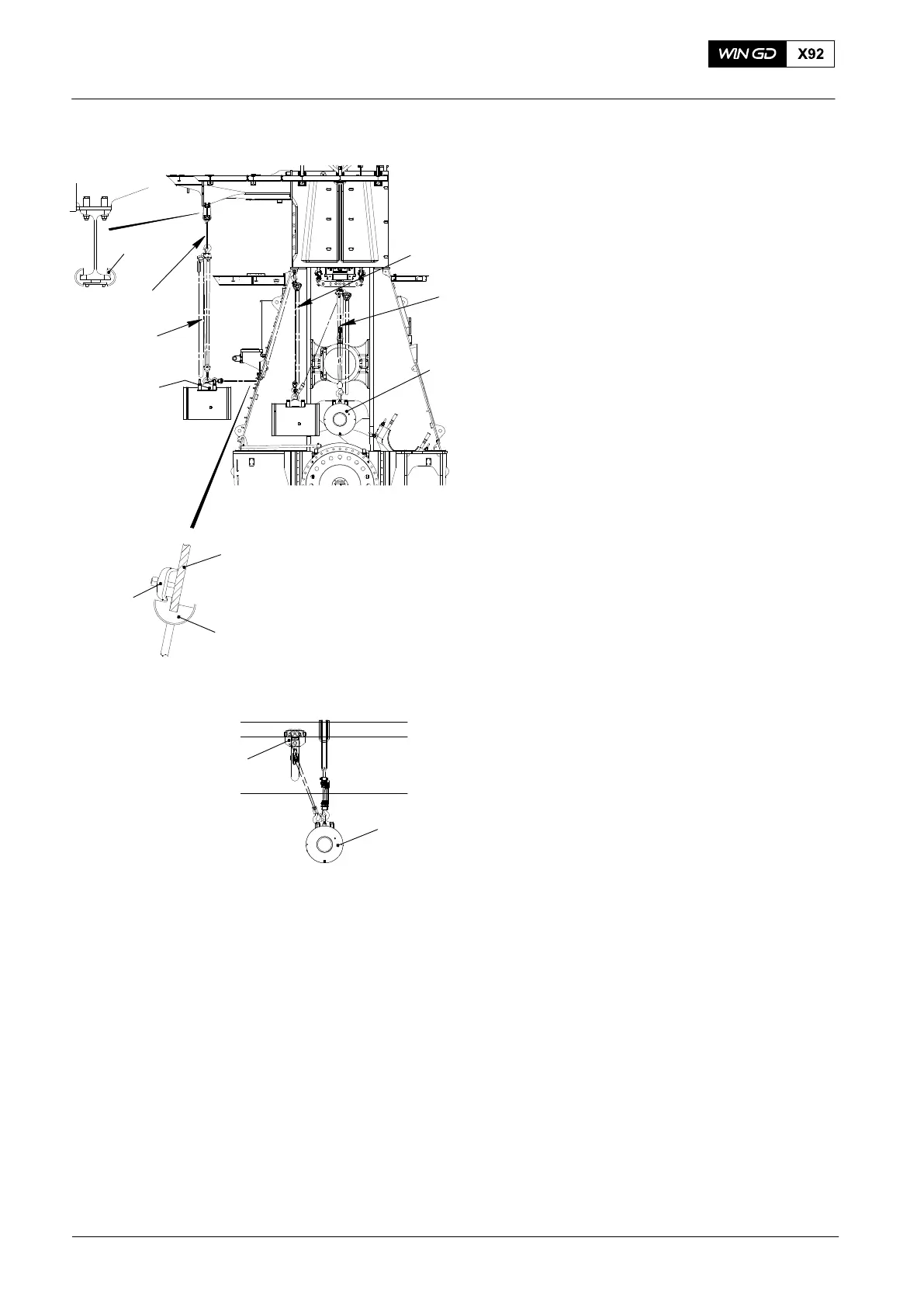

Fig. 17
94319
H4
94039-057
1
H5
H8
Door Frame
Clamp
94324
1
94015-008
WCH03035
94117B
