Maintenance3326−2/A1
Winterthur Gas & Diesel Ltd.
10/ 13
4. Guide Shoes −
Installation
Note: When you do the steps below,
make sure that you install the
guide shoes in their original
positions.

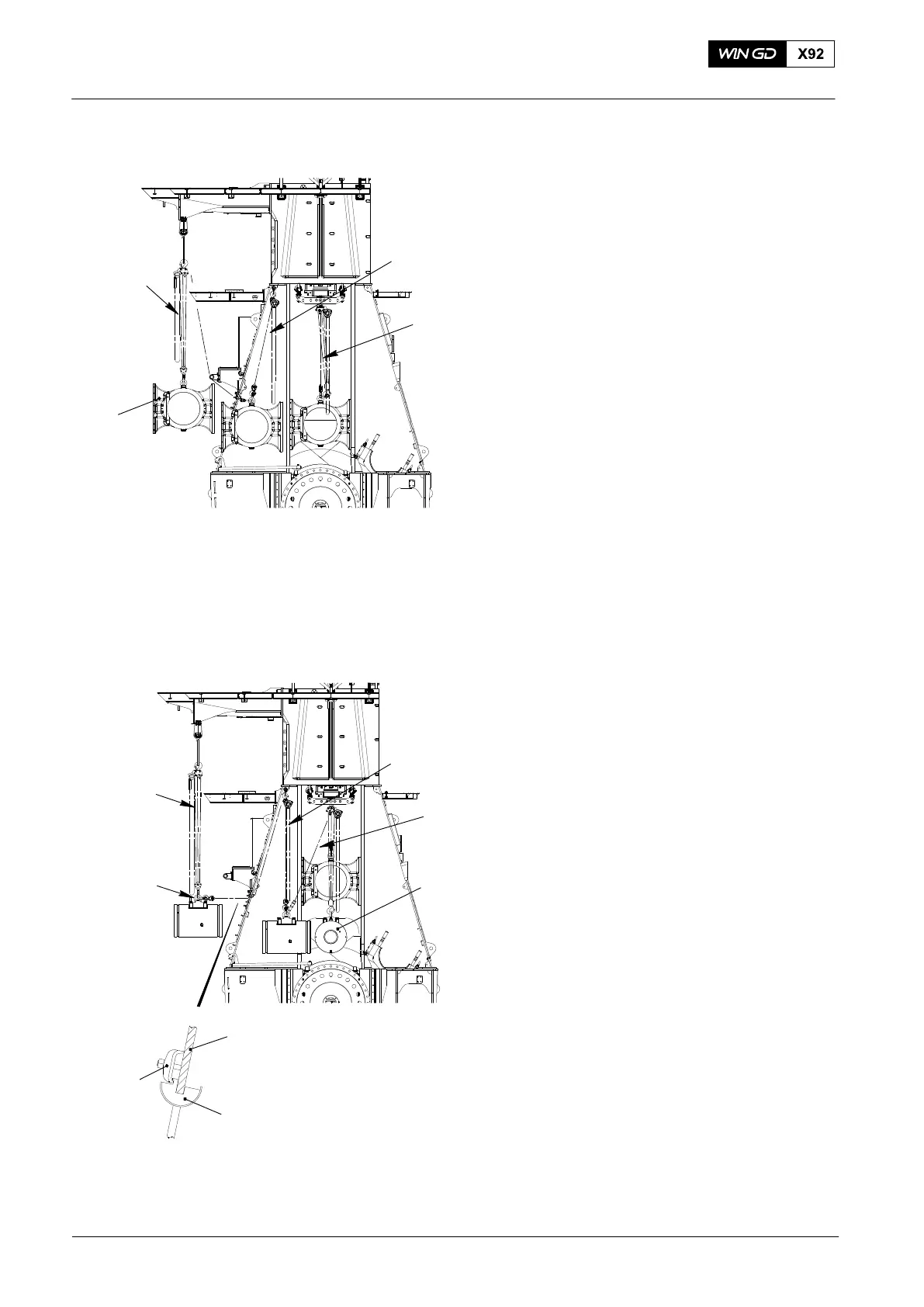

1) Attach the chain block (H4, Fig. 20) to
the eye bolt on the guide shoe.
Note: When you steps 2) to 5) keep the
tension on the chain block (H3 or
H8) and the chain block (H9).
2) Move the guide shoe (1) through the
door frame as follows:
a) Attach the chain block (H9) to the
eye bolt on the guide shoe.
b) Tighten the chain block (H9). At
the same time, loosen carefully
the chain block (H4) until the
guide shoe is in the correct
position.
3) Attach the chain block (H3 or H8) to the
guide shoe (1 or 2).
4) Remove the chain blocks (H4, H9) from
the guide shoe (1 or 2).
5) Operate the chain block (H3 or H8) to
lift the guide shoe (1 or 2).
6) Do step 1) to step 5)for the other guide
shoe.
5. Crosshead Pin −
Installation
1) Clean the crosshead pin and all guide
and bearing surfaces.
2) Make sure that the surfaces of the
crosshead pin are clean and have no
damage.
3) Apply bearing oil to the crosshead pin
and all guide and bearing surfaces.
4) Attach the chain block (H4 and H9,
Fig.21) to the eye bolt on the lifting tool
(94324).
5) Operate the chain blocks (H4, H9) to lift
the crosshead pin to the applicable
height.
2016−10
Crosshead Pin − Removal / Installation / Clearance Checks
H3 or
H4
H9
1 or 2
Fig. 20
Fig. 21
H4
1
H5
H9
94324
Door Frame
Clamp
WCH03035
H8
94117B
