WinGD X92 - Page 328

Maintenance3403−1/A1
Winterthur Gas & Diesel Ltd.
6/ 6
20) Put oil on the four bolts (2,Fig.3).
21) Attach the piston rod gland (2, Fig.4) in
the cylinder block with the four bolts
(2, Fig.3) and new locking plates.
22) Torque the four bolts (2, Fig.3) to
150 Nm.
23) Bend the locking plates to lock the
bolts.
24) Remove the distance holders (94230,
Fig.12).
25) Tighten the round nuts (1) on the piston
rod foot (2), refer to 9403−4.
26) Make sure that the cylinder liner and
the antipolishing ring are clean and in a
satisfactory condition.
27) Put oil on the surfaces of antipolishing
ring.
28) Connect the crane hook to the lifting
tool (94209, Fig.13).
29) Attach the four plates (1) to the
antipolishing ring (2) with the four
screws (3).
30) Put the antipolishing ring (2) into the
cylinder liner.
31) Remove the lifting tool (94209).
32) Remove all tools and equipment from
the work area.
2015

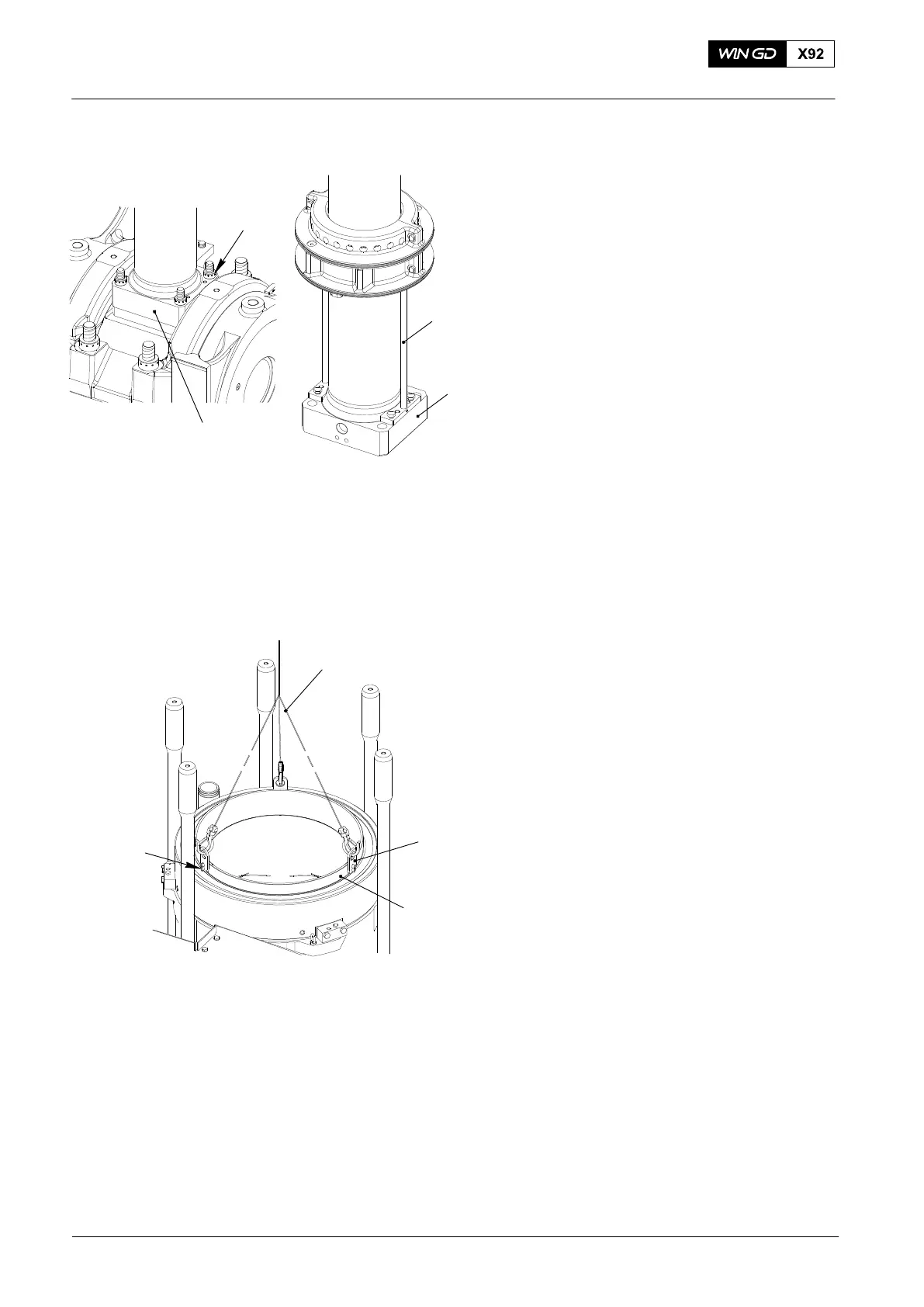

Piston: Removal and Installation
Fig. 12
1
2
94230
2
Fig. 13
94209
1
2
3
WCH02943
WCH02943
